Pitco SSHLV (ROV) Gas Fryers
3.2 Auto Filtration Boards
All fryers in this series have an Auto-Filtration Board (AFB) located in the component box behind the
control bezel. The AFB provides a “bus” between the controller and the fryer's individual components
without requiring additional wiring by using a communication protocol over a twisted pair, and allows the
controller to execute commands from one central point. The heat control circuit is show below in Figure
1. This is the bottom left corner of the AFB. For a split vat, this is duplicated on the bottom right hand
corner.

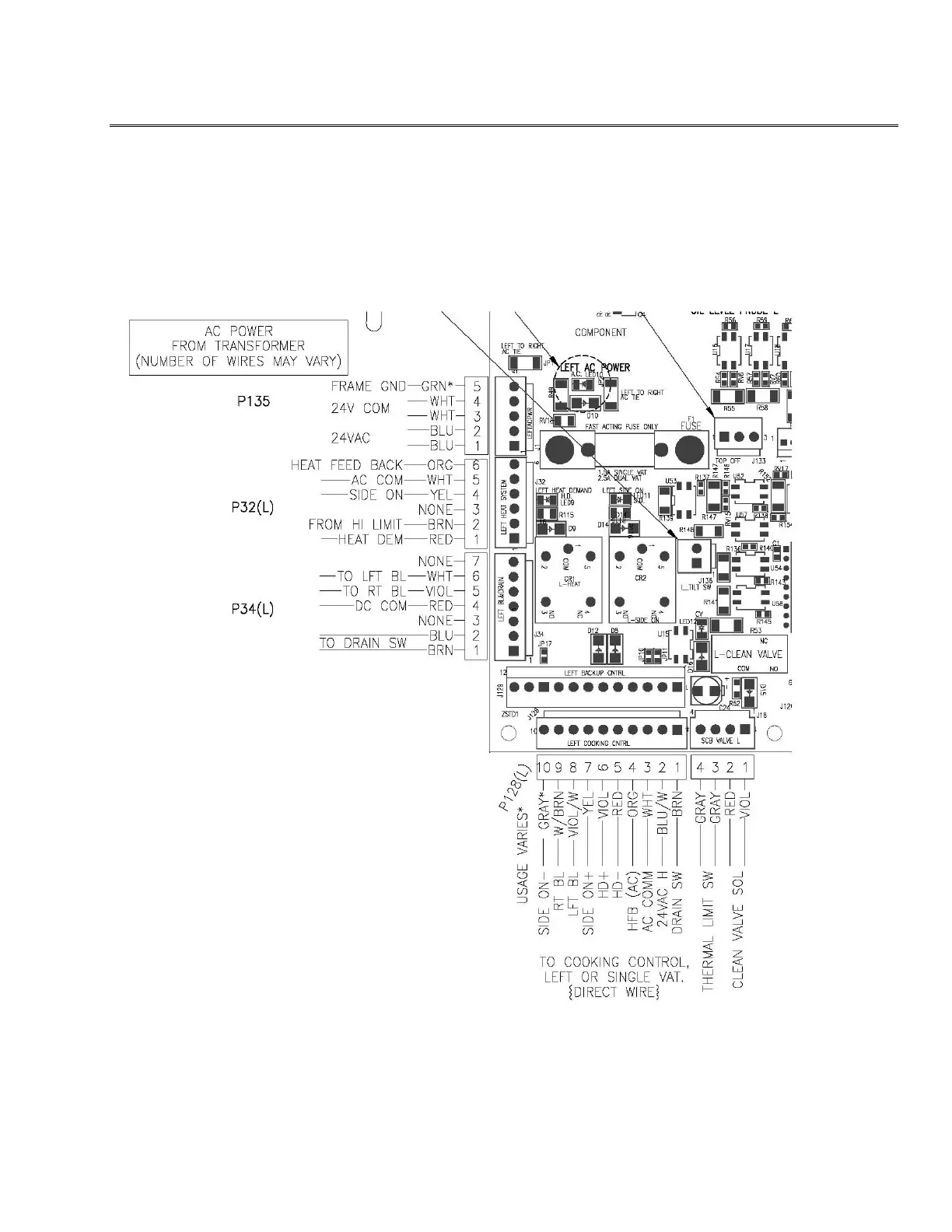

Figure 1 - Bottom left corner of Auto Filtration Board
L22-392 R1 12
