Pitco SSHLV (ROV) Gas Fryers
10 Replacing the Ignition Module and Hi-Limit
Prior to moving, testing, maintaining or repairing
any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electrical
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

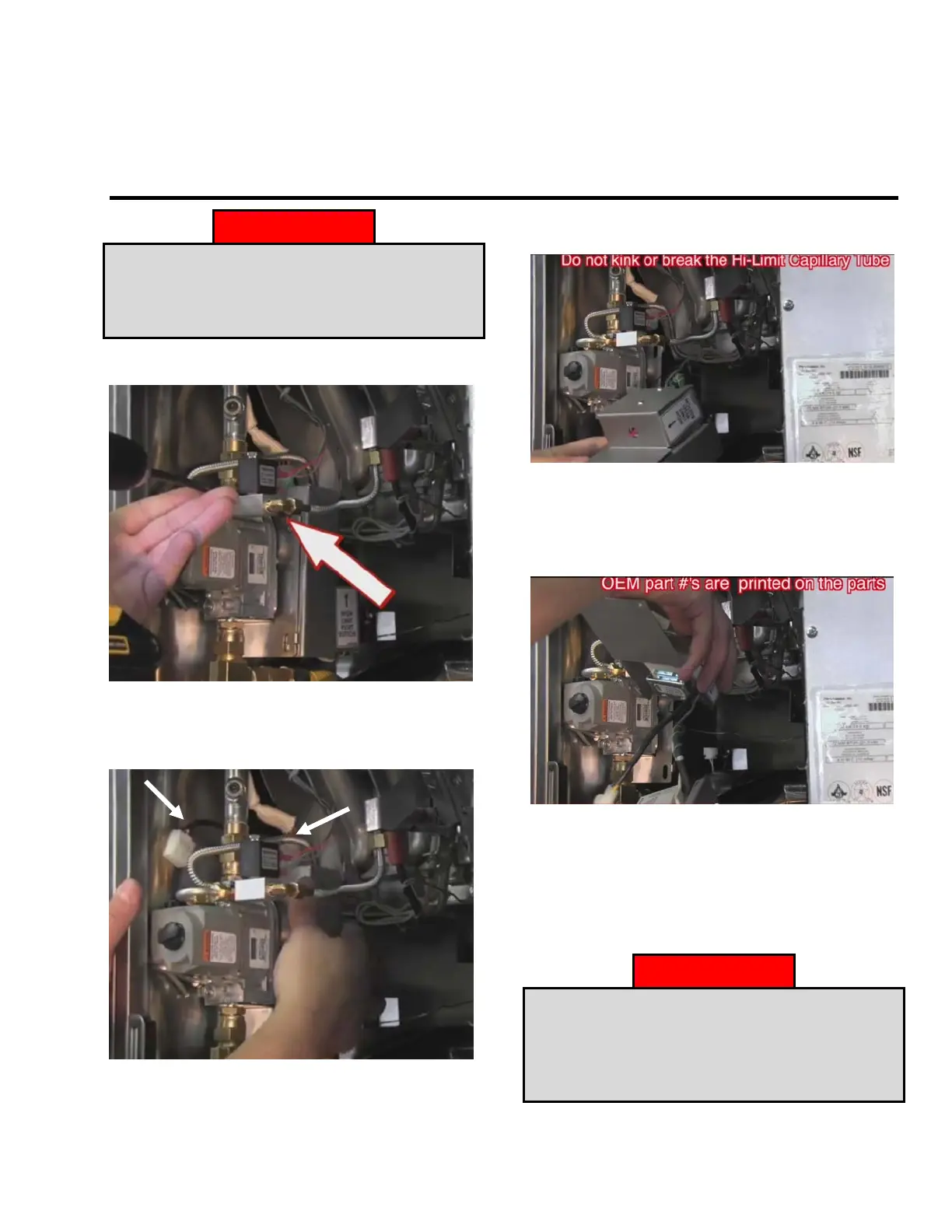

1. Remove one (1) screw, which holds the
ignition module using a 5/16 inch socket.
2. Remove 3 pin connector and 9 pin connector
on top of the box. You may have to support the
wiring to avoid tangling in the gas lines.
3. Lift the ignition box up and back towards the
burners.
4. To open the ignition module box remove (2)
two 5/16” screws that hold the cover plate on
and slide the plate up to gain access to the
ignition module. You now have access to
ignition box or hi-limit to either test or replace.
5. Follow steps 1 through 4 in reverse order to
5. Reinstall ignition module and hi-limit
assembly. The box has 4 mounting tabs. Make
sure the tabs are mounted correctly or the box
will not seat properly when re-assembled.
6. Test for proper operation once job is
complete.
DANGER
Check for gas leaks after installation or servicing
of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.
