Pitco SSHLV (ROV) Gas Fryers

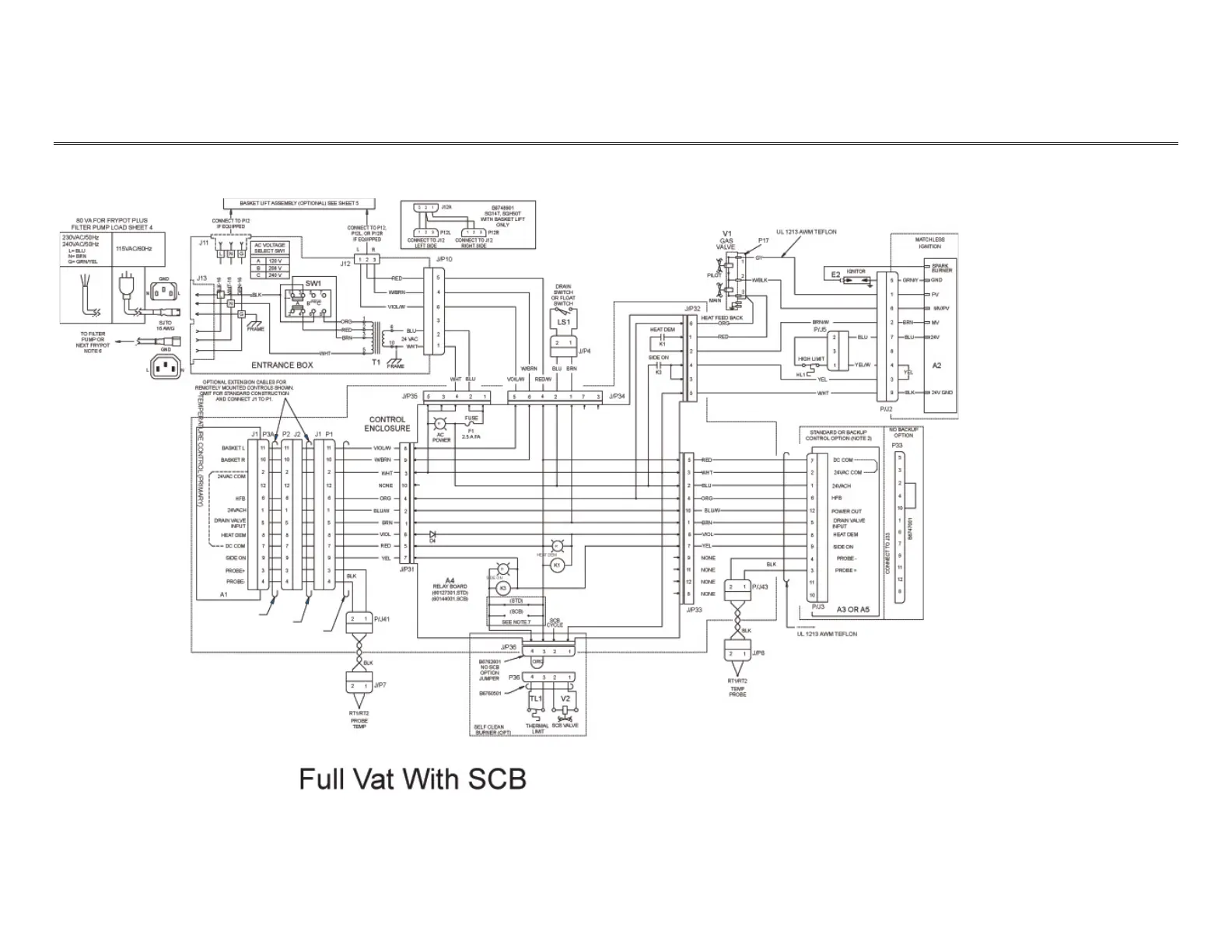

35.8 Wiring Diagram – Full Vat with SCB

L22-392 Rev 1 86

Table of Contents

1 Notice5
- Table of Contents6
2 General8
- Serial Numbers9
- Safety Information10
  - Installation, Operating, and Service Personnel10
- Definitions10
  - Qualified And/Or Authorized Operating Personnel10
  - Qualified Installation Personnel10
- Shipping Damage Claim Procedure11
3 Theory of Operation11
- The Matchless Ignition System11
- Auto Filtration Boards12
- Thermostats14
- Fryer Sequence Operation14
- Heating System14
- Safety System15
- Filter System (Manual Filtration Only)15
- Basket Lift (Optional)16
- Auto Top off - ATO (Optional)16
- Automated Filtration (Optional)17
4 Accessing Fryer for Servicing18
5 Replacing the Controllers19
- Removing the Controller Front Panel Bezel19
6 Manual Operation of Drain and Return (Auto Filter Only)20
7 Blocked Drain (Auto Filter Only)21
- Replacing the Relay Board and Paper22
8 Checking Resistance23
- Checking the Resistance of the Transformer23
- Diagram Identifying Terminals for Second Resistance24
- Checking the Resistance of the DVI Switch24
- Checking the Resistance of the Hi-Limit25
- Checking the Resistance of the Temperature Probe26
9 Replacing Temperature Probe27
10 Replacing the Ignition Module and Hi-Limit29
11 Replacing an Igniter/Pilot Assembly30
12 Replacing Drain Valve with Actuator (Auto Filter Only)31
13 Replacing the DC Power Supply33
14 Replacing Transformer/Power Box34
15 Changing Filter Pump Actuator35
16 Testing the Auto Top off Probe (if Equipped)36
17 Replacing the Auto Top off Probe (if Equipped)38
18 Gas Conversion40
19 Replacing the Return Valve41
20 Replacing the Optional Flush Hose Assembly and Valve42
21 Replacing the Waste Oil and Components45
- Removing Rear Mounting Bracket45
- Removing the Check Valve46
22 Removing the Filter Pump from the Motor48
- Replacing Seal Kit48
23 Replacing the Drain Line or Gasket49
24 Replacing the Pump Relay and Circuit Breaker50
- Replacing the Circuit Breaker50
- Replacing the Pump Relay51
25 Cleaning the Gas Valve Vent Tube52
26 Checking the Gas Pressure53
- Taking a Supply Gas Pressure Reading53
- Taking a Manifold Gas Pressure Reading55
- Adjusting Manifold Gas Pressure56
- Adjusting Pilot Flame56
27 Replacing the Self-Cleaning Burner Solenoid57
28 Replacing the Gas Valve58
29 Replacing the DVI Switch (Manual Filter Only)60
30 Replacing the Burner Assembly61
- Replacing the Burner(S)61
- Replacing the Burner Assembly63
31 Replacing the Frypot64
32 Replacing the Basket Lift Components68
- Removing the Basket Lift Cover68
- Replacing the Basket Lift Transformer68
- Replacing the Basket Lift Driver Board69
- Adjusting the Magnetic Sensor70
- Replacing the Basket Lift Actuator70
33 Replacing the Filter Pump and Motor72
- Removing the Filter Pump and Motor72
34 Information Charts/Tables75
- Temperature Probe Resistance Chart76
- Orifice Size Chart77
- Orifice Size at Sea Level Chart78
35 Simplified Wiring Diagrams79
- Wiring Diagram - Heat Control Wiring Left & Right (ROV)79
- Wiring Diagram - Auto Filter Board (AFB2) Wiring (ROV)80
- Wiring Diagram - Connector Locations Detail AFB2 W/Jib & no Bulk Oil Option (ROV)81
- Wiring Diagram - Calibration Test Points and Indicators (ROV)82
- Wiring Diagram - AC & DC Control Voltage Supplies (ROV)83
- Wiring Diagram - Basket Lift Option & Connector Locations (ROV)84
- Wiring Diagram - Filter Pump Options 208V-240V (ROV)85
- Wiring Diagram - Full Vat with SCB86
- Wiring Diagram - Basket Lifts87
- Wiring Diagram - Filter Motor 115V-60Hz88
- Wiring Diagrams - Filter Motor 208-240V89
