Pitco SSHLV
(ROV) Gas Fr
yers
5.

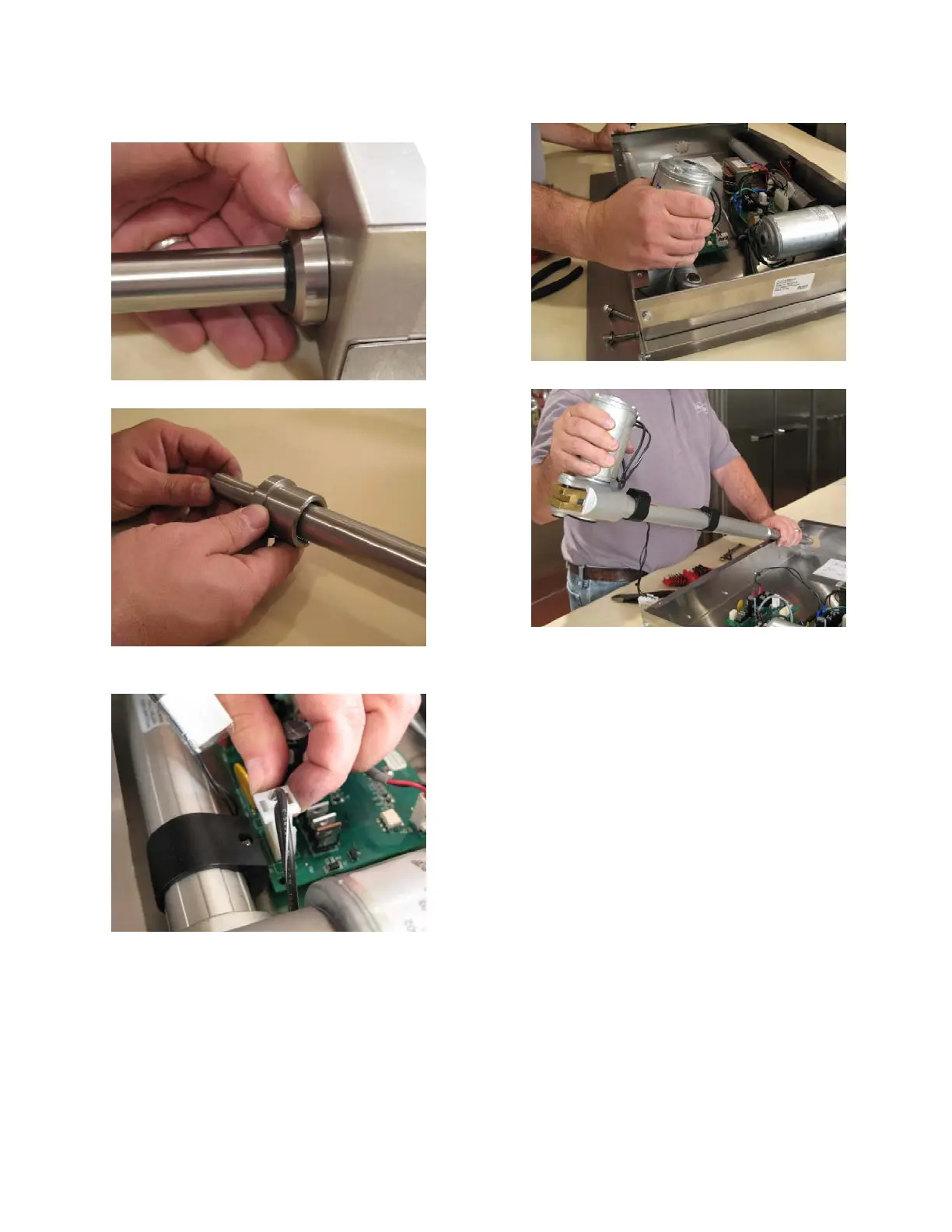

Remove the top retaining bushing by
unscrewing.
6.
Slide the bushing off the shaft.
7.
Disconnect the motor connector from the
driver board.
8.
Rotate up the actuator collar
.
9.
Remove the
actuator collar
.
10.
Follow steps 1 through 9 in reverse to
reinstall a new basket lift actuator.
L22
-
392 Rev
1
71
70
72
Table of Contents
1 Notice
5
Table of Contents
6
2 General
8
Serial Numbers
9
Safety Information
10
Installation, Operating, and Service Personnel
10
Definitions
10
Qualified And/Or Authorized Operating Personnel
10
Qualified Installation Personnel
10
Shipping Damage Claim Procedure
11
3 Theory of Operation
11
The Matchless Ignition System
11
Auto Filtration Boards
12
Thermostats
14
Fryer Sequence Operation
14
Heating System
14
Safety System
15
Filter System (Manual Filtration Only)
15
Basket Lift (Optional)
16
Auto Top off - ATO (Optional)
16
Automated Filtration (Optional)
17
4 Accessing Fryer for Servicing
18
5 Replacing the Controllers
19
Removing the Controller Front Panel Bezel
19
6 Manual Operation of Drain and Return (Auto Filter Only)
20
7 Blocked Drain (Auto Filter Only)
21
Replacing the Relay Board and Paper
22
8 Checking Resistance
23
Checking the Resistance of the Transformer
23
Diagram Identifying Terminals for Second Resistance
24
Checking the Resistance of the DVI Switch
24
Checking the Resistance of the Hi-Limit
25
Checking the Resistance of the Temperature Probe
26
9 Replacing Temperature Probe
27
10 Replacing the Ignition Module and Hi-Limit
29
11 Replacing an Igniter/Pilot Assembly
30
12 Replacing Drain Valve with Actuator (Auto Filter Only)
31
13 Replacing the DC Power Supply
33
14 Replacing Transformer/Power Box
34
15 Changing Filter Pump Actuator
35
16 Testing the Auto Top off Probe (if Equipped)
36
17 Replacing the Auto Top off Probe (if Equipped)
38
18 Gas Conversion
40
19 Replacing the Return Valve
41
20 Replacing the Optional Flush Hose Assembly and Valve
42
21 Replacing the Waste Oil and Components
45
Removing Rear Mounting Bracket
45
Removing the Check Valve
46
22 Removing the Filter Pump from the Motor
48
Replacing Seal Kit
48
23 Replacing the Drain Line or Gasket
49
24 Replacing the Pump Relay and Circuit Breaker
50
Replacing the Circuit Breaker
50
Replacing the Pump Relay
51
25 Cleaning the Gas Valve Vent Tube
52
26 Checking the Gas Pressure
53
Taking a Supply Gas Pressure Reading
53
Taking a Manifold Gas Pressure Reading
55
Adjusting Manifold Gas Pressure
56
Adjusting Pilot Flame
56
27 Replacing the Self-Cleaning Burner Solenoid
57
28 Replacing the Gas Valve
58
29 Replacing the DVI Switch (Manual Filter Only)
60
30 Replacing the Burner Assembly
61
Replacing the Burner(S)
61
Replacing the Burner Assembly
63
31 Replacing the Frypot
64
32 Replacing the Basket Lift Components
68
Removing the Basket Lift Cover
68
Replacing the Basket Lift Transformer
68
Replacing the Basket Lift Driver Board
69
Adjusting the Magnetic Sensor
70
Replacing the Basket Lift Actuator
70
33 Replacing the Filter Pump and Motor
72
Removing the Filter Pump and Motor
72
34 Information Charts/Tables
75
Temperature Probe Resistance Chart
76
Orifice Size Chart
77
Orifice Size at Sea Level Chart
78
35 Simplified Wiring Diagrams
79
Wiring Diagram - Heat Control Wiring Left & Right (ROV)
79
Wiring Diagram - Auto Filter Board (AFB2) Wiring (ROV)
80
Wiring Diagram - Connector Locations Detail AFB2 W/Jib & no Bulk Oil Option (ROV)
81
Wiring Diagram - Calibration Test Points and Indicators (ROV)
82
Wiring Diagram - AC & DC Control Voltage Supplies (ROV)
83
Wiring Diagram - Basket Lift Option & Connector Locations (ROV)
84
Wiring Diagram - Filter Pump Options 208V-240V (ROV)
85
Wiring Diagram - Full Vat with SCB
86
Wiring Diagram - Basket Lifts
87
Wiring Diagram - Filter Motor 115V-60Hz
88
Wiring Diagrams - Filter Motor 208-240V
89
