User’s Manual of FGSD-1022 Series
 Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
LNK/ACT 1000 Green
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
LNK/ACT 10/100
Orange
Lit: indicate that the port is operating at 10/100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.

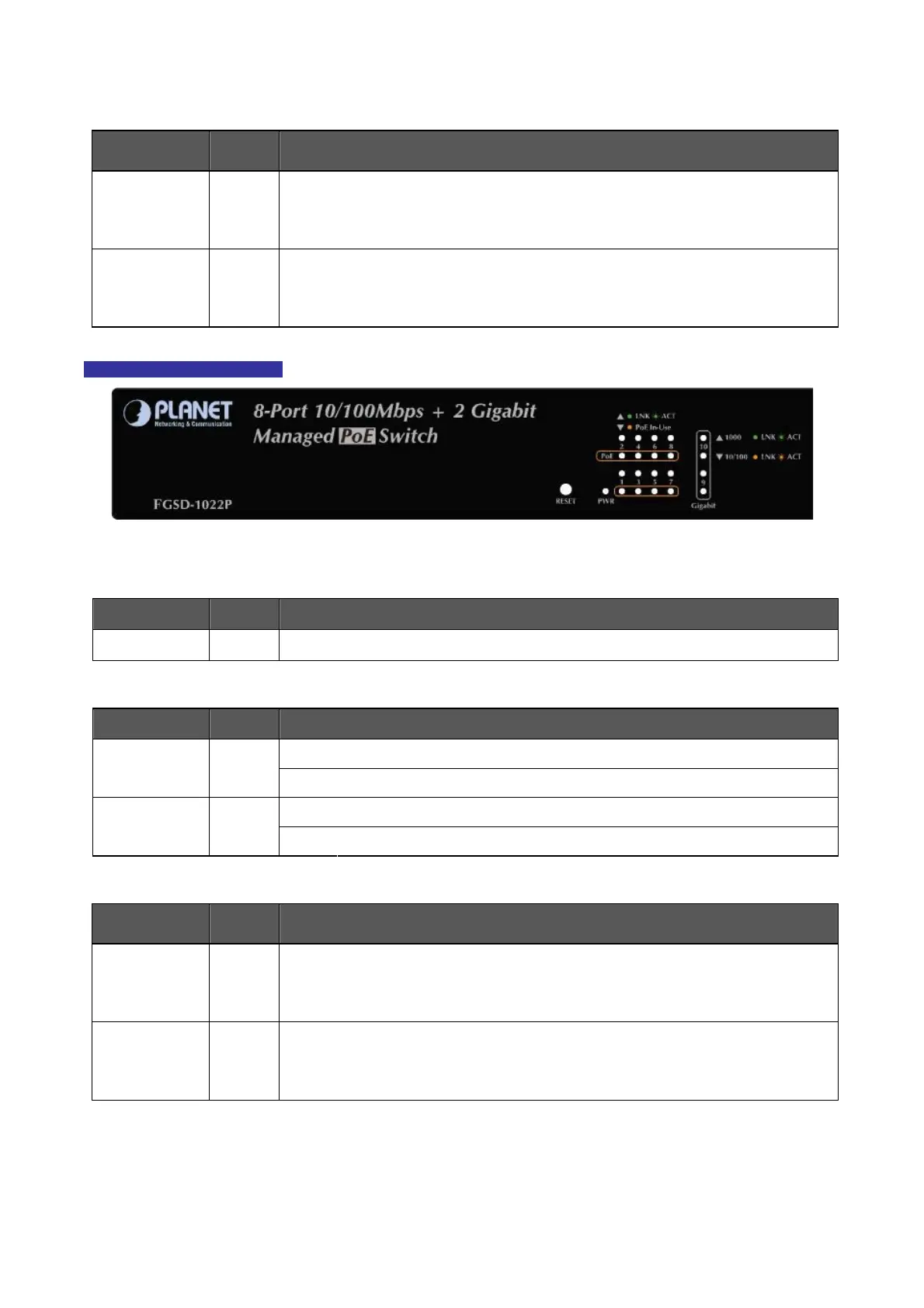

FGSD-1022P LED indication
Figure 2-5: FGSD-1022P LED panel

System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
 Per 10/100Base-TX, PoE interfaces (Port-1 to Por-8)
LED Color Function
Lights:
To indicate the link through that port is successfully established.
LNK/ACT
Green
Blink:
To indicate that the Switch is actively sending or receiving data over that port.
Lights:
To indicate the port is providing 48VDC in-line power.
PoE In-Use
Orange
Off:
To indicate the connected device is not a PoE Powered Device (PD).
 Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
LNK/ACT 1000 Green
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
LNK/ACT 10/100
Orange
Lit: indicate that the port is operating at 10/100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
20
