User’s Manual of FGSD-1022 Series
4.1.3 Main WEB PAGE
The Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to
access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed
Switch’s Web browser interface to configure and manage it.
Copper Port Link Status
37
SFP Port Link Status

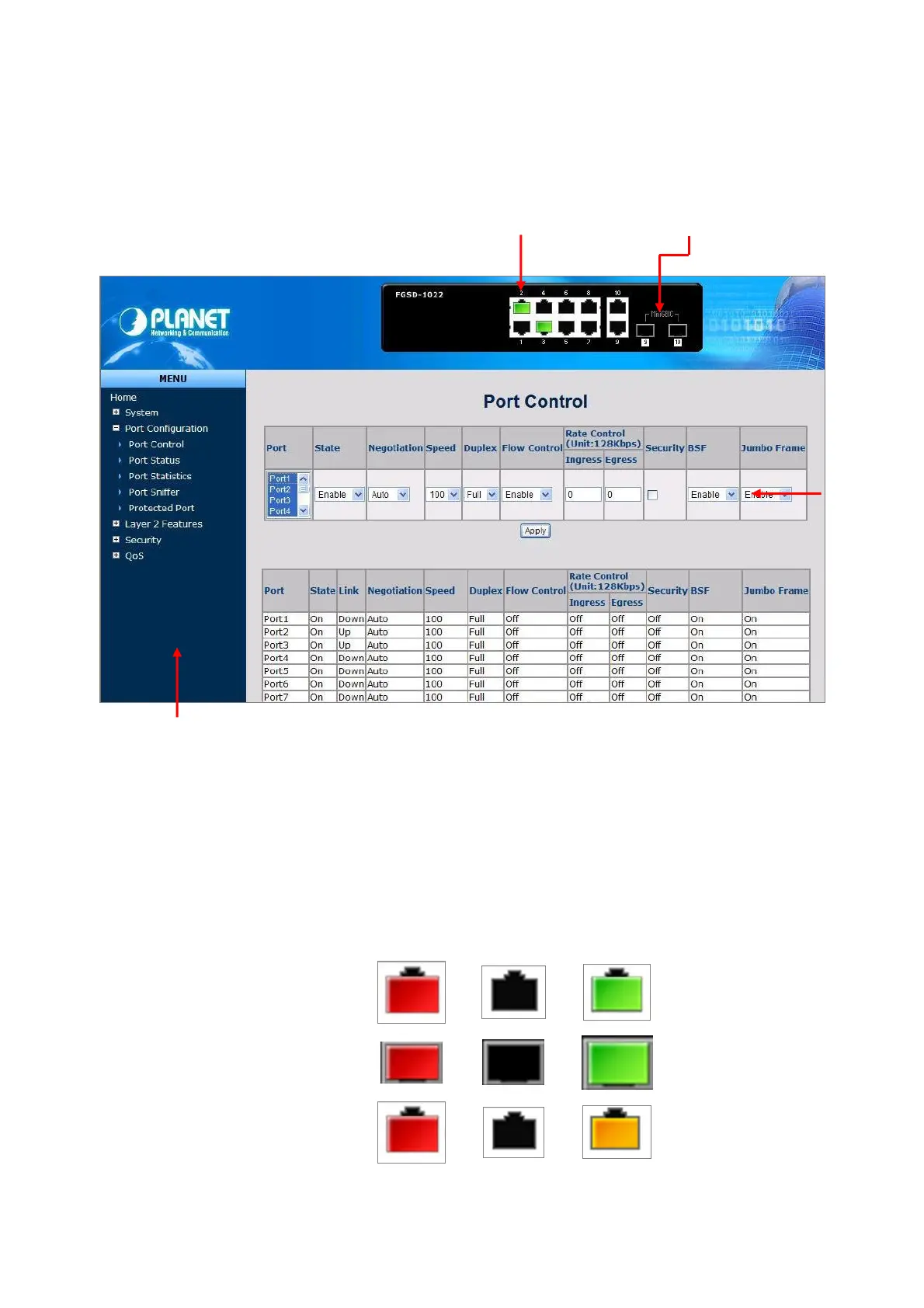

Main Screen
F
igure 4-1-3: Main Page
Main Functions Menu
Panel Display
The web agent displays an image of the Managed Switch’s ports. The Mode can be set to display different information for
the ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port states are illustrated as follows:
State Disabled Down Link
RJ-45 Ports
SFP Ports
PoE Ports
To Next Page
