User’s Manual of FGSD-1022 Series
3.3 Web Management
The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the
network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch,
you can access the Managed Switch’s Web interface applications directly in your Web browser by entering the IP address
of the Managed Switch.

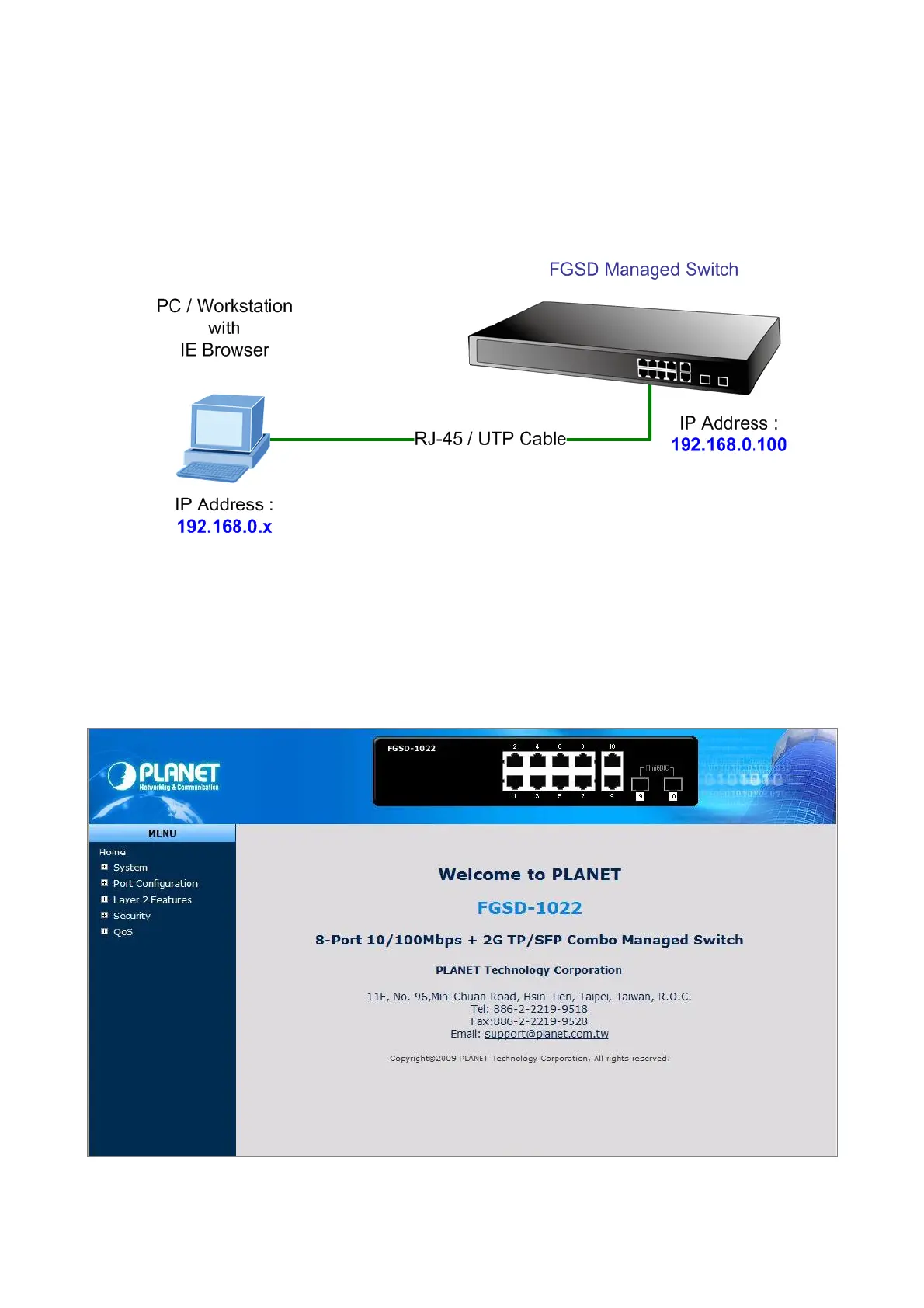

Figure 3-1: Web management
You can then use your Web browser to list and manage the Managed Switch configuration parameters from one central
location, just as if you were directly connected to the Managed Switch’s console port. Web Management requires either
Microsoft Internet Explorer 6.0 or later, Safari or Mozilla Firefox 2.0 or later.
Figure 3-2: Web main screen of Managed Switch
30
