User’s Manual of FGSD-1022 Series
2.2.3 Installing the SFP Transceiver
The sections describe how to insert an SFP transceiver into an SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver to/from any SFP port
without having to power down the Managed Switch. As the Figure 2-12 appears.

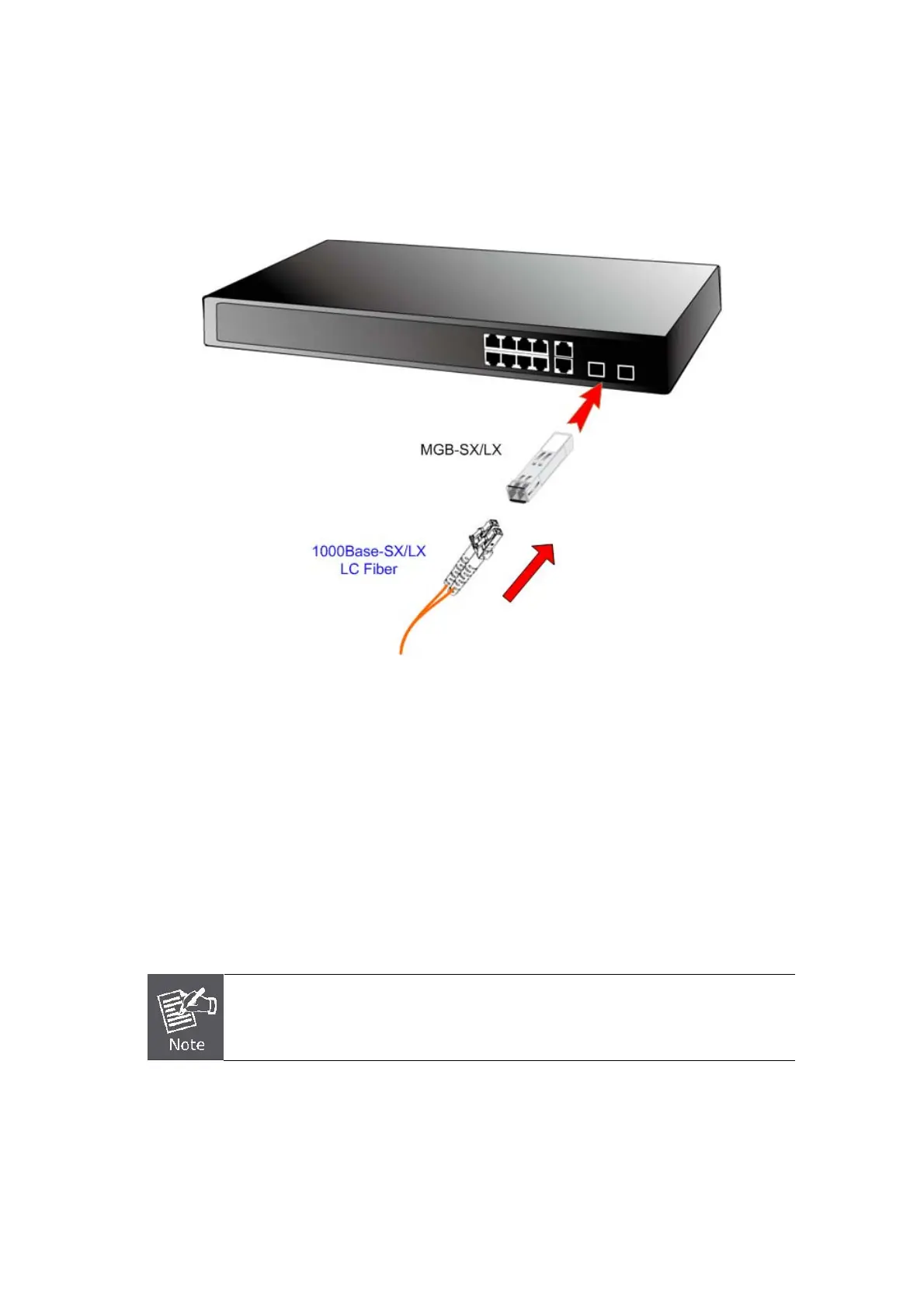

Figure 2-12: Plug-in the SFP transceiver
Approved PLANET SFP Transceivers
PLANET Managed switches supports both single mode and multi mode SFP transceiver. The following list of approved
PLANET SFP transceivers is correct at the time of publication:
1000Base-SX/LX SFP transceiver:
MGB-SX SFP (1000BASE-SX SFP transceiver – Multi mode / 220m)
MGB-LX SFP (1000BASE-LX SFP transceiver – Single Mode / 10km)
MGB-L30 SFP (1000Base-LX SFP transceiver – Single Mode / 30Km)
MGB-L50 SFP (1000Base-LX SFP transceiver – Single Mode / 50Km)
It recommends using PLANET SFPs on the Switch. If you insert a SFP transceiver that is
not supported, the Managed Switch will not recognize it.
Before connect the other switches, workstation or Media Converter.
1. Make sure both side of the SFP transceiver are with the same media type, for example: 1000Base-SX to
1000Base-SX, 1000Bas-LX to 1000Base-LX.
