User’s Manual of FGSD-1022 Series
4.3.5 Port Sniffer
The Port Sniffer (mirroring) is a method for monitor traffic in switched networks. Traffic through a port can be monitored by
one specific port. That is, traffic goes in or out a monitored port will be duplicated into sniffer port.

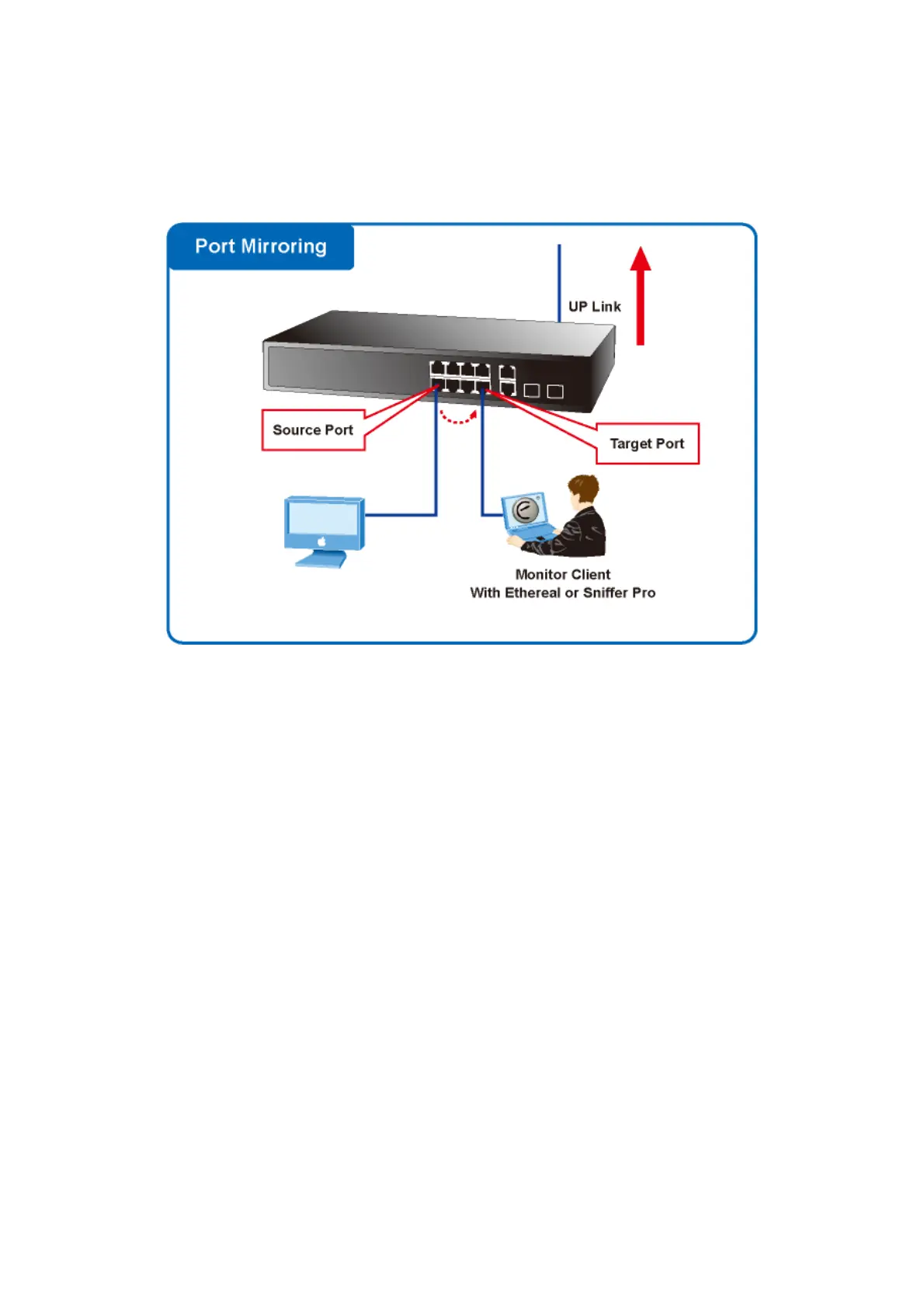

Figure 4-3-5: Port Mirror application
Configuring the port mirroring by assigning a source port from which to copy all packets and a destination port where those
packets will be sent.
66
