User’s Manual of FGSD-1022 Series
Gigabit SFP Slots
Port-9, Port-10: 1000Base-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550 meters
(Multi-mode fiber), up to 10/30/50/70/120 kilometers (Single-mode fiber).
Reset button
At the left of front panel, the reset button is designed for reboot the Managed Switch without turn off and on the power.
The following is the summary table of Reset button functions:
Reset Button Pressed and Released Function
About 1~3 second Reboot the Managed Switch
Until the PWR LED lit off
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as below:
Default Password: admin
Default IP address: 192.168.0.100
Subnet mask: 255.255.255.0
Default Gateway: 192.168.0.254
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity and system power; helps monitor and troubleshoot
when needed.
FGSD-1022 LED indication

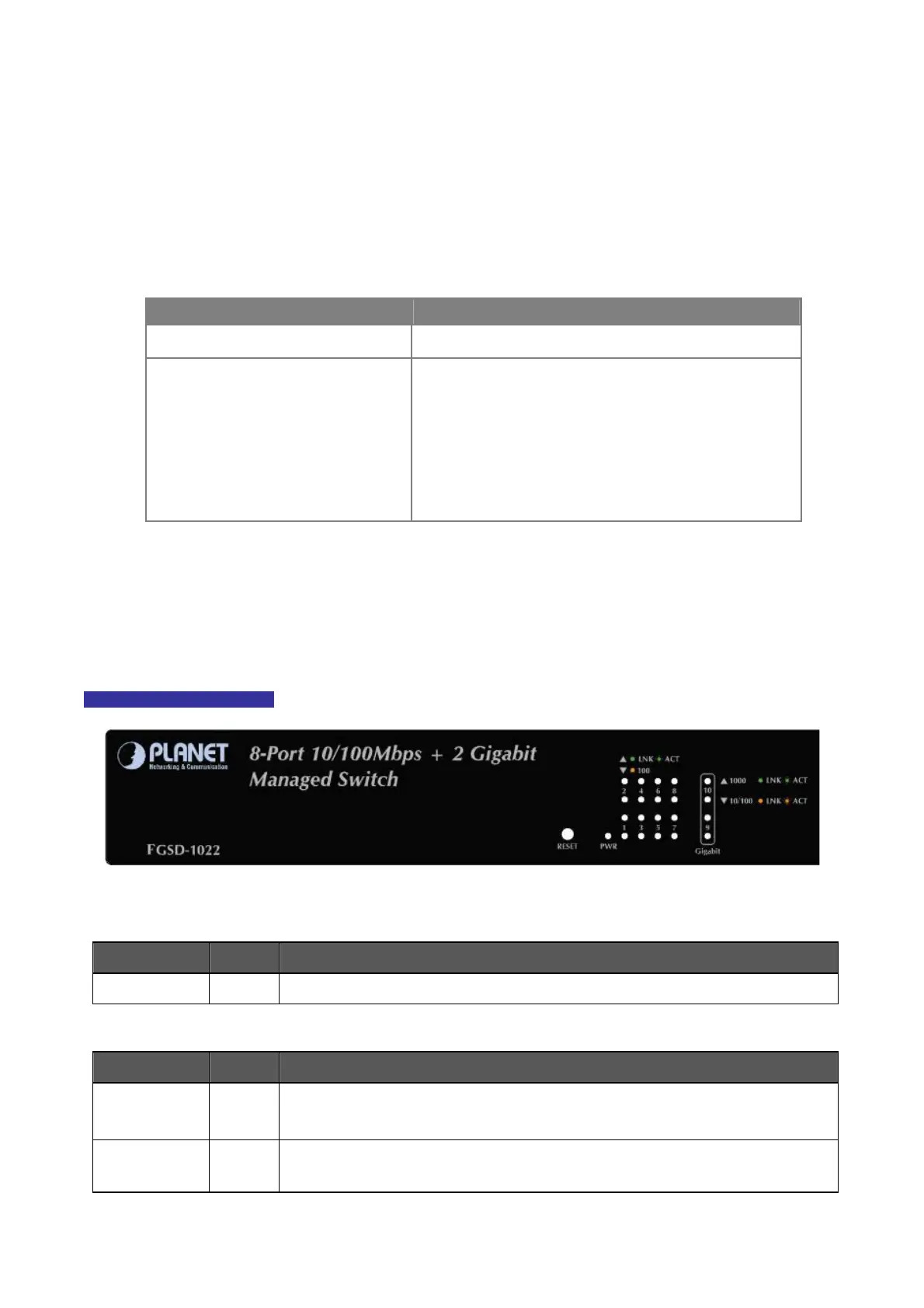

Figure 2-4: FGSD-1022 LED panel
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Base-TX RJ-45 port
LED Color Function
LNK/ACT Green
Lights to indicate the link through that port is successfully established.
Blink to indicate that the Switch is actively sending or receiving data over that port.
100 Orange
Lit: indicate that the port is operating at 100Mbps.
Off: indicate that the port is operating at 10Mbps.
19
