User’s Manual of FGSD-1022 Series
4.3.2 Rate Control
This page provides rate control on each port - it contains Ingress and Egress items and the unit is 128Kbps. The rate control
screen is displayed as in Figure 4-3-2.

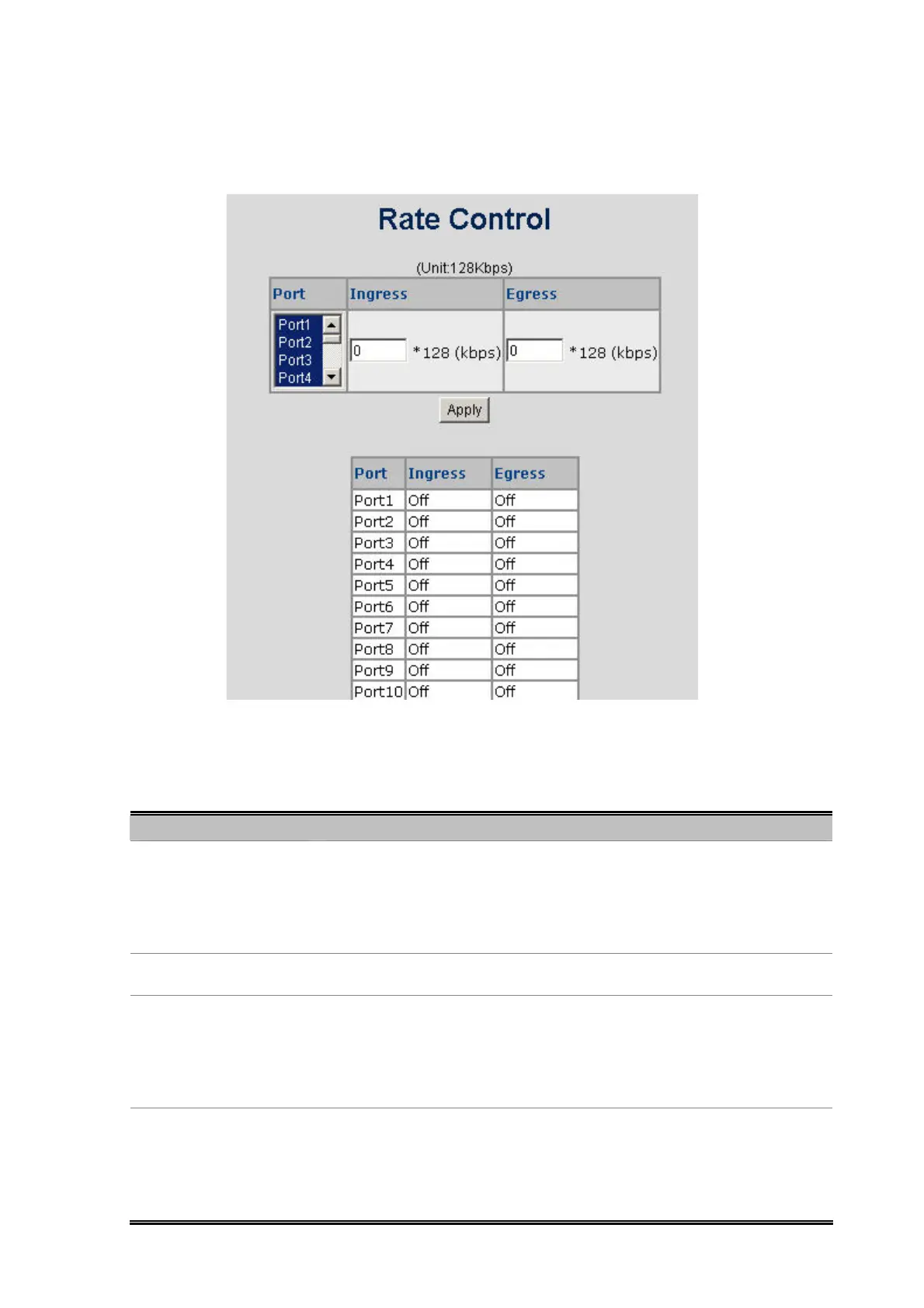

Figure 4-3-2: Rate Control Interface Screenshot
The page includes the following fields:
Object Description
Rate Control:
(Unit: 128KBbps)
Port-1 ~ Port-10, supports by-port ingress and egress rate control.
For example, assume port 1 is 10Mbps, users can set its effective egress rate at
1Mbps and ingress rate at 500Kbps. Device will perform flow control or
backpressure to confine the ingress rate to meet the specified rate.
Port
Allows user to choose which port will be limited rate speed.
Ingress
Type the port effective ingress rate.
The valid range is 0 ~ 8000. The unit is 128K.
0: disable rate control.
1 ~ 8000: valid rate value
Egress
Type the port effective egress rate.
The valid range is 0 ~ 8000. The unit is 128K.
0: disable rate control.
1 ~8000: valid rate value.
63
