User’s Manual of FGSD-1022 Series
The PoE Ports panel display is only for FGSD-1022P and FGSD-1022HP.
Main Menu
Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its
ports, or monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by select
the functions those listed in the Main Function. The screen in Figure 4-1-4 appears.

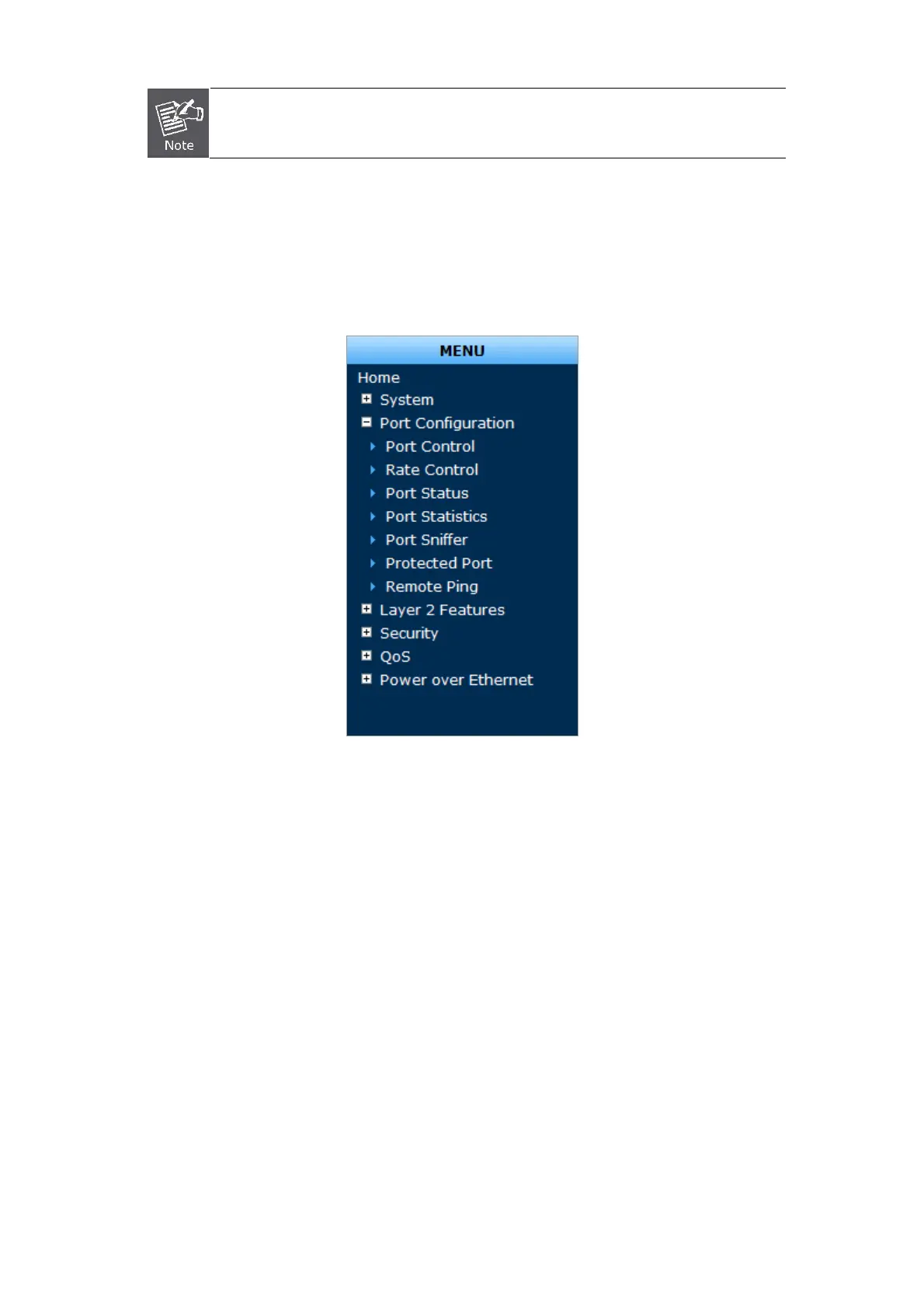

Figure 4-1-4: FGSD Managed Switch Main Functions Menu
4.2 System
Use the System menu items to display and configure basic administrative details of the Managed Switch. Under System the
following topics are provided to configure and view the system information: This section has the following items:
■ System Information Provides basic system description, including contact information.
■ IP Configuration Sets the IP address for management access.
■ SNMP Configuration Configure SNMP agent and SNMP Trap.
■ Firmware Upgrade Upgrade the firmware via TFTP server or Web Brower file transfer.
■ Configuration Backup Save/view the Managed Switch configuration to remote host.
Upload the switch configuration from remote host.
■ Factory Default Reset the configuration of the Managed Switch.
■ System Reboot Restarts the Managed Switch.
38
