User’s Manual of IGSW-24040T
VLAN 3: Port-4, Port-5 and Port-6
VLAN 1: All other ports – Port-7~Port-24
3. Remove VLAN Member for VLAN 1:
Remember to remove the Port 1 – Port 6 from VLAN 1 membership, since the Port 1 – Port 6 had been assigned to
VLAN 2 and VLAN 3.

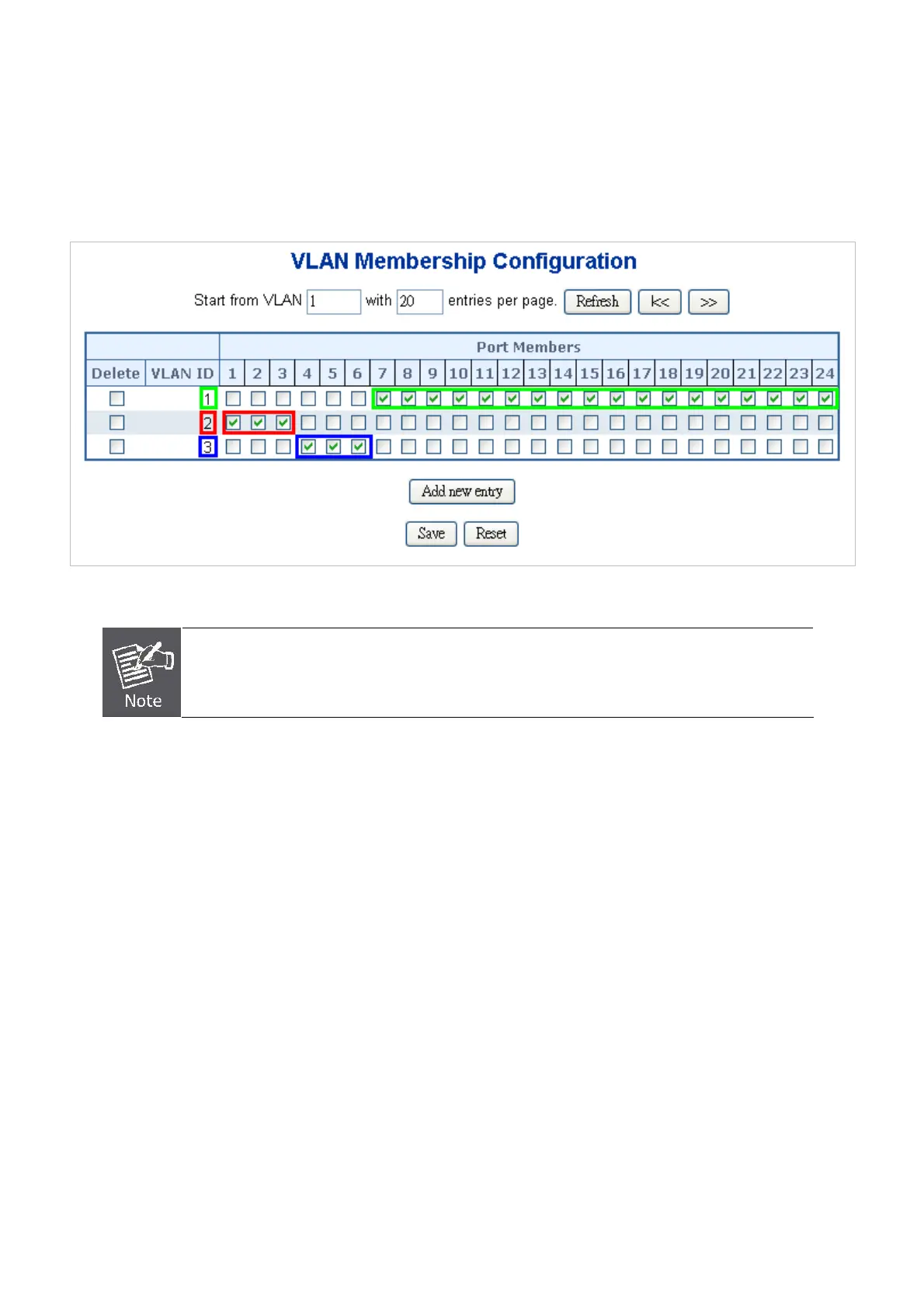

Figure 4-6-9 Add new VLAN group, assign VLAN members for VLAN 2 and VLAN 3 and Remove Specify Ports from VLAN 1
Member
It’s import to remove the VLAN members from VLAN 1 configuration. Or the ports would become
overlap setting. (About the overlapped VLAN configuration, see next VLAN configure sample)
4. Assign PVID for each port:
Port-1, Port-2 and Port-3 : PVID=2
Port-4, Port-5 and Port-6 : PVID=3
Port-7~Port-24: PVID=1
5. Enable VLAN Tag for specific ports
Link Type: Port-3 (VLAN-2) and Port-6 (VLAN-3)
The Per Port VLAN configuration in Figure 4-6-10 appears.
