User’s Manual of IGSW-24040T
4.2.10 CPU Load
This page displays the CPU load, using a SVG graph.
The load is measured as averaged over the last 100ms, 1sec and 10 seconds intervals. The last 120 samles are graphed, and
the last numbers are displayed as text as well.
In order to display the SVG graph, your browser must support the SVG format. Consult the SVG Wiki for more information on
browser support. Specifically, at the time of writing, Microsoft Internet Explorer will need to have a plugin installed to support
SVG. The CPU Load screen in Figure 4-2-13 appears.

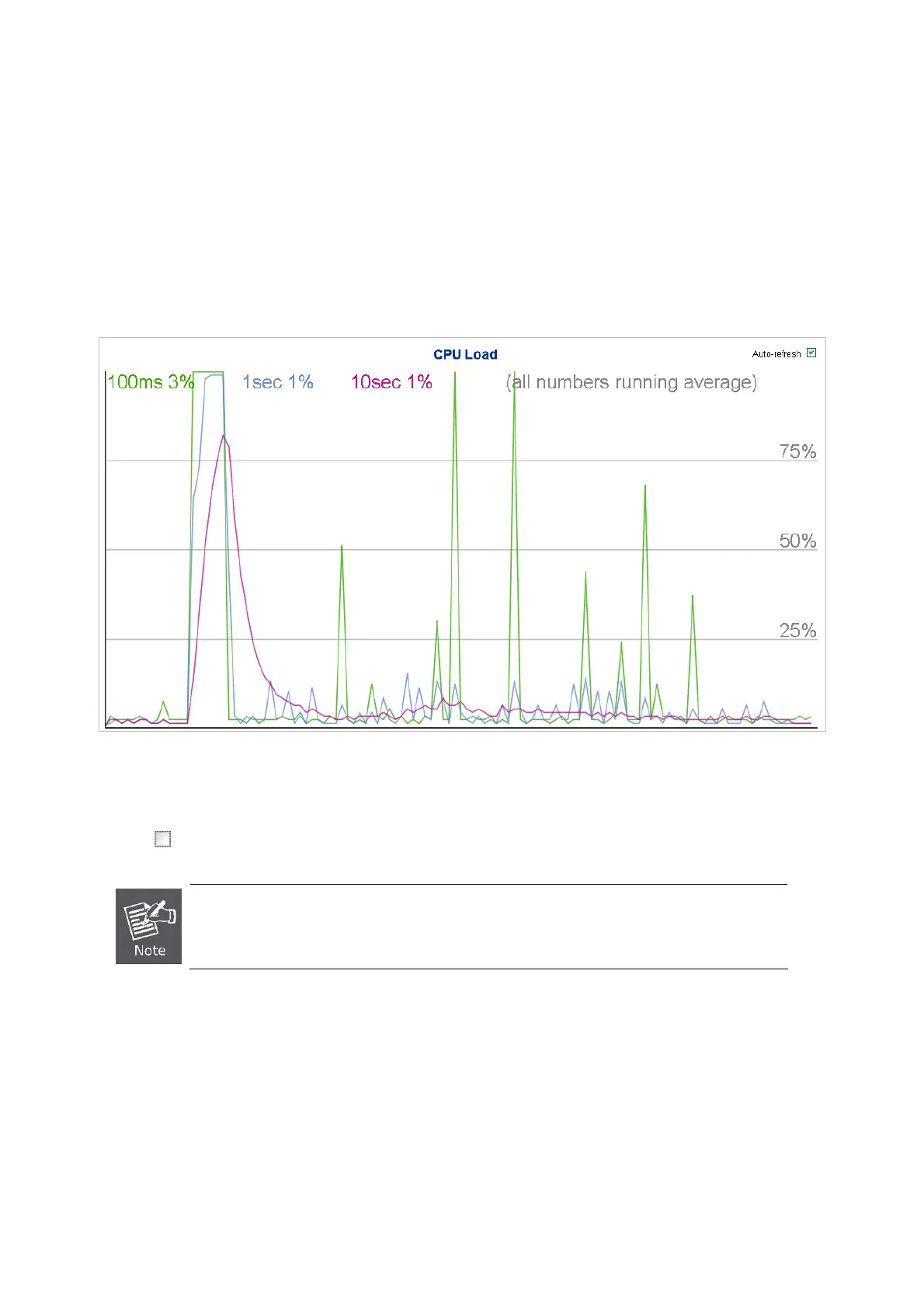

Figure 4-2-13 CPU Load Page Screenshot
Buttons
Auto-refresh
: Check this box to enable an automatic refresh of the page at regular intervals.
If your browser can not displies anythings in this page, please download Adobe SVG tool and
install it in your computer.
64
