User’s Manual of IGSW-24040T
The page includes the following fields:
Object Description
Port
The switch port number.
LACP Enabled
Controls whether LACP is enabled on this switch port. LACP will form an
aggregation when 2 or more ports are connected to the same partner. LACP can
form max 12 LLAGs per switch.
Key
The Key value incurred by the port, range 1-65535 . The Auto setting will set the
key as appropriate by the physical link speed, 10Mb = 1, 100Mb = 2, 1Gb = 3.
Using the Specific setting, a user-defined value can be entered. Ports with the
same Key value can participate in the same aggregation group, while ports with
different keys cannot.
The default setting is “Auto”
Role
The Role shows the LACP activity status. The Active will transmit LACP packets
each second; while Passive will wait for a LACP packet from a partner (speak if
spoken to).
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.

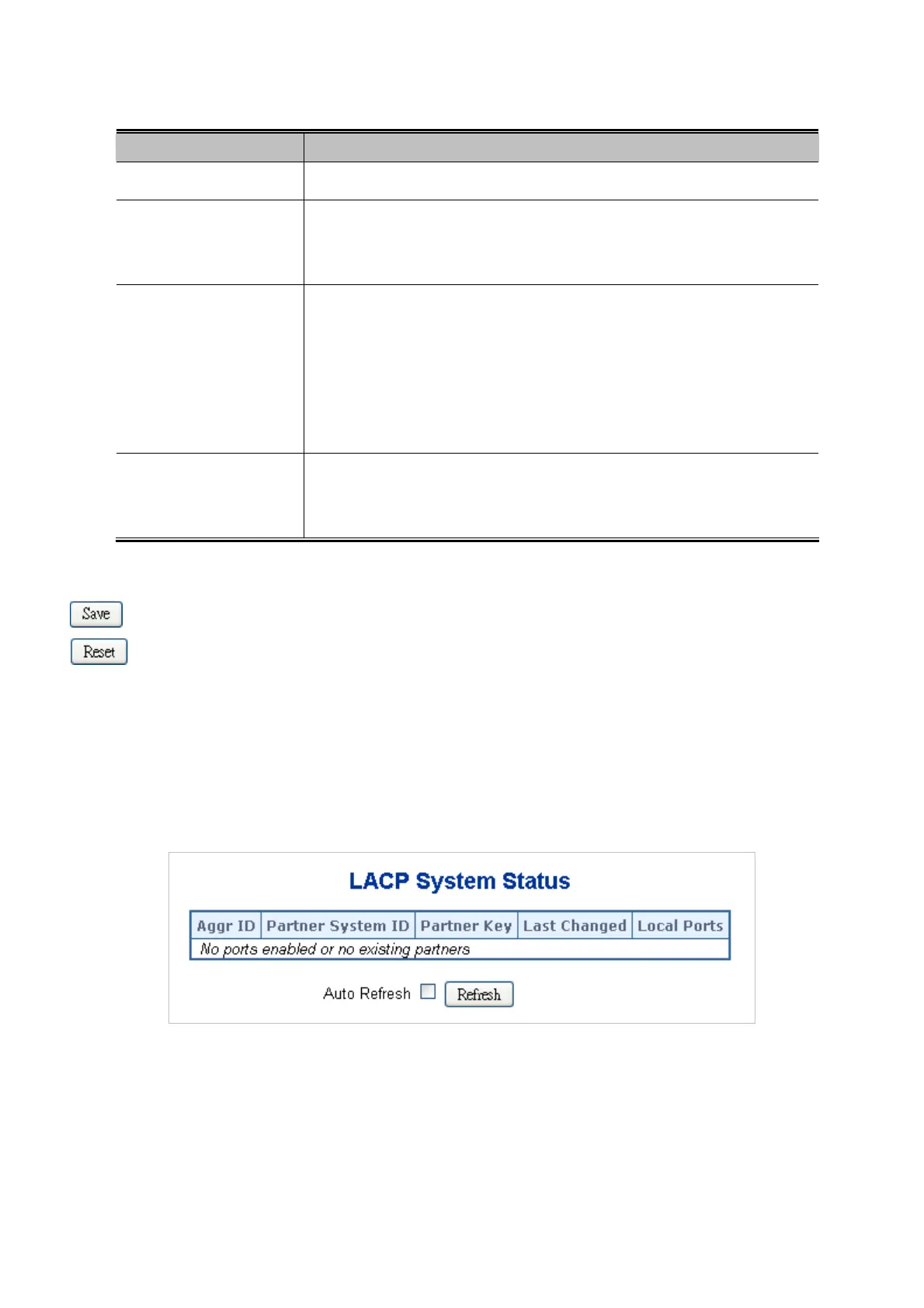

4.5.3 LACP System Status
This page provides a status overview for all LACP instances. The LACP Status page display the current LACP aggregation
Groups and LACP Port status. The LACP System Status screen in Figure 4-5-5 appears.
Figure 4-5-5 LACP System Status Page Screenshot
105
