Buttons
: Click to add new VLAN.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.6.10 VLAN setting example:
- Separate VLAN
- 802.1Q VLAN Trunk
- Port Isolate
4.6.10.1 Two separate 802.1Q VLAN
The diagram shows how the Managed Switch handles Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and
VLAN Group 3 are separated VLAN. Each VLAN isolate network traffic so only members of the VLAN receive traffic from the
same VLAN members. The screen in Figure 4-6-8 appears and Table 4-6-2 describes the port configuration of the Managed
Switches.

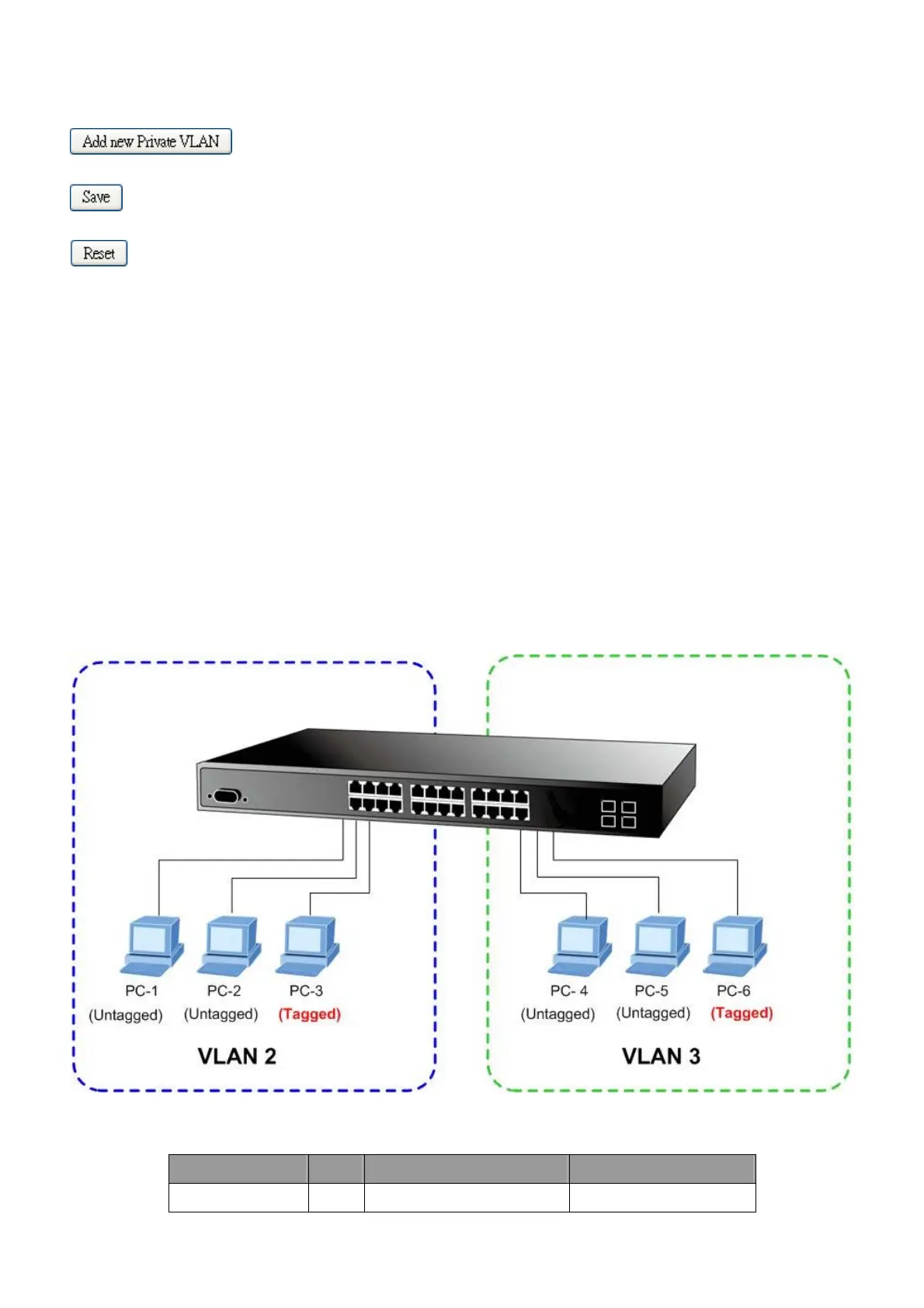

Figure 4-6-8 two separate VLAN Diagram
VLAN Group VID Untagged Members Tagged Members
VLAN Group 1 1 Port-7~Port-24 N/A
