User’s Manual of IGSW-24040T
: Click to continue the wizard.
The QCL configuration wizard is finished, and the new configuration is ready for use.
4.9.3 QoS Control List Configuration
This page lists the QCEs for a given QCL.
 4 different QoS classes classified Frameswhich are Low, Normal, Medium, and High.
 The classification is controlled by QoS assigned to each port.
 A QCL consists of an ordered list of up to 12 QCEs.
 Each QCE can be used to classify certain frames to a specific QoS class.
 This classification can be based on parameters such as VLAN ID, UDP/TCP port, IPv4/IPv6 DSCP or Tag Priority.
Frames not matching any of the QCEs are classified to the default QoS Class for the port.

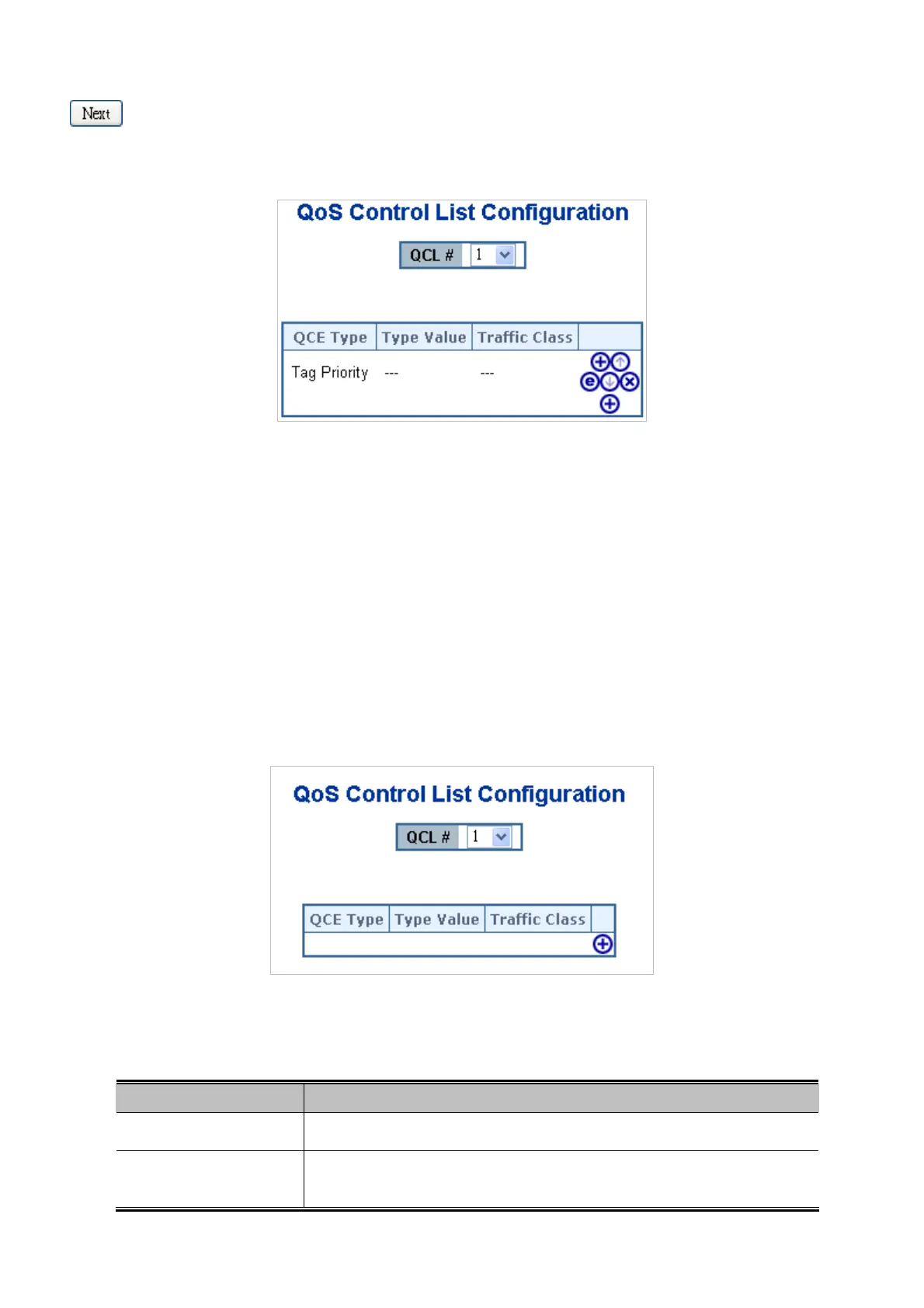

The QoS Control List Configuration screen in Figure 4-9-7 appears.
Figure 4-9-7 QoS Control List Configuration Page Screenshot
The page includes the following fields:
Object Description
 QCL #
Select a QCL to display a table that lists all the QCEs for that particular QCL.
 QCE Type
Specifies which frame field the QCE processes to determine the QoS class of the
frame.
