User’s Manual of IGSW-24040T
4.7.4 CIST Port Configuration
This page allows the user to inspect the current STP CIST port configurations, and possibly change them as well.
This page contains settings for aggregations and physical ports.
The RSTP port settings relate to the currently selected unit, as reflected by the page header.
The STP CIST Port Configuration screen in Figure 4-7-6 appears.

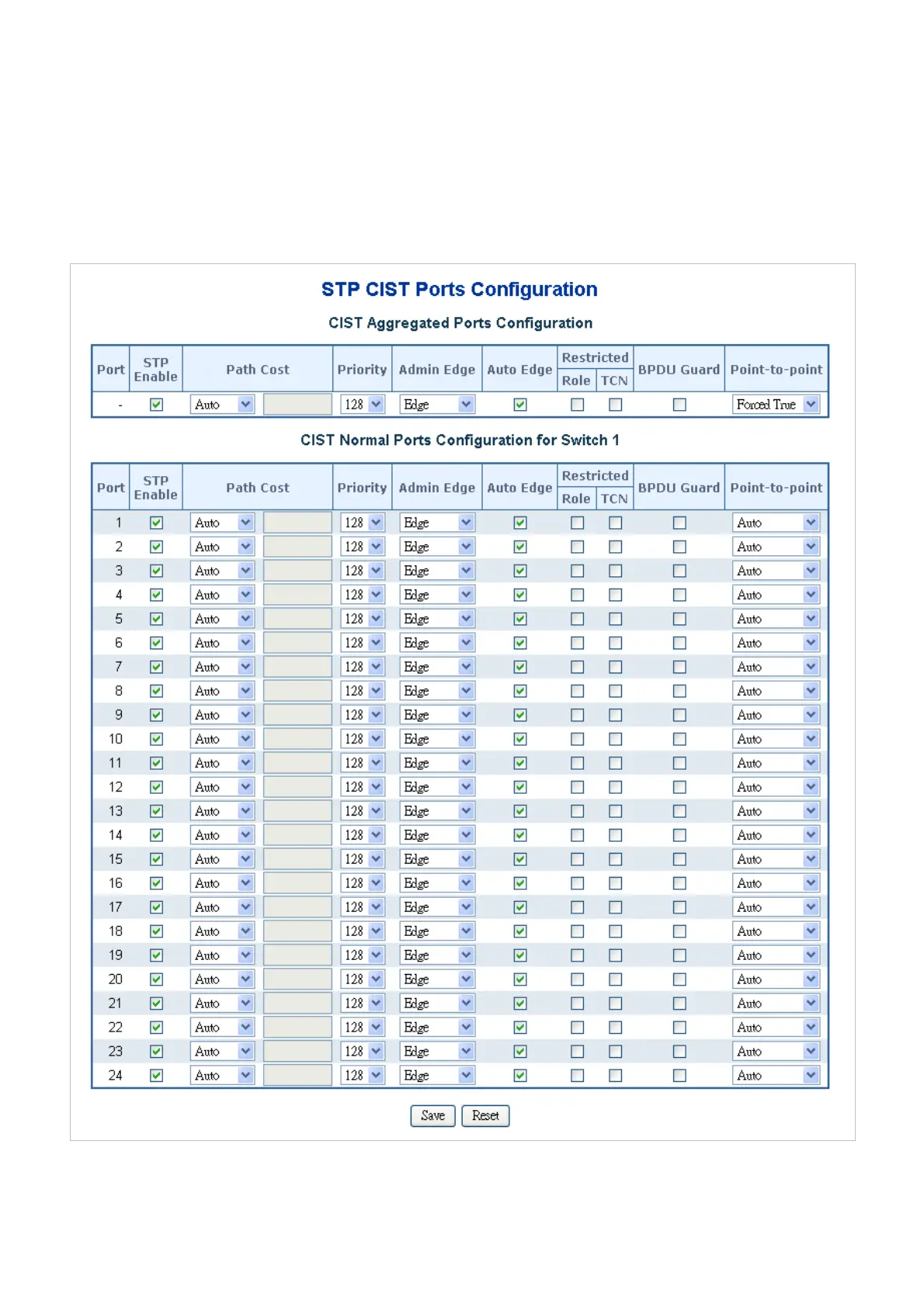

Figure 4-7-6 STP CIST Port Configuration Page Screenshot
144
