4.6.5 VLAN Membership Configuration
Adding Static Members to VLANs (VLAN Index)
Use the VLAN Static Table to configure port members for the selected VLAN index. The VLAN membership configuration for the
selected the switch can be monitored and modified here. Up to 255 VLANs are supported. This page allows for adding and
deleting VLANs as well as adding and deleting port members of each VLAN. The VLAN Membership Configuration screen in
Figure 4-6-3 appears.

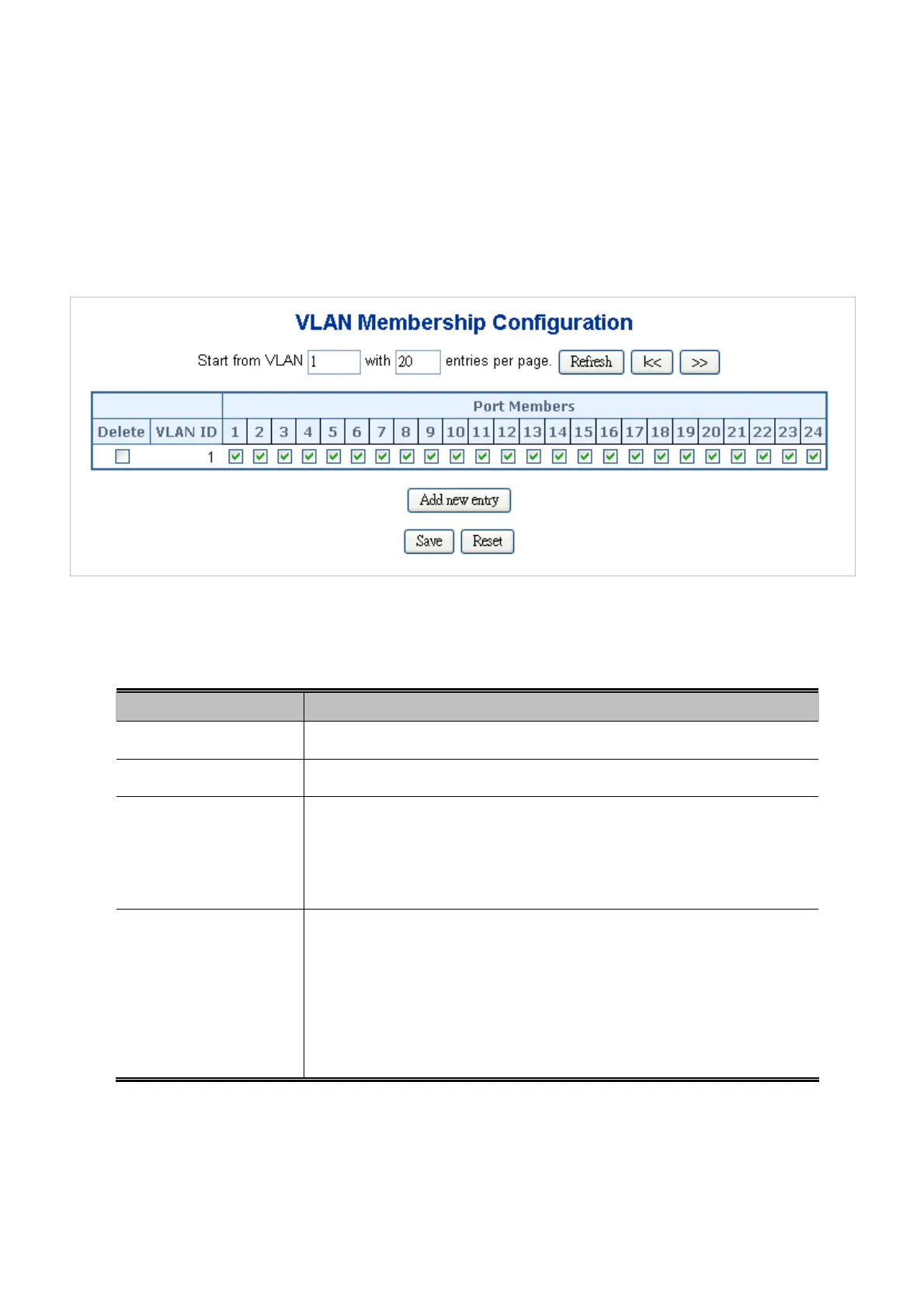

Figure 4-6-3 VLAN Membership Configuration Page Screenshot
The page includes the following fields:
Object Description
Delete
To delete a VLAN entry, check this box.
VLAN ID
Indicates the ID of this particular VLAN.
Port Members
A row of check boxes for each port is displayed for each VLAN ID. To include a
port in a VLAN, check the box. To remove or exclude the port from the VLAN,
make sure the box is unchecked. By default, no ports are members, and all
boxes are unchecked.
Adding a New VLAN
Click to add a new VLAN ID. An empty row is added to the table, and the VLAN
can be configured as needed. Legal values for a VLAN ID are 1 through 4095.
The VLAN is enabled on the selected the switch when you click on "Save". A
VLAN without any port members on any unit will be deleted when you click
"Save".
The button can be used to undo the addition of new VLANs.
To Next Page
