User’s Manual of IGSW-24040T
4.4 Port Management
Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:
 Port Configuration
Configures port connection settings
 Port Statistics Overview
 Port Statistics Detail
Lists Ethernet and RMON port statistics
 SFP Module Information
Display SFP information
 Port Mirror
Sets the source and target ports for mirroring
4.4.1 Port Configuration
This page displays current port configurations. Ports can also be configured here. The port settings relate to the currently
selected unit, as reflected by the page header. The table has one row for each port on the selected switch in the and a number
of columns, which are:
The Port Configuration screen in Figure 4-4-1 appears.

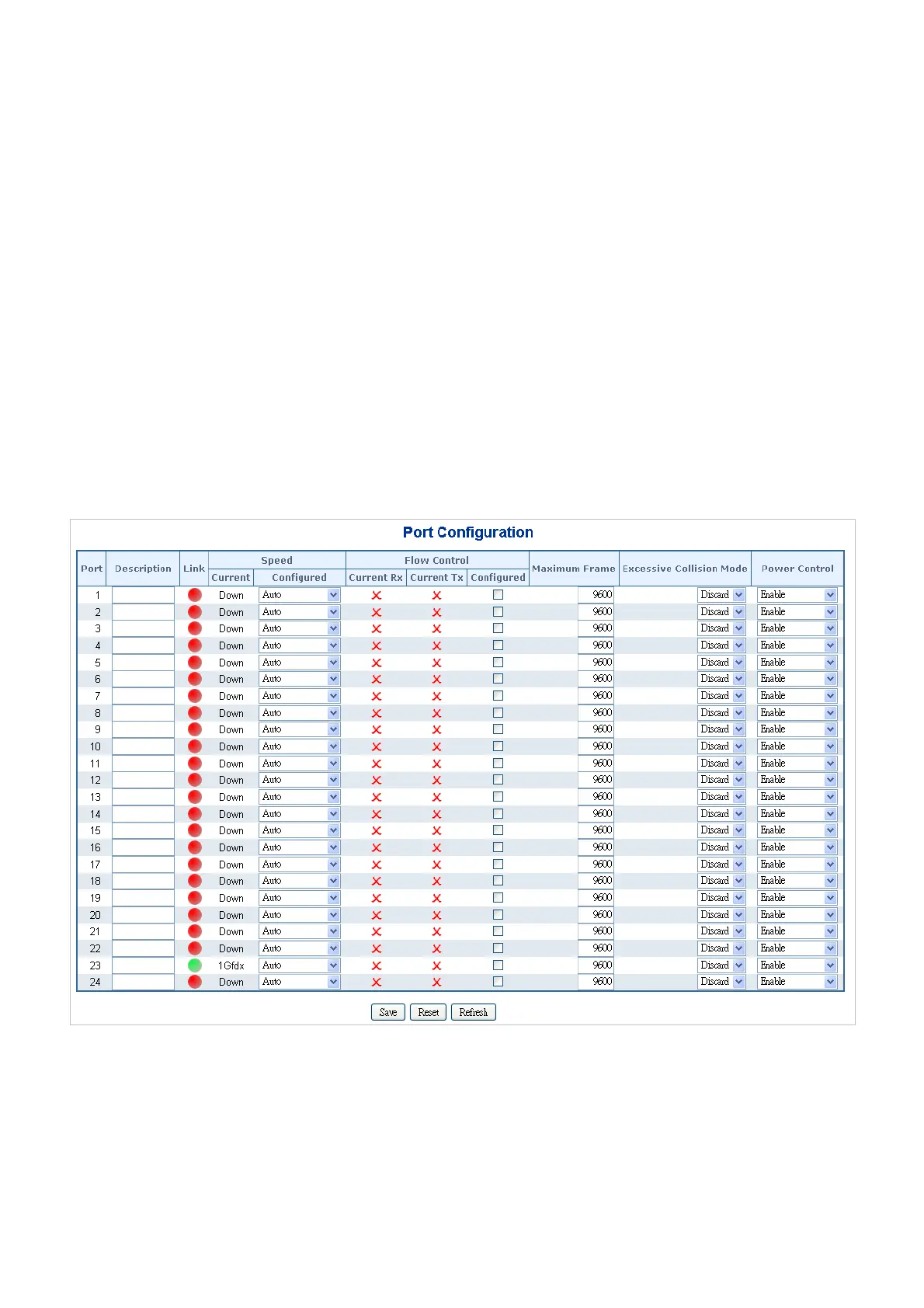

Figure 4-4-1 Port Configuration Page Screenshot
91
