User’s Manual of IGSW-24040T
4. Apply a QoS profile to a port(s).
4.9.2 QCL Configuration Wizard
This handy wizard helps you set up a QCL quickly. The QCL Configuration Wizard screen in Figure 4-9-1 appears.

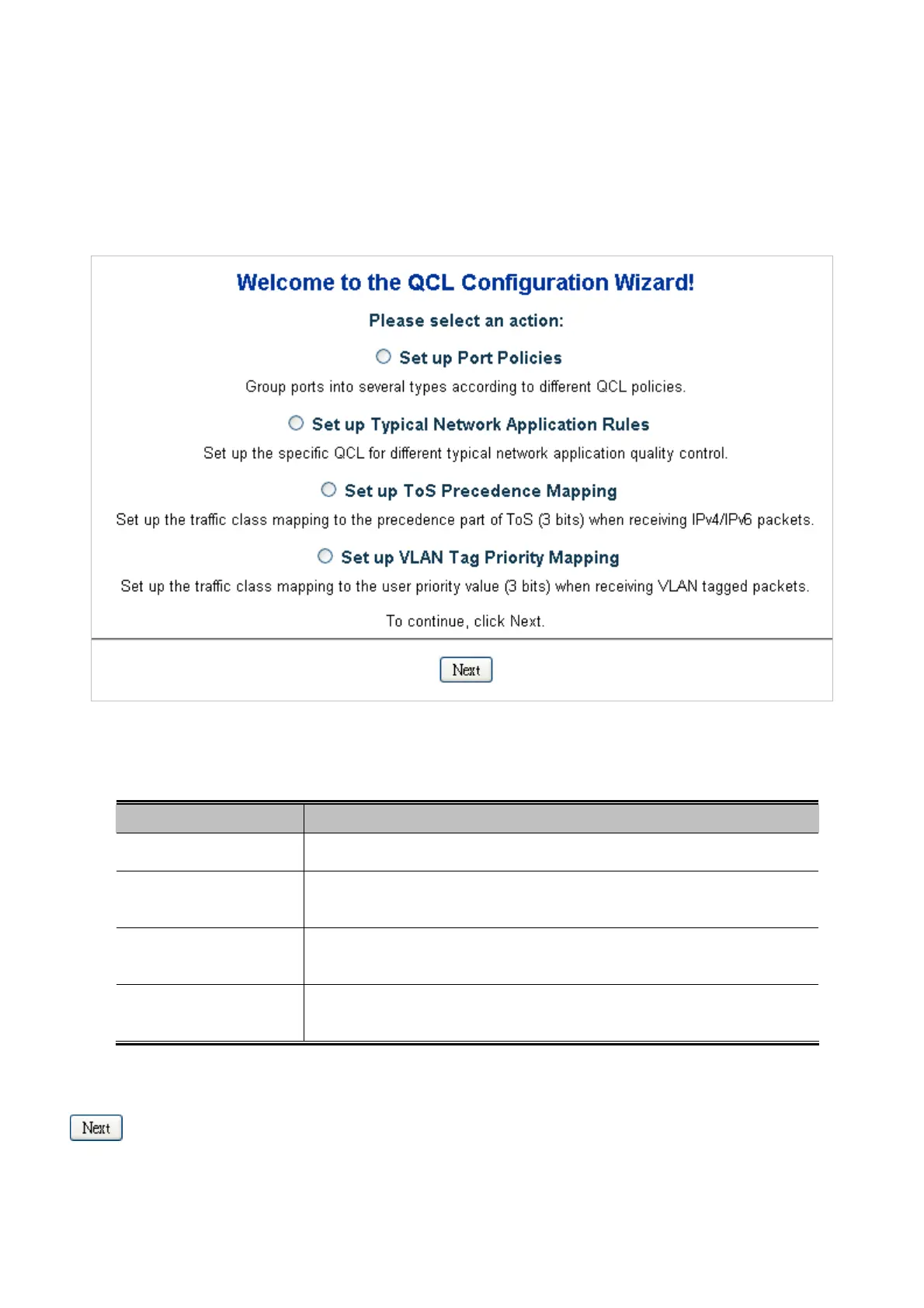

Figure 4-9-1 Welcome to the QCL Configuration Wizard Page Screenshot
The page includes the following fields:
Object Description
 Set up Port Policies
Group ports into several types according to different QCL policies.
 Set up Typical Network
Application Rules
Set up the specific QCL for different typical network application quality control.
 Set up ToS Precedence
Mapping
Set up the traffic class mapping to the precedence part of ToS (3 bits) when
receiving IPv4/IPv6 packets.
 Set up VLAN Tag
Priority Mapping
Set up the traffic class mapping to the User Priority value (3 bits) when receiving
VLAN tagged packets.
Buttons
: Click to continue the wizard.
169
