Polaris 2003 Pro X

To Next Page

To Previous Page

CARBURETION

3.7

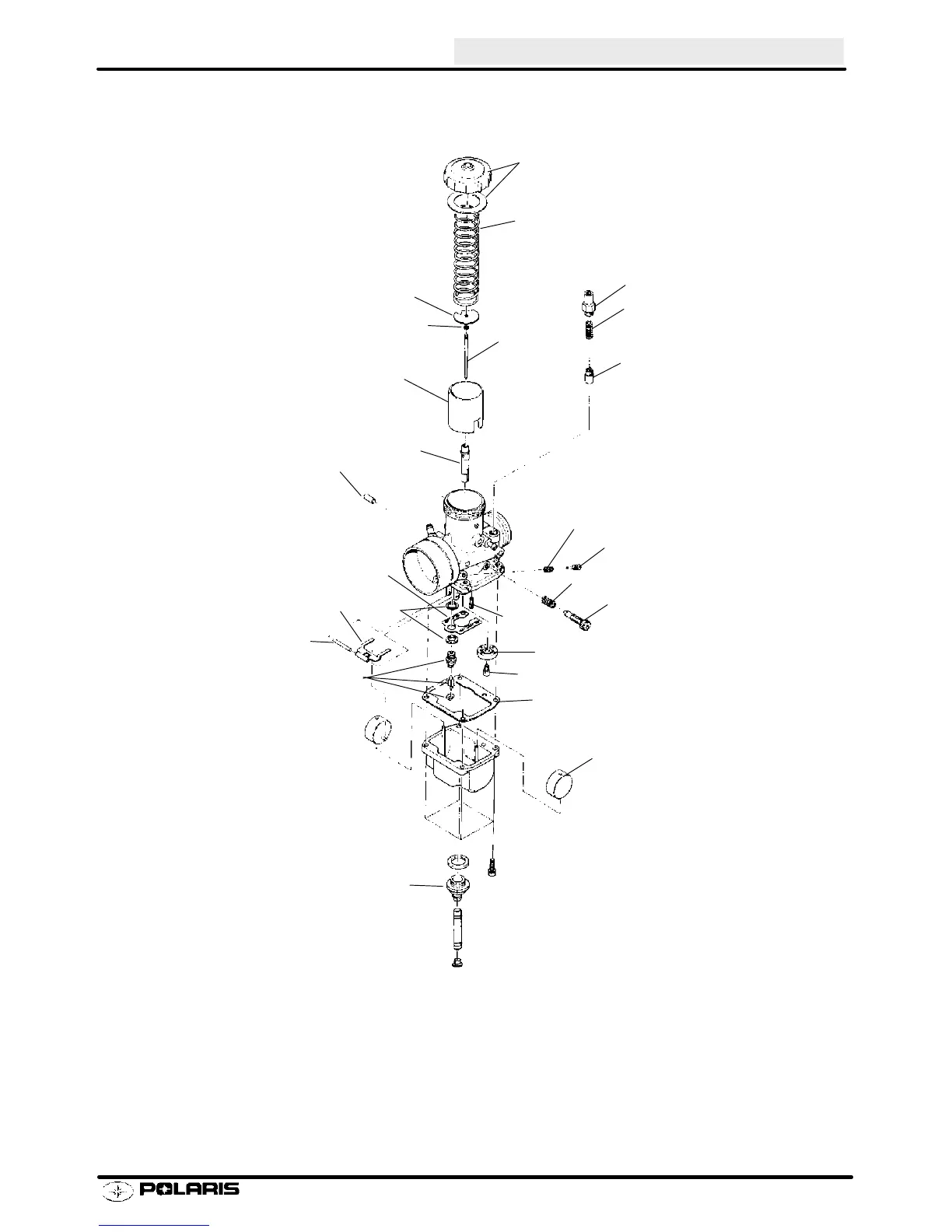

Exploded View - VM34SS

Mixing Chamber Top

(Including Gasket)

Throttle Spring

Plunger Cap

Plunger Spring

Plunger

Throttle Plate

E-Ring

Jet Needle

Throttle Valve

Needle Jet

Cap

Air Screw

Spring

Throttle Stop Screw

Spring

Pilot

Jet

Ring

Main Jet

Gasket

Float

Drain Plug

Needle &

Seat

Float Pin

Float Arm

Packing

Plate
