CHASSIS/BRAKES/FINAL DRIVE
5.15

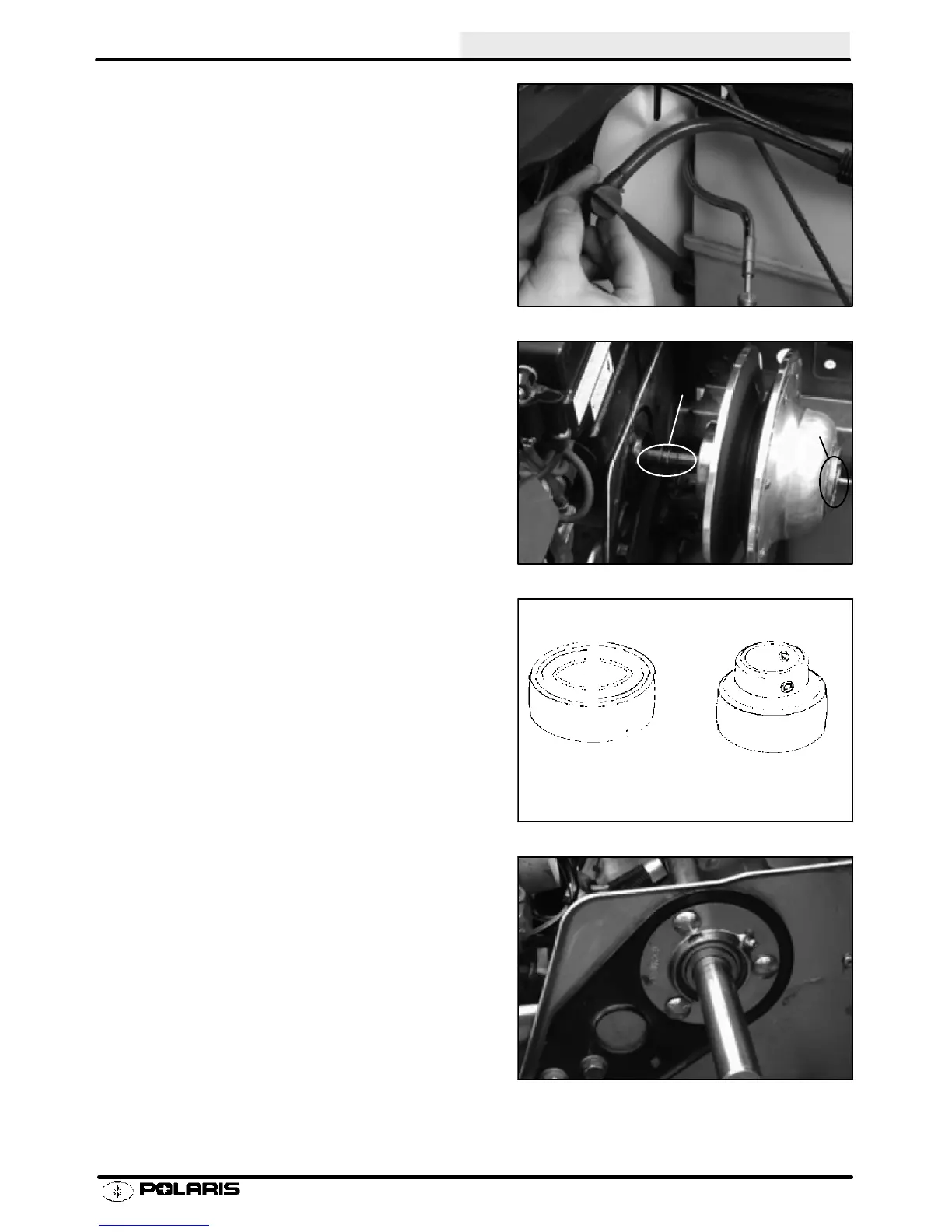

Rear Suspension Removal
The Type 3 drive system is used on all models except the
WideTrak. This system consists of a right side mounted
chaincase with right side mounted brake assembly.
1. Turn OFF Fuel Valve and drain all the fuel from the fuel
tank into an approved container.
2. Mark hood hinges for ease of alignment when
reassembling.
3. Remove hood (to prevent damage), air silencer,
exhaust system and battery, if so equipped.
4. Place drip pan under chaincase and remove drain plug.
Dispose of used chaincase oil properly.
5. Remove drive belt and driven clutch.
Note position of washers for controlling drive to
driven offset (A) and washers to control clutch free
floating (B).
6. Remove air box (if needed) and loosen jackshaft
bearing lock set screws (if equipped).
NOTE: Some models are equipped with set screw or
Skwez-loct style jackshaft bearings. Some models are
equipped with press-fit bearings which have no locking de-
vice.
7. Remove two upper flangette attaching bolts.
B
A
Press On Bearing
Set Screw Bearing
