CHASSIS/BRAKES/FINAL DRIVE
5.11

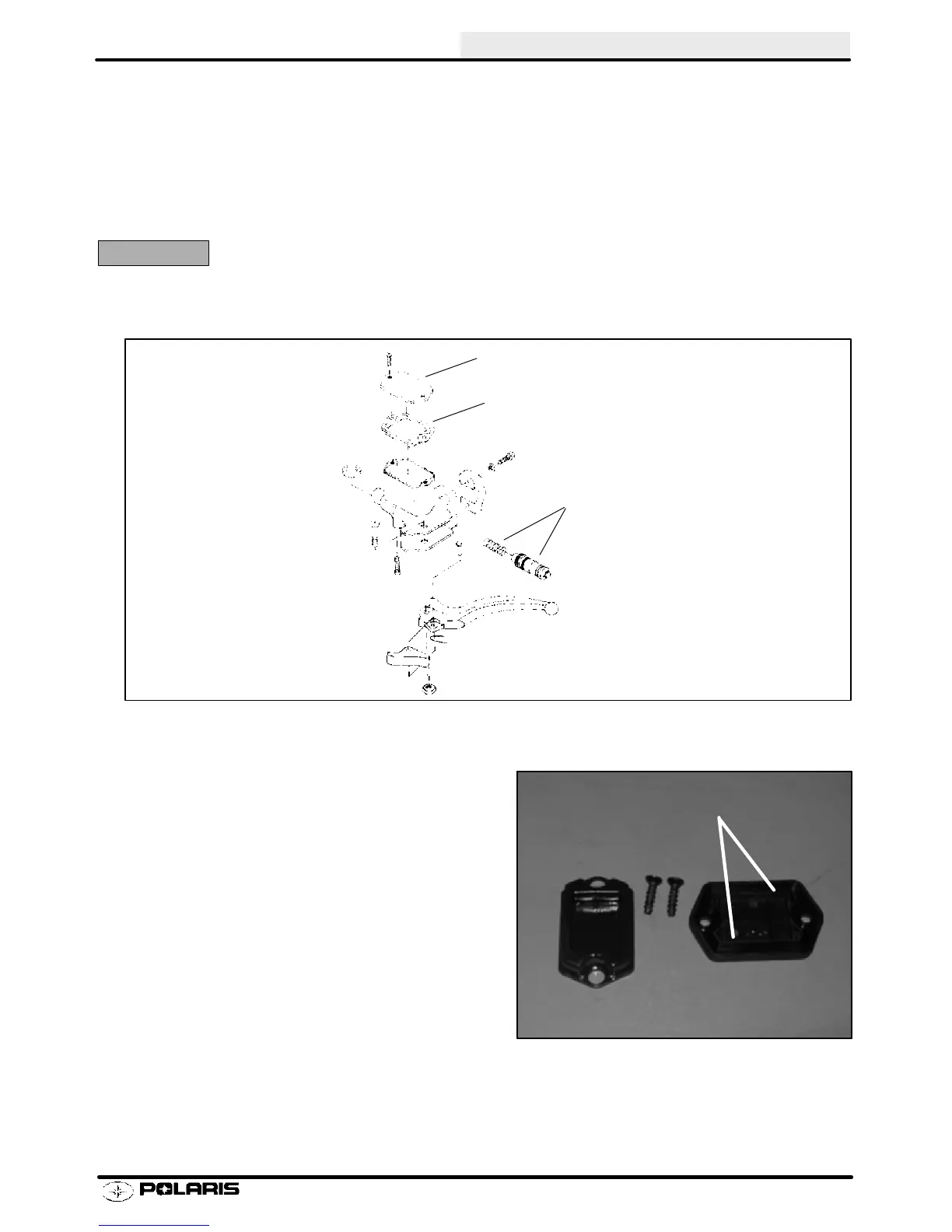

Step by Step instructions for Wilwood Master Cylinder Removal and Inspection.
Disassembly
1. Clean master cylinder and reservoir assembly. Make sure you have a clean work area to disassemble brake
components.
2. Place a shop towel under brake line connection at master cylinder. Loosen banjo bolt; remove bolt and sealing
washers.
CAUTION:
Brake fluid will damage finished surfaces. Do not allow brake fluid to come in contact with finished surfaces.
3. Remove master cylinder from handlebars.
4. Remove cover and diaphragm from master cylinder
and dispose of the fluid properly.
5. Be sure vents in cover are clean and unobstructed.
6. Remove brake lever.
Master Cylinder
Piston Assy
Cover
Diaphragm
Vent Slots
Diaphragm
Cover
