STEERING / FRONT SUSPENSION
6.16
NOTE: Measure from top of bar to the top of the
hole.
EXAMPLE:
Specified Camber = 3/4s (19mm)
Specified Tolerance = r 5/16s (8mm)
Acceptable Range = 7/16 - 1 1/16s (11-27mm)
See page 6.12 for specific applications
Specified Camber
CAMBER - ACCEPTABLE RANGE
Range
- To adjust, lengthen or shorten appropriate lower radius rod until top of bar is within specified camber
distance. Measurement should be taken from
top of alignment bar to top of ski pivot bushing hole in
spindle (bushing removed)
. Radius rod must be re-attached to trailing arm before measuring.

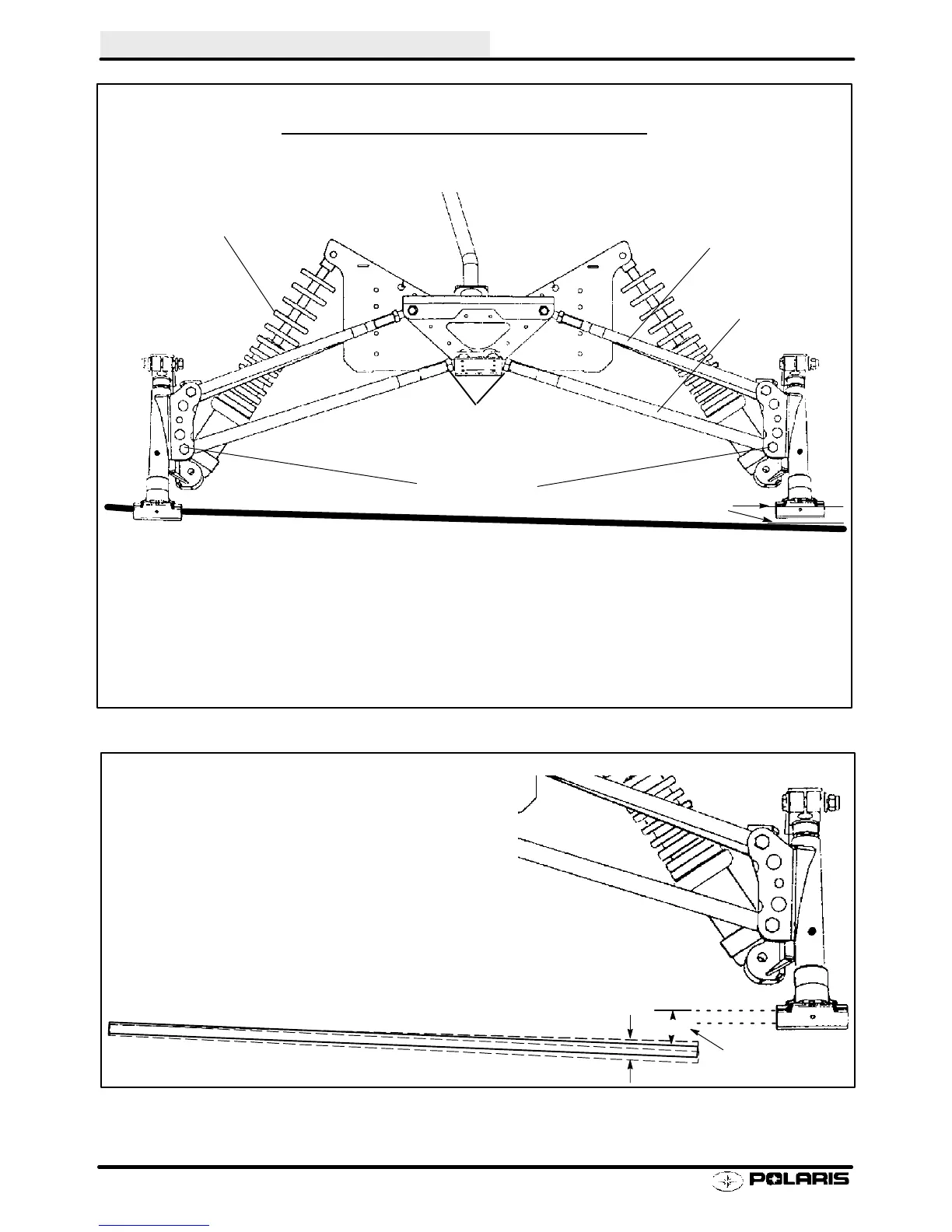

CAMBER INSPECTION
All Models - Elevate Front End - Shocks Installed
Refer to specifications for:
SIFS type
SSpecified amount of camber
Attaching Bolts
Radius Rod End
Jam Nuts
Suspension Free Hanging With
IFS Shocks Installed
Lower radius rod
Measure Here
Upper radius rod
Typical CRC Shown - Style varies by model
