ENGINE
2.45

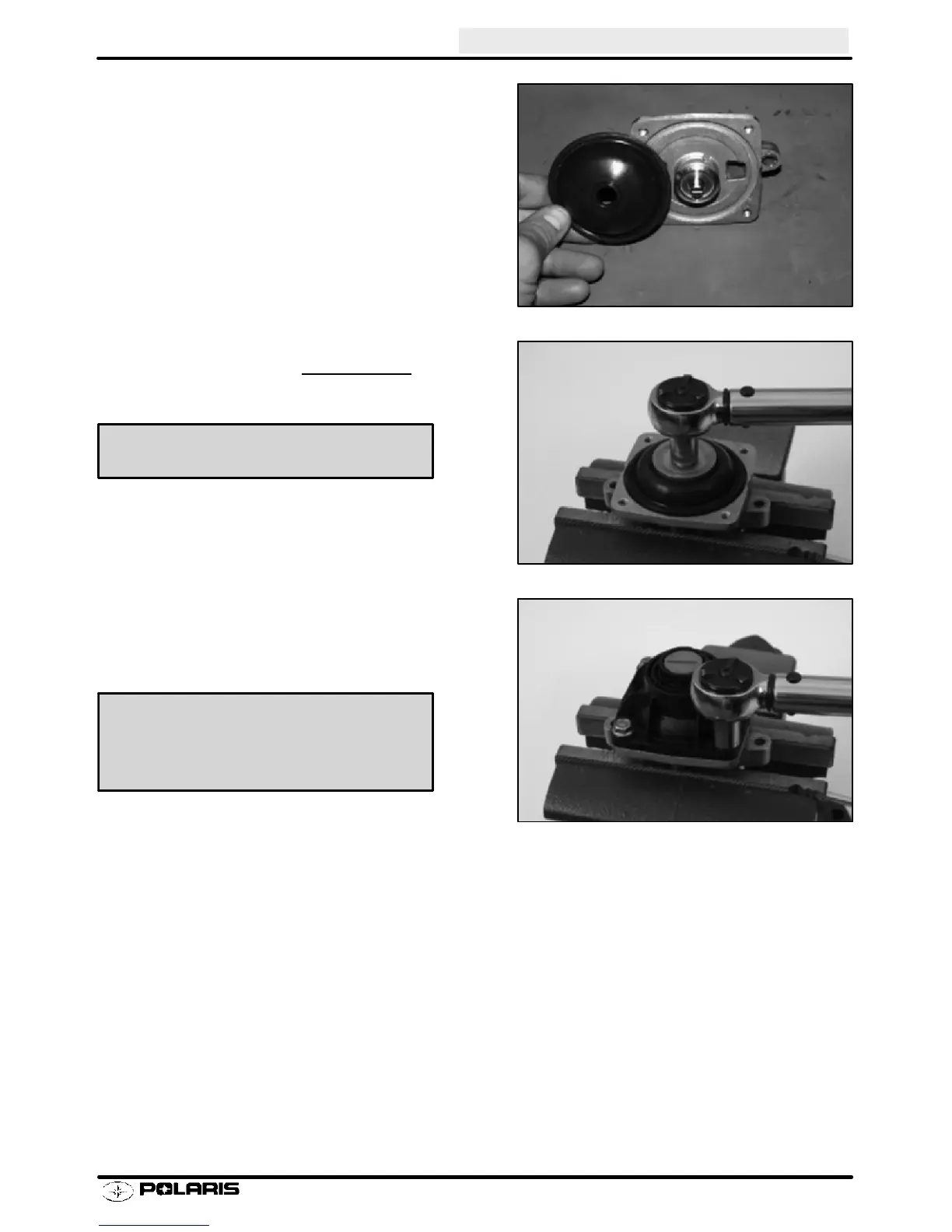

V.E.S. Assembly
V.E.S. Assembly
1. Insert exhaust valve into valve housing. Re-
place housing gasket.
2. Install washer, beveled side out, and bellows.
3. Apply Loctitet 262 to the threads of valve
and
install valve cap. Torque to specification.
4. Install spring, valve cover, and adjuster nut.
Torque exhaust valve cover bolts to specifica-
tion.
5. Install V.E.S. assembly onto cylinder and torque
V.E.S. housing bolts to specification. Domestic
Engines utilize two of the cover bolts for mount-
ing to the cylinder. The torque value for these
are 12 ft.lbs(16Nm).
Valve Cap Torque:
6 Ft lbs (8.3 Nm)
Fuji Valve Cover Bolt Torque:
4 Ft lbs (5.5 Nm)
Domestic Valve Cover Bolt Torque:
12 ft.lbs(16Nm)
