CLUTCHING
4.42

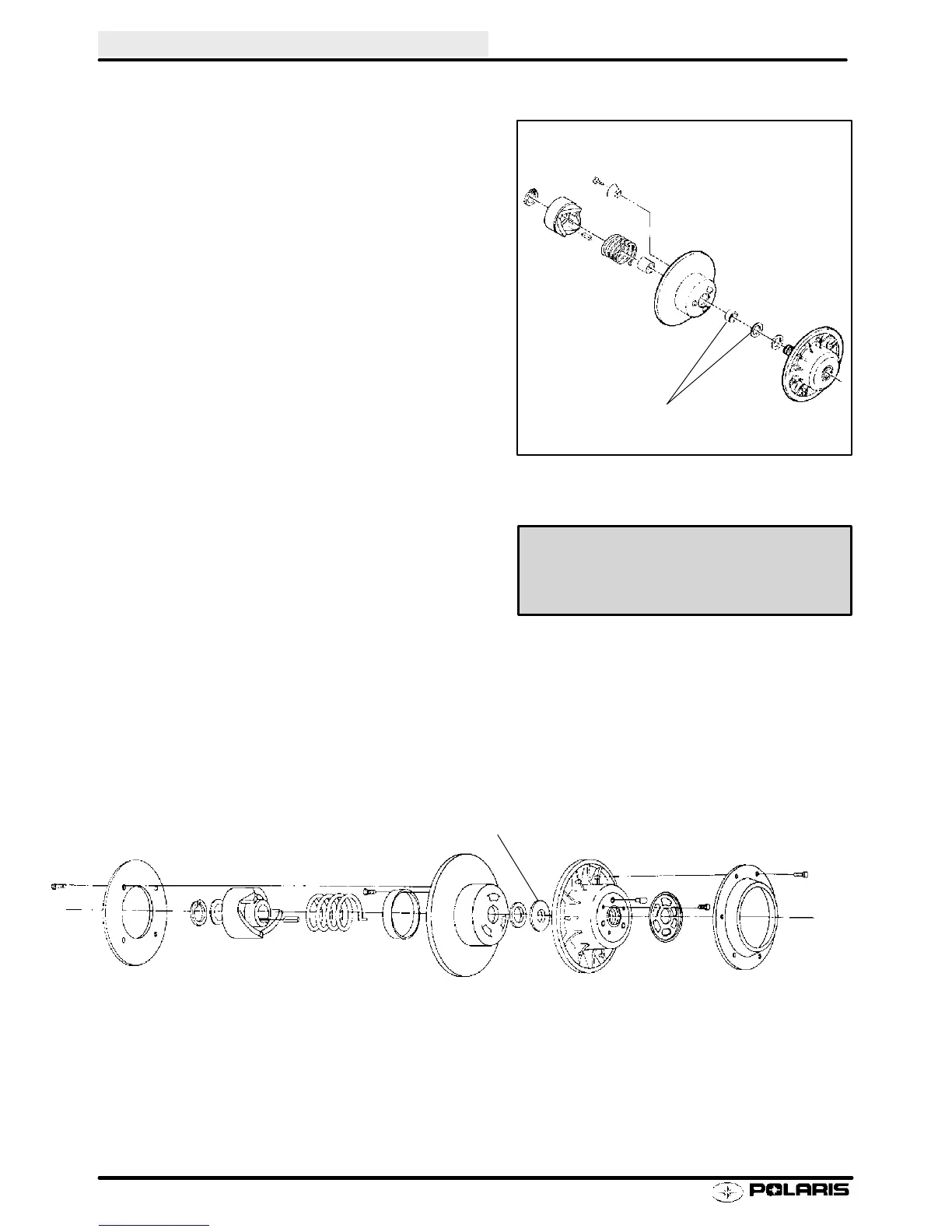

Adjusting Belt Deflection
Belt deflection can be adjusted without removing the clutch
from the jackshaft.
1. Pull belt into driven clutch to slightly open sheaves.
2. Loosen three bolts on adjustment cam.
3. Turn cam counterclockwise to reduce distance
between sheaves.
Do not
rotate past #1 position.
4. Torque bolts to specification.
Used to adjust
belt tension. One must
always be installed.
Production washer is usually .075s thick with other .020 or .030 washers
as required. May use optional, thinner (.048s) washer PN 7555899 if re-
quired to obtain proper sheave width. Either the .075s or .048s washer
must be installed in this location to provide support for the adjustment
pins.
Optional Thin Adjustment Washer (P-85)
.048s - PN 7555899
