ELECTRICAL
8.8

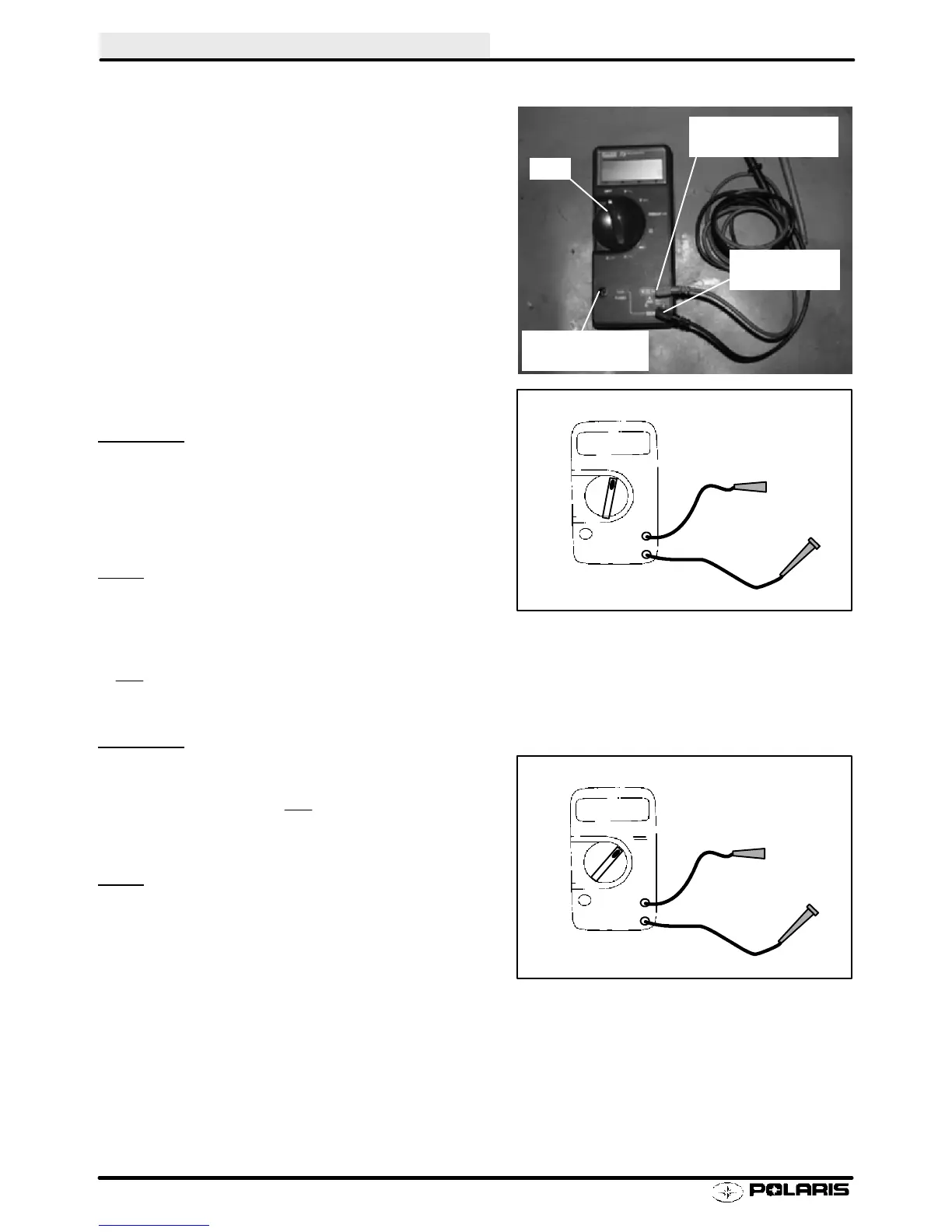

Multimeter Usage
The easiest and most accurate method for testing modern
electrical components is with a digital multitester. Any good
quality multitester will work. However, due to ease of opera-
tion and durability, Polaris recommends the Fluke Model 73
(PN 2870659), or Tektronix DMM155. See photo at right.
This instrument will provide a digital readout of the measured
value of the test being performed.
Listed below are the dial symbols, their meaning and what
thedialsettingcanbeusedfor.
Off = Instrument Off
V = Volts AC - measuring alternator output
Used to measure AC voltage in an electrical system. AC volt-
age is produced from every coil on the stator plate when a
magnet is passed by it.
Tes t
Method
1. Connect black lead to Com (--) meter terminal.
2. Connect red lead to V
: (+) meter terminal.
3. Turn selector dial to V
 setting.
4. Connect test leads parallel with test component. The
polarity of the leads is not important.
Usage
S Test unregulated voltage output of a stator coil
S Test regulated voltage to the lights and handwarm-
ers
V
---
= Volts DC - measuring battery voltage, volt drop, etc.
Used to measure DC voltage produced by a battery or rectifier.
Tes t
Method
1. Connect black lead to Com (--) meter terminal
2. Connect red lead to V
: (+) meter terminal.
3. Turn selector dial to V
---
setting.
4. Connect test leads parallel with test component.
Observe polarity.
Usage
S Test battery voltage
S Test DC regulator
S Test voltage drop for bad connections
S Test supply voltage to electric fuel gauge
Dial
Red Lead here
for Volts and Ohms
Common
(Black Lead)
Red Lead here
for Amperes
+
_
17.29
V
~
VAC
+
_
12.95
V
VDC
