CHASSIS/BRAKES/FINAL DRIVE
5.16

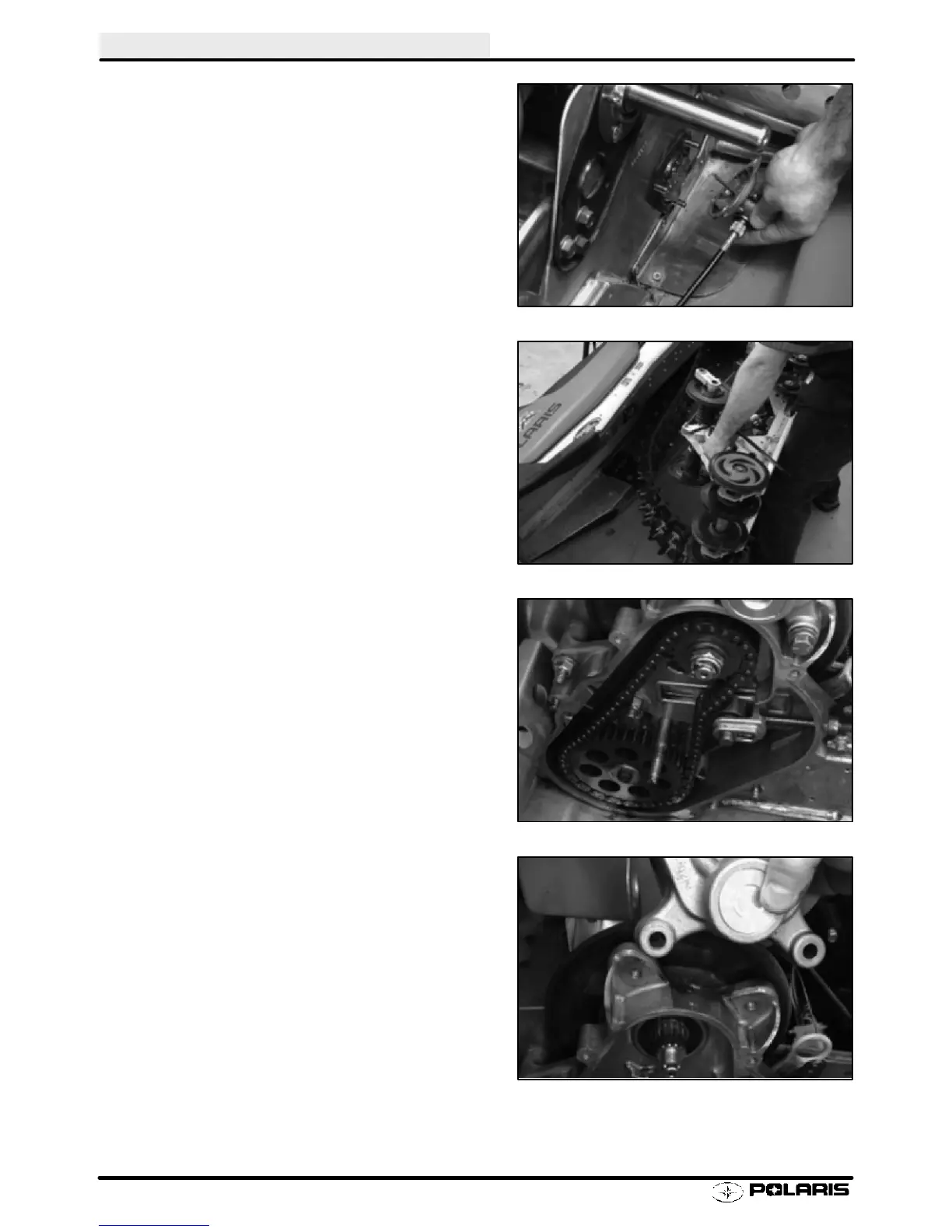

Rear Suspension Removal, Cont.
8. Remove three bolts, nuts, and washers securing angle
drive and bearing flangettes. Remove and discard
adaptor key.
9. Remove four suspension mounting bolts.
10. Place a protective mat on floor and tip machine onto
left side.
11. Remove rear suspension by pulling rear of track
outward and sliding suspension forward. Lift out rear
of suspension first.
NOTE: Unhook the rear torsion springs to relieve pressure
on the torque arm for ease of removal. Loosen rear shaft
bolts and adjuster bolts, slide rear shaft forward for ease
of removal.
Chaincase Removal
1. Support rear of machine.
2. Remove third jackshaft flangette attaching bolt.
Tip machine back to upright and support rear with jack-
stand.
3. Drain Chaincase and remove chaincase cover
attaching bolts and remove cover.
4. Remove cotter pin and nut.
5. Loosen chain adjustment bolt and remove chain
tensioner assembly.
6. Remove bottom sprocket attaching bolt, chain and
sprockets.
7. Remove two bolts securing caliper carrier bracket to
chaincase.
NOTE: Inspect brake pad condition and replace if worn to
less than 1/2 the original thickness. See Brake Pad Re-
placement in this chapter.
