CLUTCHING
4.11
Helix Angles and Effects (Polaris Clutch)
The driven clutch helix was selected for overall performance in relation to the other driven system components. In
fine tuning situations requiring a slight adjustment of engine operating RPM or improved backshift, we
recommend trying a helix change before changing other components.
The helix spring should always be adjusted within its limits before a helix change is performed. The normal rate of
change between helix angle steps is 250 RPM under full throttle. This is approximately the same result as in going
from the No. 1 to No. 4 spring position. NOTE: Increasing spring tension increases engine RPM. RPM changes
may not be evident if other drive or driven clutch components are substandard.
On most models the production helix spring hole location is No. 2. Tension the spring 1/3 turn. Install helix key,
thrust washer and snap ring.

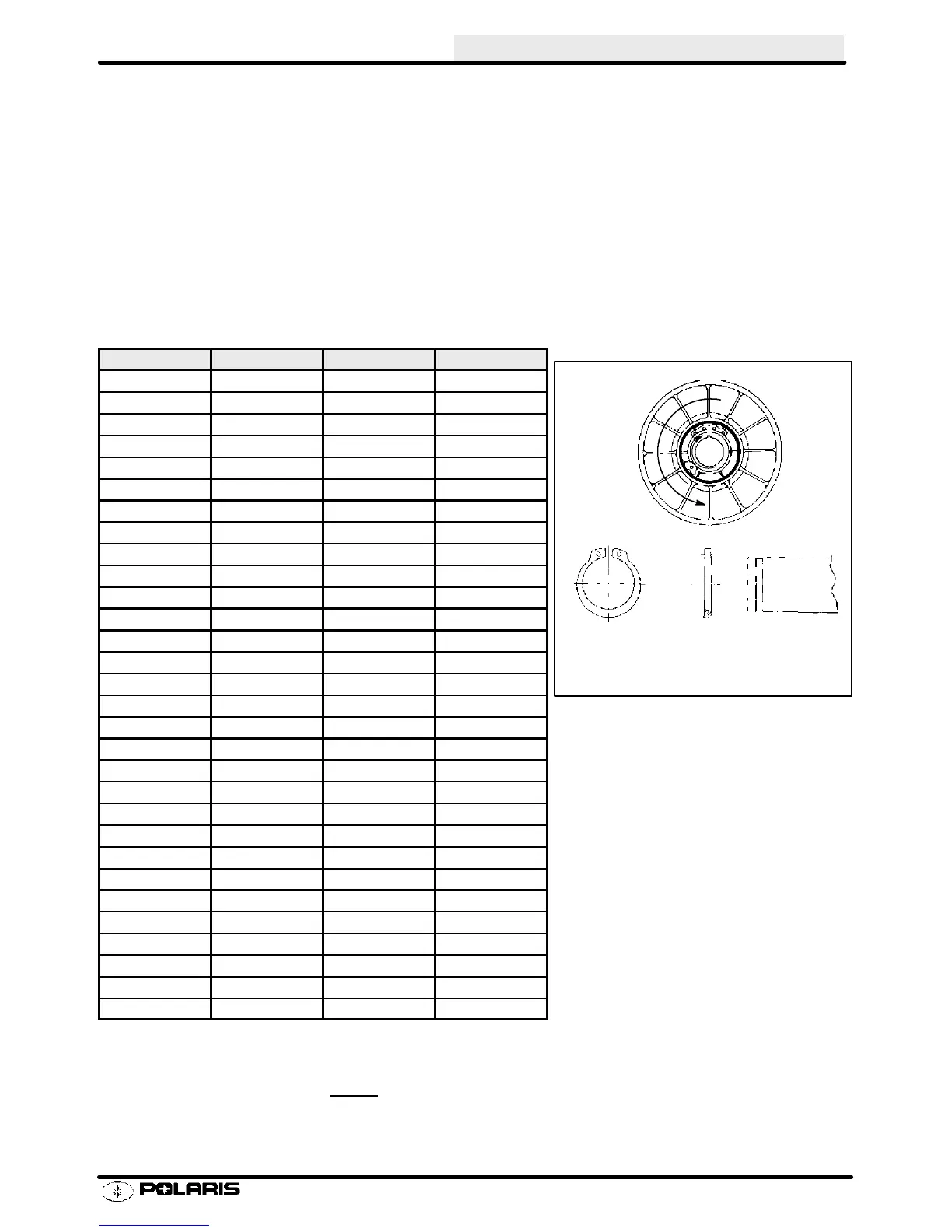

Polaris has several helix angles available for the driven clutch. Refer to the chart below for specific angle effects
and identification. See NOTE: below.
Description PN Degrees System Type
34 5130896 34 P85
34M* 5130751 34 P85
36 5130895 36 P85
36M* 5130717 36 P85
38 5130723 38 P85
40 5130724 40 P85
42 5130725 42 P85
44 5130726 44 P85
40-36* 5130898 40-36 P85
R1* 5131287 40-32 P85
R2* 5131288 42-32 P85
R3* 5131289 45-32 P85
R4* 5131290 50-32 P85
R5* 5131291 40-34 P85
R6* 5131292 42-34 P85
R7* 5131293 45-34 P85
R8* 5131294 50-34 P85
R9* 5131295 40-36 P85
R10* 5131296 42-36 P85
R11* 5131297 45-36 P85
R32* 5131623 50-34 P85
R12* 5131298 50-36 P85
R49 5133023 52--34 P85
T-1* 5131013 42-36-34 P85
36.5 5130383 36.5 P90
40-38-36 5131161 40-38-36 P90
38-36 5131162 38-36 P90
38-36-34 5131163 38-36-34 P90
34 5131164 34 P90
34 5131164 34 P90
* NOTE: All R-Series, Mod(M), T1, and 40-36 helix ramps are cut 0.060s deeper in the snap ring pocket.
These are made so the driven clutch can open far enough for full shift out with wide 1 7/16s belts.
If these helix ramps are used with narrow belts, 2 additional .030s /.8 mm (PN 7556804) washers (for a total of
three) must be installed under the snap ring to prevent the belt from touching the inner hub at full shift which can
cause belt failure.
Wide belt models use only the existing washer under the snap ring.
NOTE: Always Install Snap Ring with
Chamfer Towards Helix (sharp edge out-
ward)
