CLUTCHING
4.30

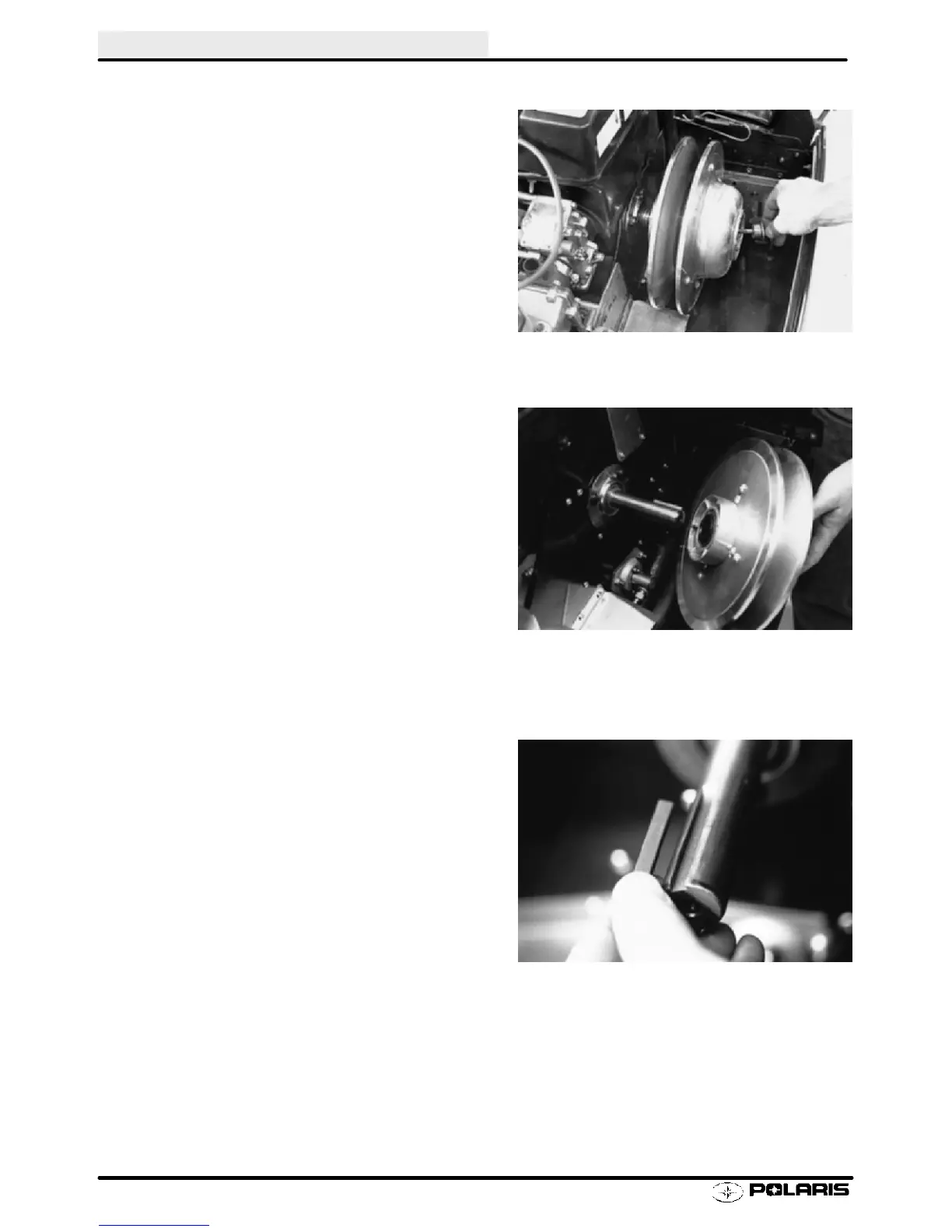

Driven Clutch Removal
1. Remove driven clutch retaining bolt.
2. Slide driven clutch off jackshaft. It may be
necessary to use a puller on some driven clutches.
P-85 clutches (externally adjustable) can be
removed using a 3-point flywheel or steering wheel
puller and the 1/4-20 adjustment bolt holes. Use a
suitable spacer on the end of the jackshaft.
3. Inspect jackshaft keyway for wear or damage. New
key PN 7721128 (Pro X Fan)
key PN 7721116 (Pro X 440/600/700/800)
NOTE: Notice the number and thickness of shim washers
between driven clutch and jackshaft bearing. These must
be replaced to maintain proper offset/alignment.
