CHASSIS/BRAKES/FINAL DRIVE
5.17

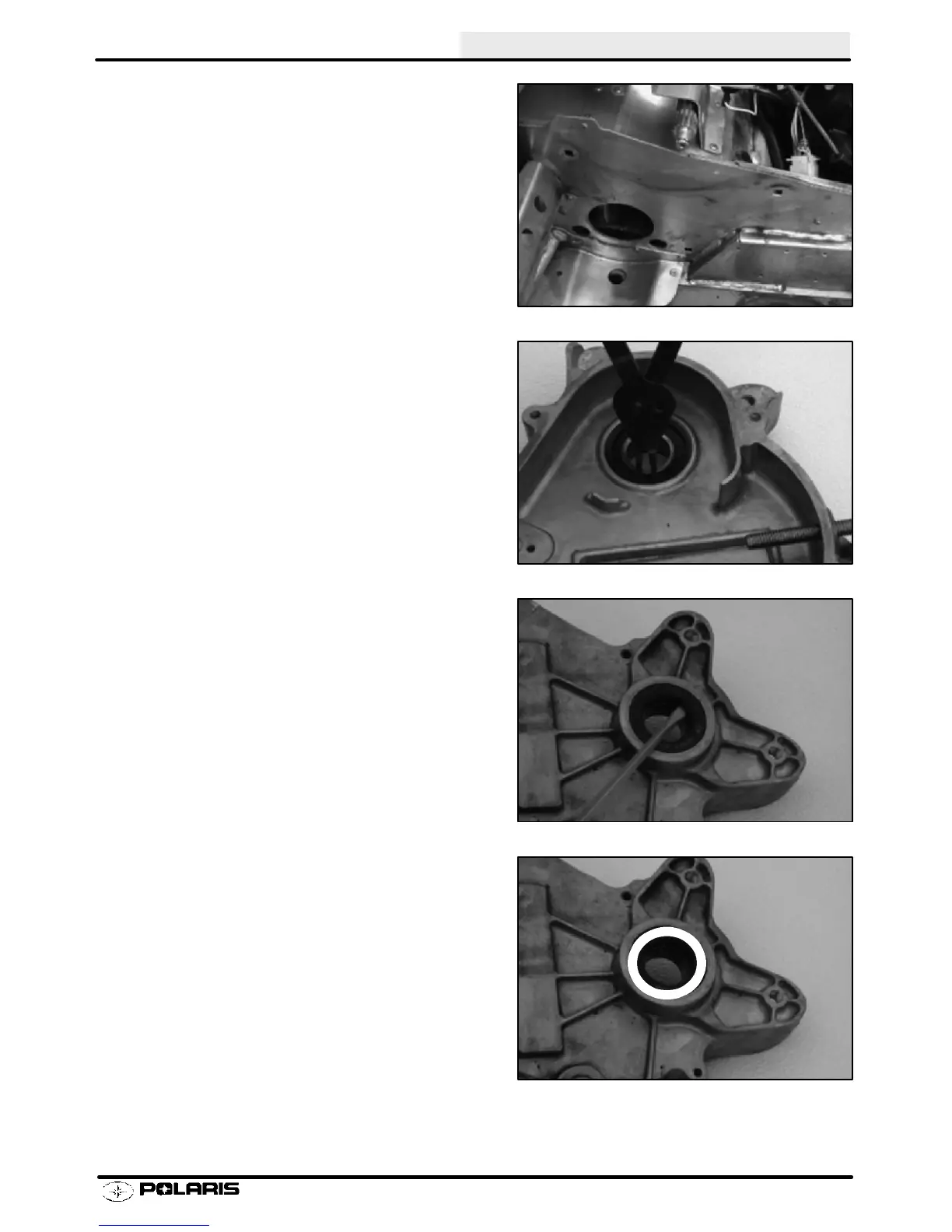

Chaincase Removal, Cont.
8. Remove three (PRO X has four) chaincase to bulkhead
attaching nuts and bolts. The front bolt is a through bolt,
rear and bottom bolts are carriage bolts.
NOTE: On some machines it may be necessary to remove
the rear exhaust bracket prior to lifting chaincase or remov-
ing drive shaft assembly.
9. Remove O-Ring, seal sleeve and brake disc by tapping
on jackshaft end with a soft face hammer.
10. Remove chaincase.
Chaincase Bearing Removal
1. Remove bearing retaining snap rings.
2. Pry out old seal from back side of chaincase.
3. Press out old bearing from side shown (seal side). If
bearing appears tight, use heat to expand chaincase
bore. Always press bearing toward snap ring side of
chaincase when removing. Inspect chaincase for any
damage and replace if required.
