STEERING / FRONT SUSPENSION
6.10
Torque Application List
Due to the special grade bolts and nuts required for specific applications, observe the following torque values in
the areas specified. Refer to exploded views for torque values and orientation of components and fasteners.
440 Pro X Fan, 440 / 600 / 700 / 800 EDGE Pro X

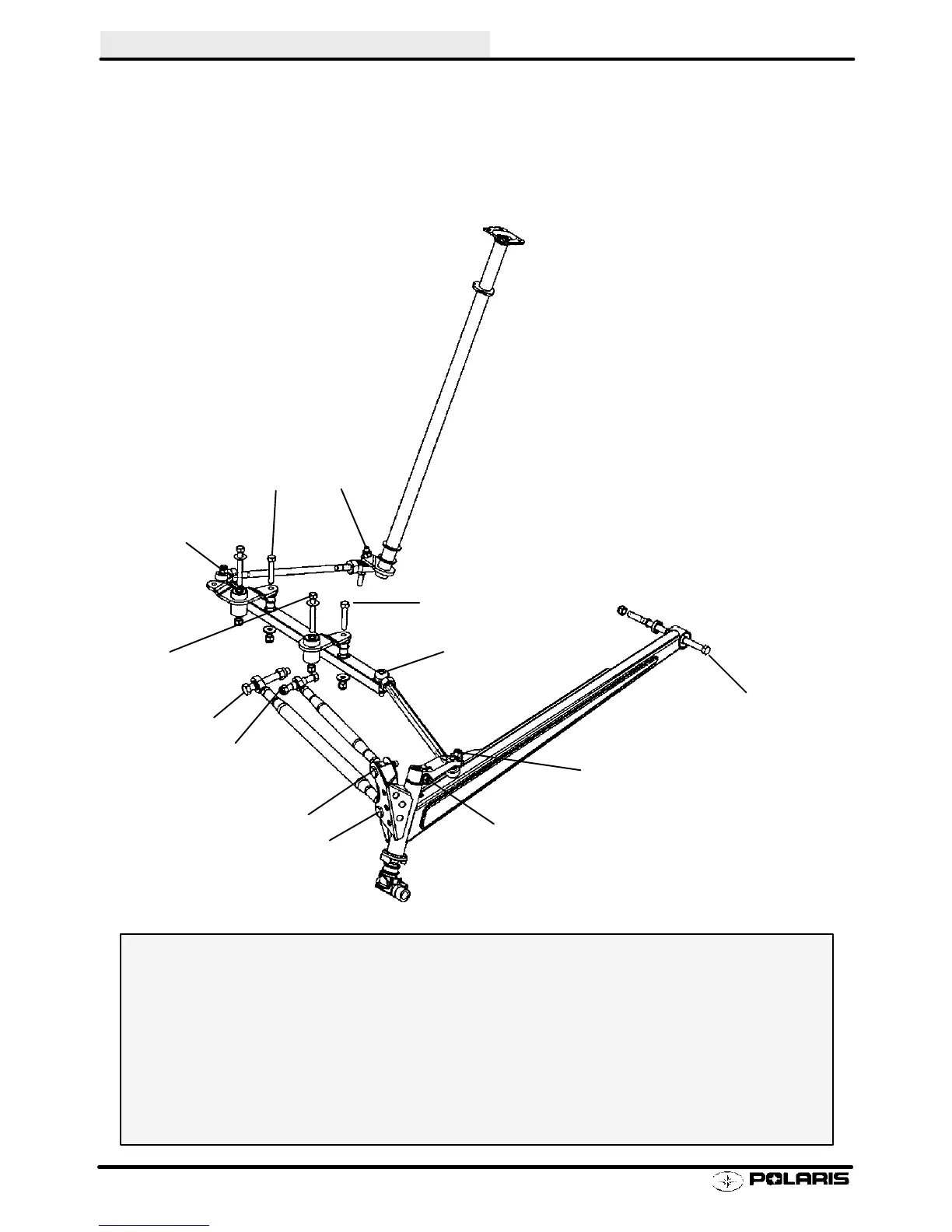

Illustration depicts proper orientation of rod ends and bolts on steering components.
Torque Specifications
A 16--20 ft lbs(22--28Nm)
B 28-30 ft.lbs (38-41 Nm)
C 35-40 ft.lbs (47-54 Nm)
D 55-65 ft.lbs (61-90Nm)
E 90--100 ft.lbs (124--138 Nm)
Apply Premium All Season Grease, PN2871322 (3oz.), to all grease zerks located on suspension
assemblies.
z Replace locking fasteners if removed.
C
B
B
E (Lower Rod)
D (Upper Rod)
B
D (Upper Rod)
E (Lower Rod)
B
B
B
A
A
