REAR SUSPENSION/TRACK/TRACTION
7.2
Suspension Torque Specifications
3/8s suspension mounting bolts 35 - 40 ft. lbs. (48 - 55 Nm)...............................
7/16s suspension mounting bolts (PRO X) 55 - 60 ft. lbs. (76 - 83 Nm)......................
Shock rod bolts (do not over torque) (PRO X) 25 ft. lbs. (34.6 Nm)...................
Xtra-10 and Edge Rear Track Shock Upper Pivot Torque 25 ft.lbs (34.6 Nm).........
Shock rod bolts (do not over torque) 35 ft. lbs. (48.4 Nm)...........................
* Shock rods must pivot freely after torquing
Rear Suspension Specifications
Model Rear
Suspension
Front
Track
Shock
PN
Front
Track
Shock
(Type)
Front
Track
Shock
Spring
PN*
Front
Track
Shock
Spring
Rate
(lb./in.)
Rear
Track
Shock
PN
Rear
Track
Shock
Desc.
Torsion Spring
Part Number*
Left / Right
Torsion Spring
Diameter / Angle
(Rear Shock
Spring Rate)
Pro X Fan Pro X 7042205 Ryde FX
IFP
7041870 190#/in 7042184 Ryde FX
IFP res
7042101/7042102 .347(sq.
)
77q
440 Pro X Pro X 7042178 Walker
Evans IFP
res
7041671 160#/in 7042179 Walker
Evans IFP
res
7042101/7042102 .347(sq.
)
77q
600/700/800
Pro X
Pro X 7042214 Ryde FX
IFP res
7041671 160#/in 7042213 Ryde FX
IFP res
7042157/7042158 .359(sq.
)
77q
*All springs shipped as service parts are black. You must add a suffix of “-067” to spring part number when ordering

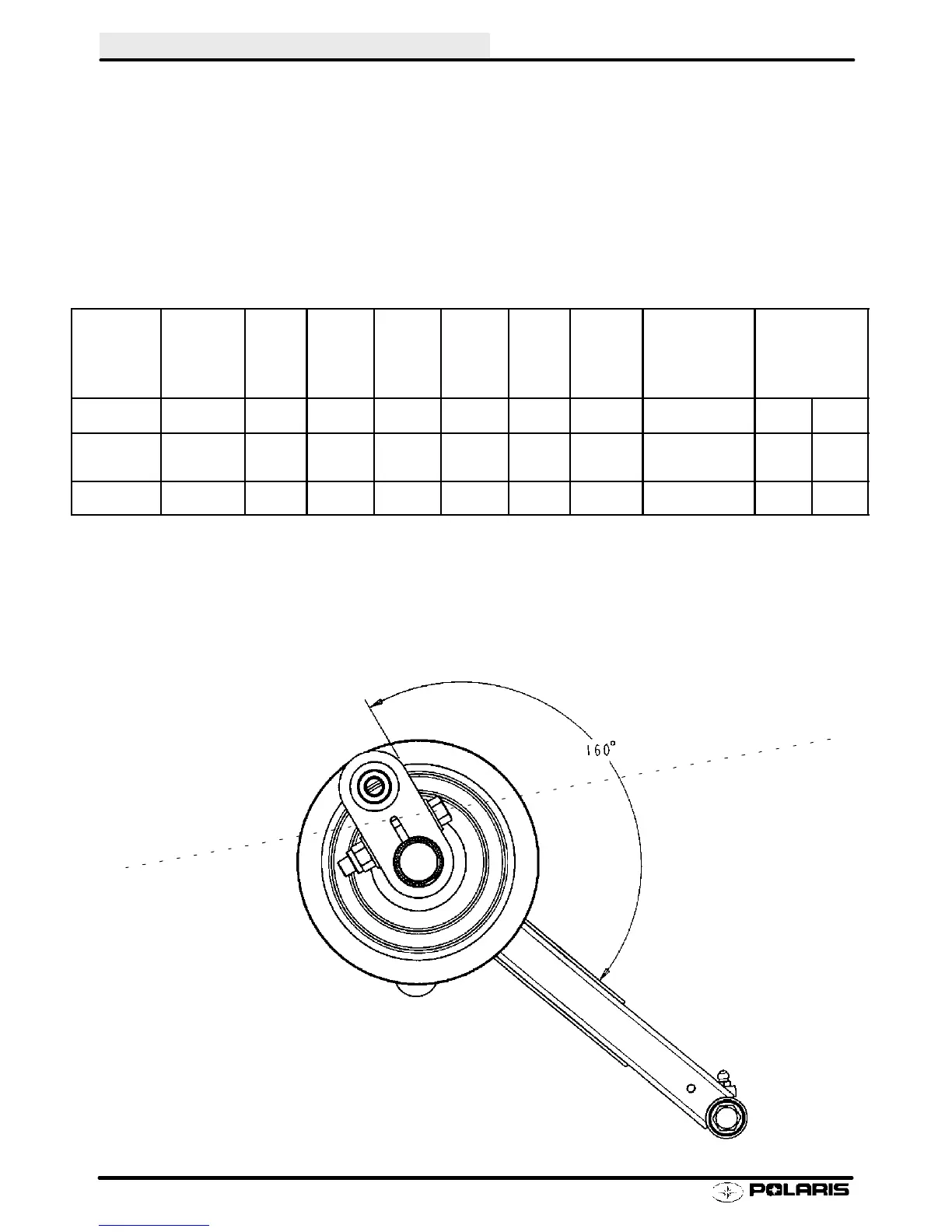

Rear only Xtra Travel Arm orientation
Tunnel Line
