CARBURETION
3.17

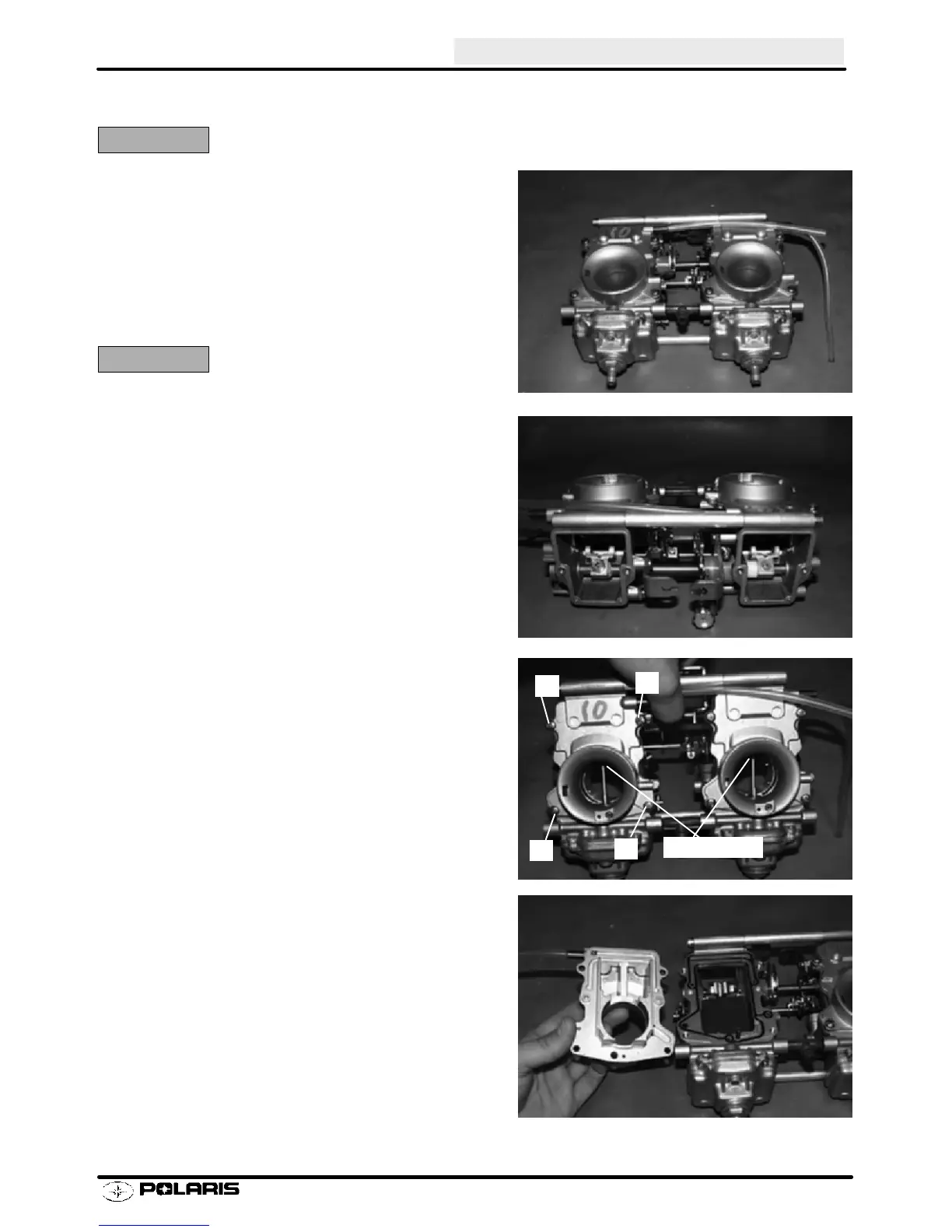

Mikuni TM-38 / TM-40 Carburetor Service
CAUTION:
Wear eye protection when using compressed air or cleaning
solvents. Review all fuel system warnings found on page
3.1 before proceeding.
Carburetor Removal, Disassembly, and Inspection
1. Remove carburetor rack from engine. Before
disassembling, clean outside of carburetor thoroughly
with solvent.
CAUTION:
Do not use compressed air to dry at this time. The float
chamber could become pressurized resulting in damage to
the floats or inlet needle and seat. Do not soak carburetors
in carb cleaner. Clean only with aerosol cleaner.
2. Remove top caps.
3. Remove four screws on funnel.
4. Turn throttle shaft so slide opens all the way.
NOTE: You may have to turn out slide stop screw for slide
to move farther up body.
5. With slide fully open, pull funnel out bottom first.
Open Slides
1
2
3
4
