CLUTCHING
4.14

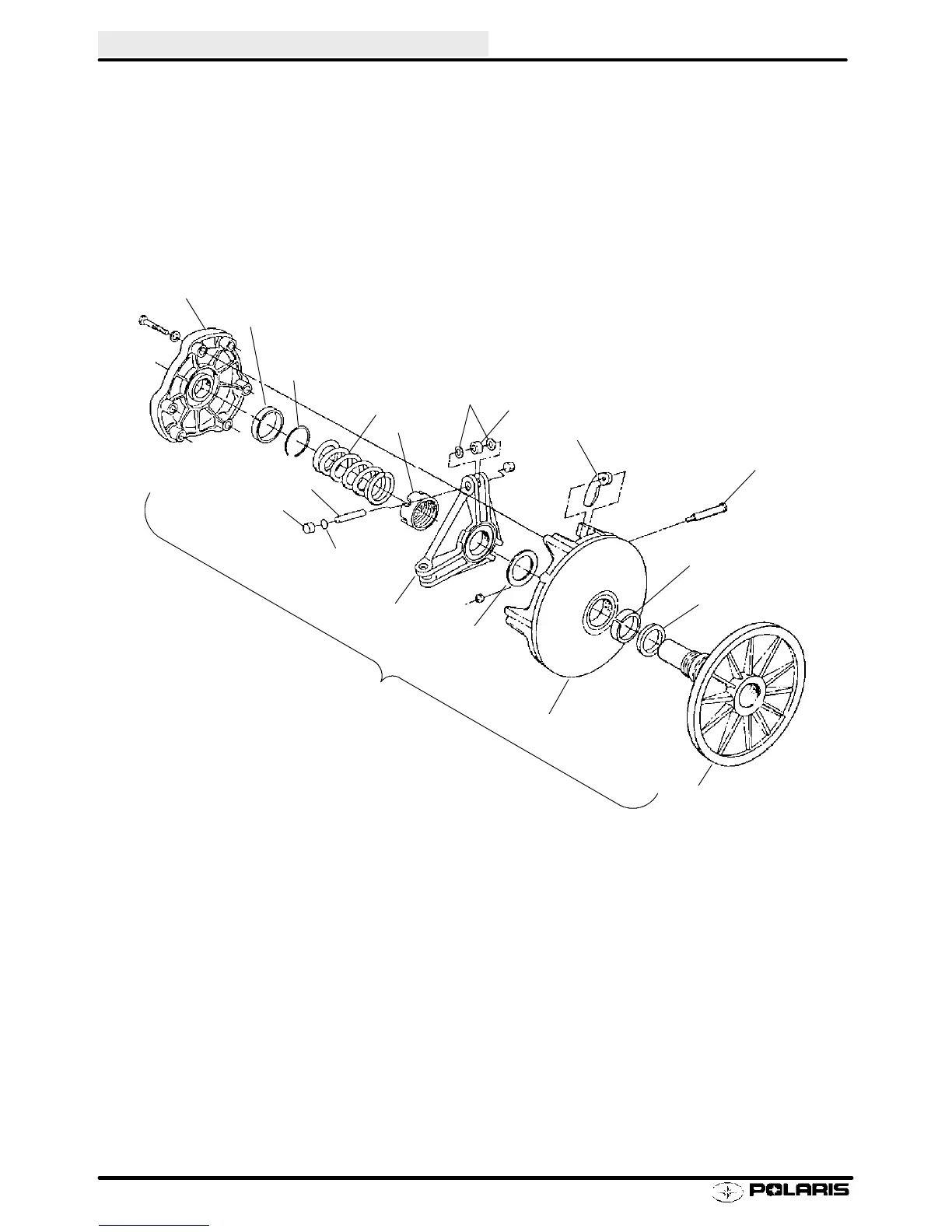

P-85 Drive Clutch Exploded View - Typical
Clutch Assembly
(Less weights, spring)
Cover
Cover Bushing
Retaining Ring
Spring
Jam Nut
Guide Button
Shim
Washer
Roller
Spacer
Weight w/Bushing
Weight Pin
Sleeve Bushing
Moveable Insert
Fixed Sheave
Moveable Sheave
Spider
Roller Pin
Do not lubricate drive clutch components
Replacement clutches come complete and balanced without clutch weights and clutch spring.
The clutch cover, spider, and sheaves cannot be purchased separately as replacement parts.
