CLUTCHING
4.25

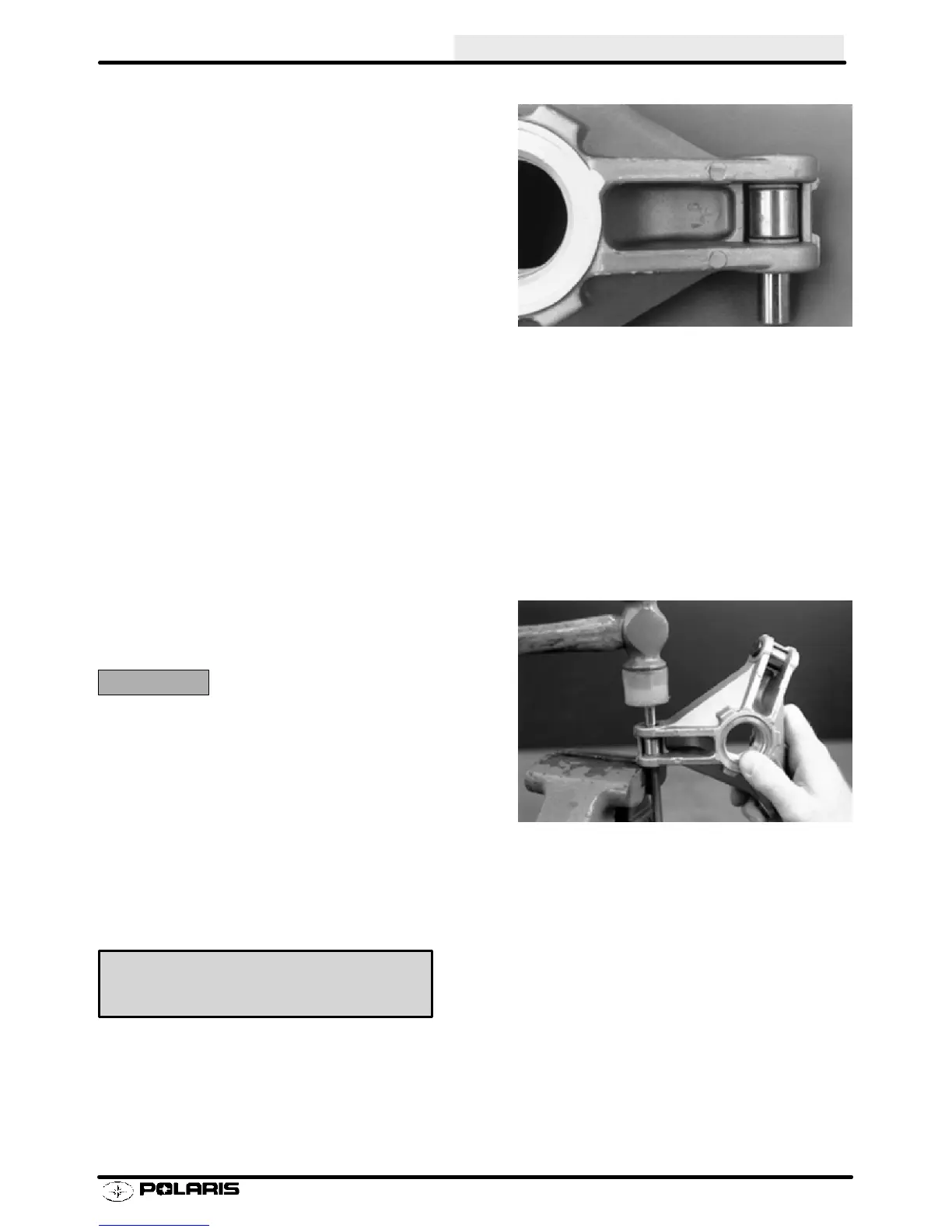

Roller Installation, Cont.
3. Place roller on pin as it protrudes from first land.
4. Place a second washer on other side of roller.
5. Install service tool.
6. Place spider on a vise anvil and drive roller pin
through to second land of spider.
CAUTION:
Use care to start the pin straight. Aluminum burrs could
pass through into the roller bushing causing it to bind and
stick. Also use care to make sure the roller remains
aligned when the pin is driven through. The roller bushing
could be damaged causing premature wear and roller fail-
ure.
Spider Button Shimming
1. Determine how many shims are to be used.
NOTE: A shim kit is available which contains an assort-
ment of shims, including .002s, .005s, and .010s.
Shim Kit PN 2200387
