CLUTCHING
4.8
Driven Clutch Springs (Polaris Clutch)
Part Number Description
7041198 Red
7041782 Black-5 Coil
7041501 Gold-6 Coil
7041296 Blue
7041499 Silver
7041646 Silver/Blue
7042022 Blue/Orange
Driven Clutch Spring Data
Part Number Description Wire Dia. Free
Length
Load at
2.50s (lbs.)
Moment at
67q Rota-
tion (in #s)
Load at
1.375s
(lbs.)
Moment at
150q Rota-
tion (in #s)
7041198 Red 0.170 4.00 21 38 45 85
7041296 Blue 0.192 3.43 29 60 64 133
7041499 Silver 0.188 3.45 25 53 54.5 119
7041646 Silver/Blue 0.183 3.45 42 53 75 119
7041782 Black 0.177 3.60 24 44 49 99
7041501 Gold 0.188 3.60 24 44 49 99
7042022 Blue/Orange 0.192 3.50 56 60 90 133
67q 150q

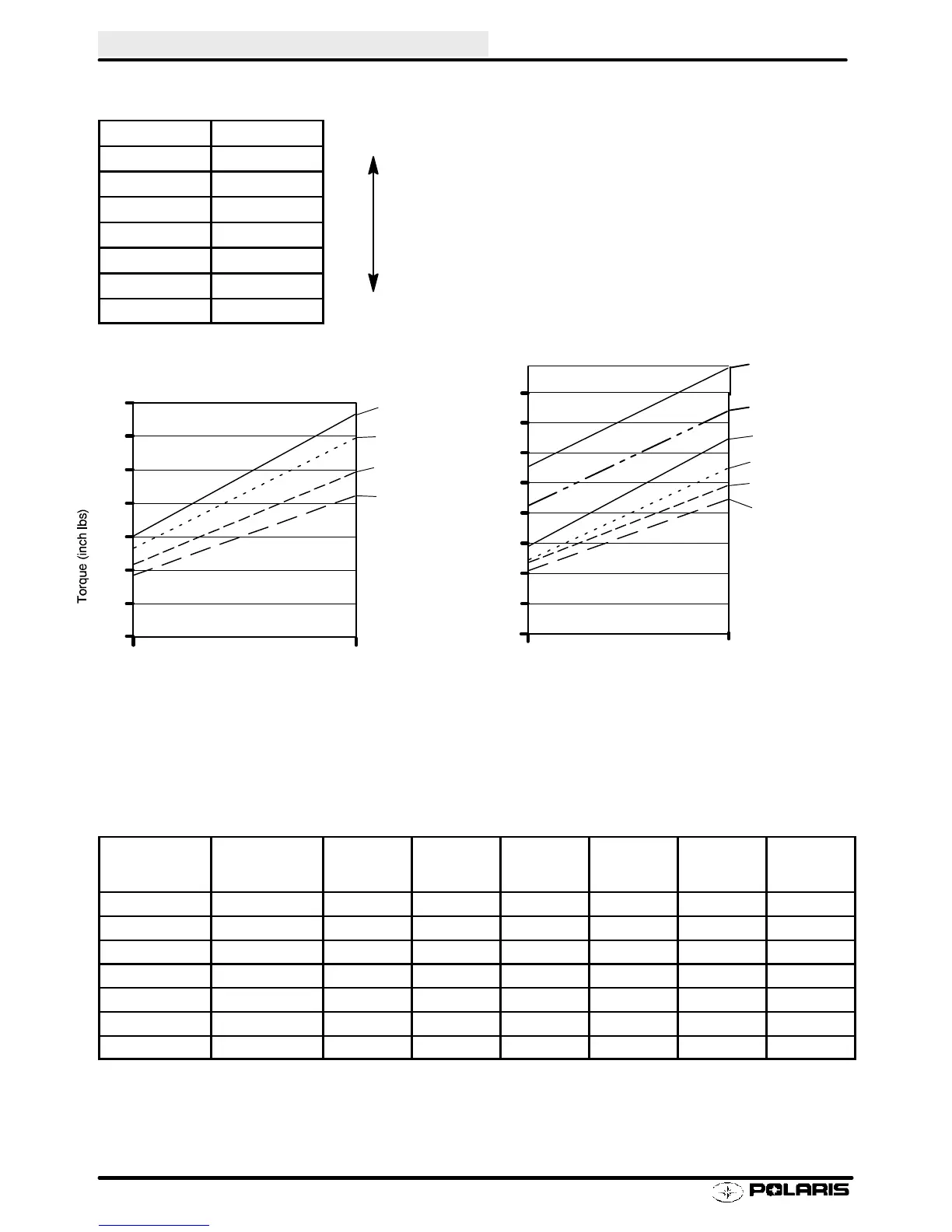

Driven Spring Charts
Blue
Silver
Gold
and Black
Red
0
20
40
60
80
2.5s
1.375s
Compression Distance (in)
Load in Pounds
0
20
40
60
80
100
120
140
10
30
50
70
Blue and
Blue/Orange
Silver or
Silver/Blue
Gold and Black
Red
Degrees of Rotation
Silver/Blue
90
Blue/Orange
