ENGINE

2.10

Engine Disassembly - 440 Pro X Fan Engine

NOTE: Inspect all parts for wear or damage during disassembly. Replace all seals, O-rings,

and gaskets with Genuine Polaris parts during assembly.

Disassembly

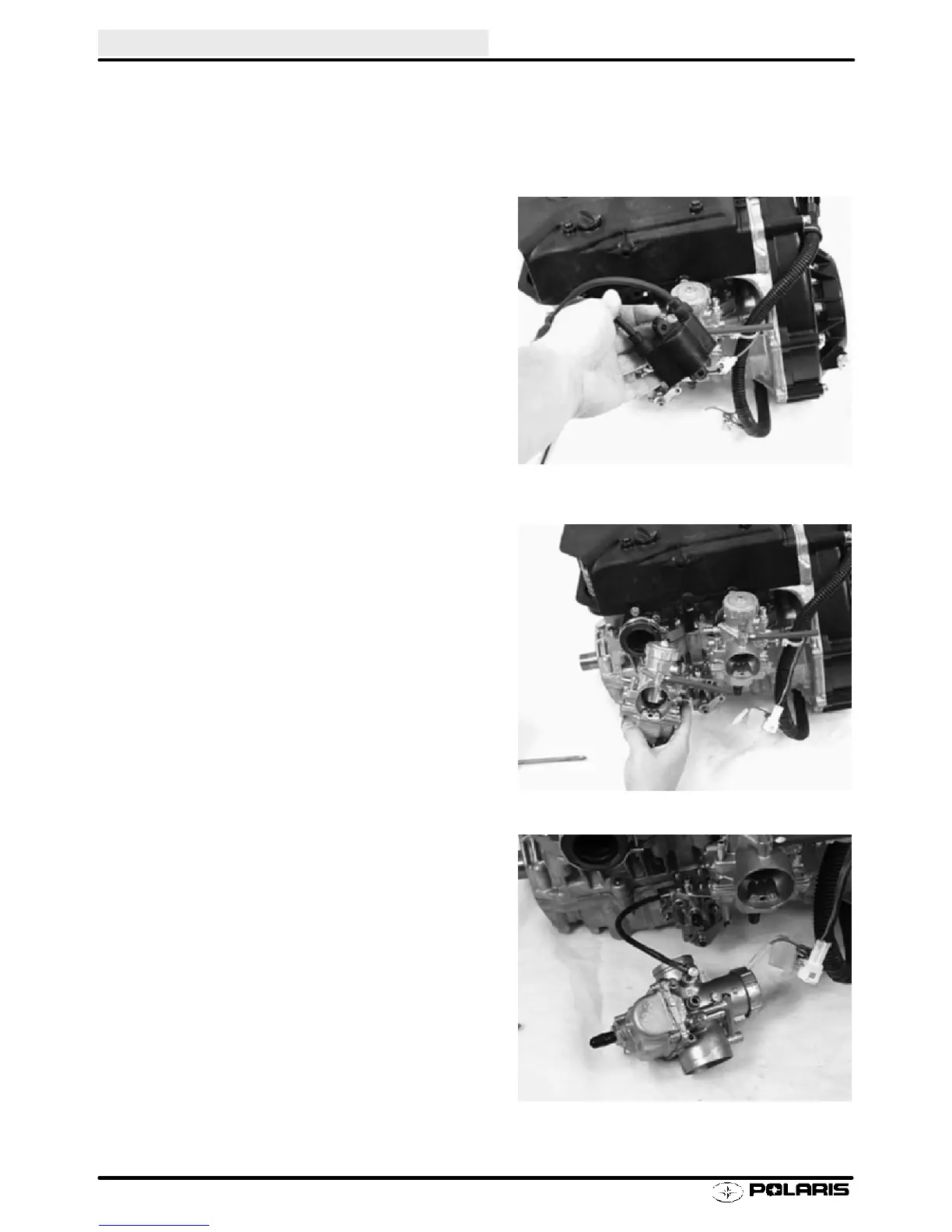

1. Remove coil pack from air box, and

disconnect it from the wiring harness.

2. Loosen carburetor clamps and remove each

carburetor.

3. Using a pliers, detach the oil lines from the

carburetors.
