Polaris 2003 Pro X

To Next Page

To Previous Page

CLUTCHING

4.5

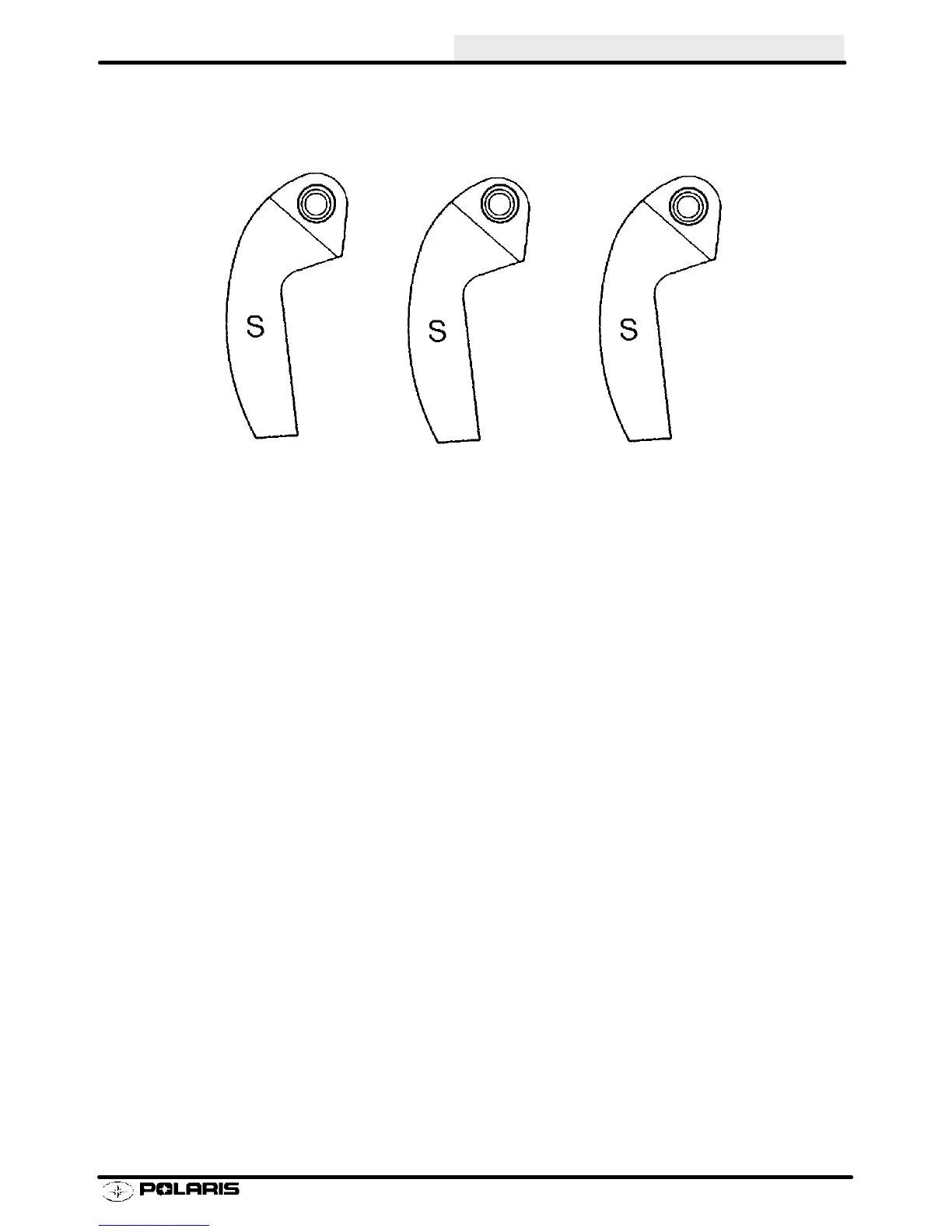

Drive Clutch Weight Identification - Actual Size

43H

S43H

Gram Weight:43 r1

PN 1321849

S45H

Gram Weight:45 r1

PN 1321850

45H

47H

S47H

Gram Weight:47 r1

PN 1321851
