ENGINE
2.8
Variable Exhaust System (V.E.S.) - 440 Pro X
CDI Box
Solenoid
Open
Solenoid
Open
Wire Wire
Yellow Wire to
Wiring Harness
Balance Tube
T-Fitting
T-Fitting
Hose
Hose
Spring
Bellows
Outlet Hole
Inlet Hole
from Cylinder
Exhaust
Valve
Inlet Hole
from Cylinder
Spring
Bellows

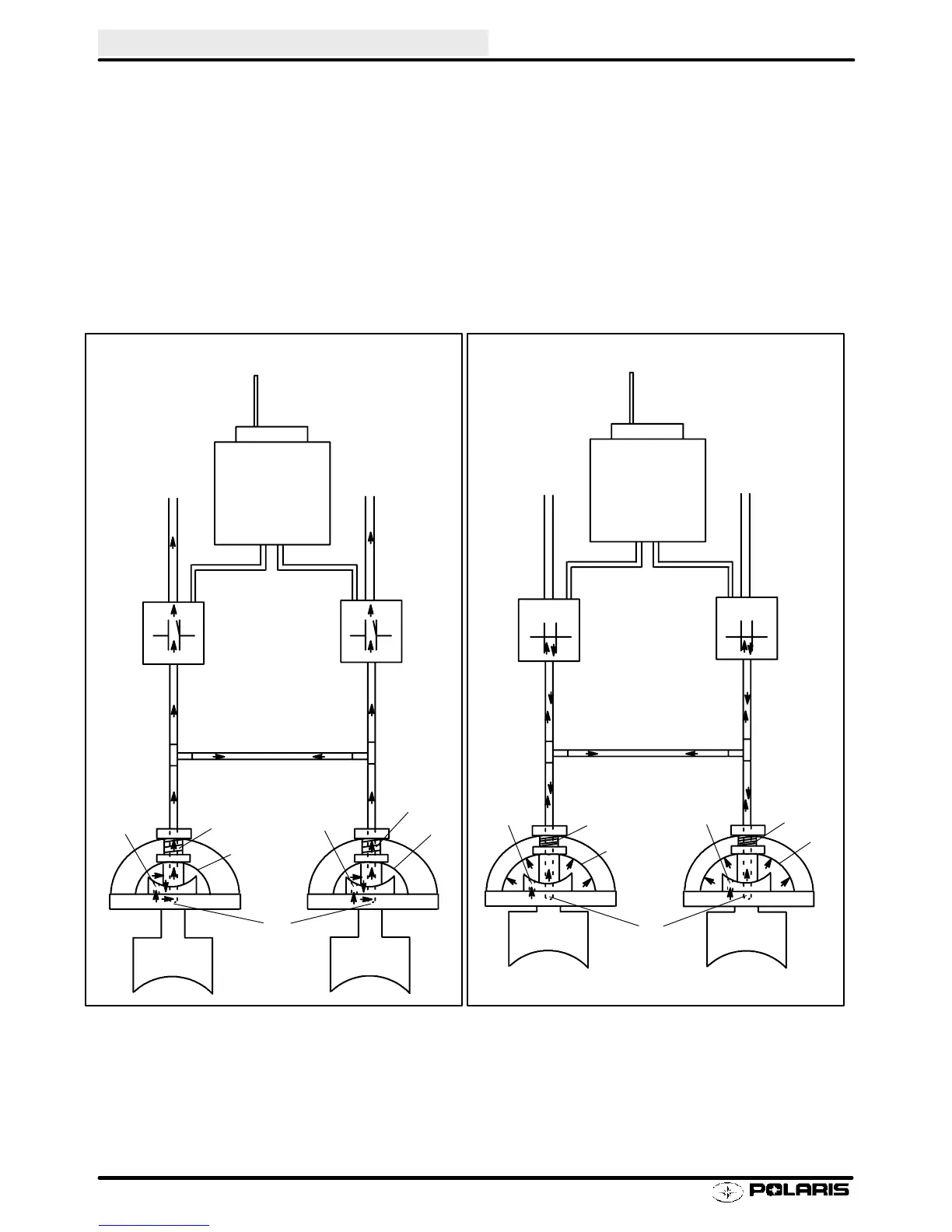

440 Pro X Variable Exhaust System:
The exhaust valve system on the new 440 Pro X is electronically controlled by solenoids. Pressure from
the cylinders is routed through the solenoids to the atmosphere. During this time the exhaust valves are
down. When the CDI senses 6700 RPM, it triggers the solenoids to shut off the bypassed air going to the
atmosphere. Pressure then builds inside the exhaust valve bellows, causing the valves to fully open.
When RPM drops below 6700, the solenoids open to allow air to bypass through to atmosphere and the
exhaust valves close.
CDI Box
Solenoid
Closed
Solenoid
Closed
Wire
Wire
Yellow Wire to
Wiring Harness
Balance Tube
T-Fitting
T-Fitting
Hose
Hose
Spring
Bellows
Inlet Hole
from Cylinder
Exhaust
Valve
Spring
Bellows
Outlet Hole
Inlet Hole
from Cylinder
Below 6700 RPM
Above 6700 RPM
Exhaust Valves Fully Open
Exhaust Valves Closed
Exhaust
Valve
Exhaust
Valve
