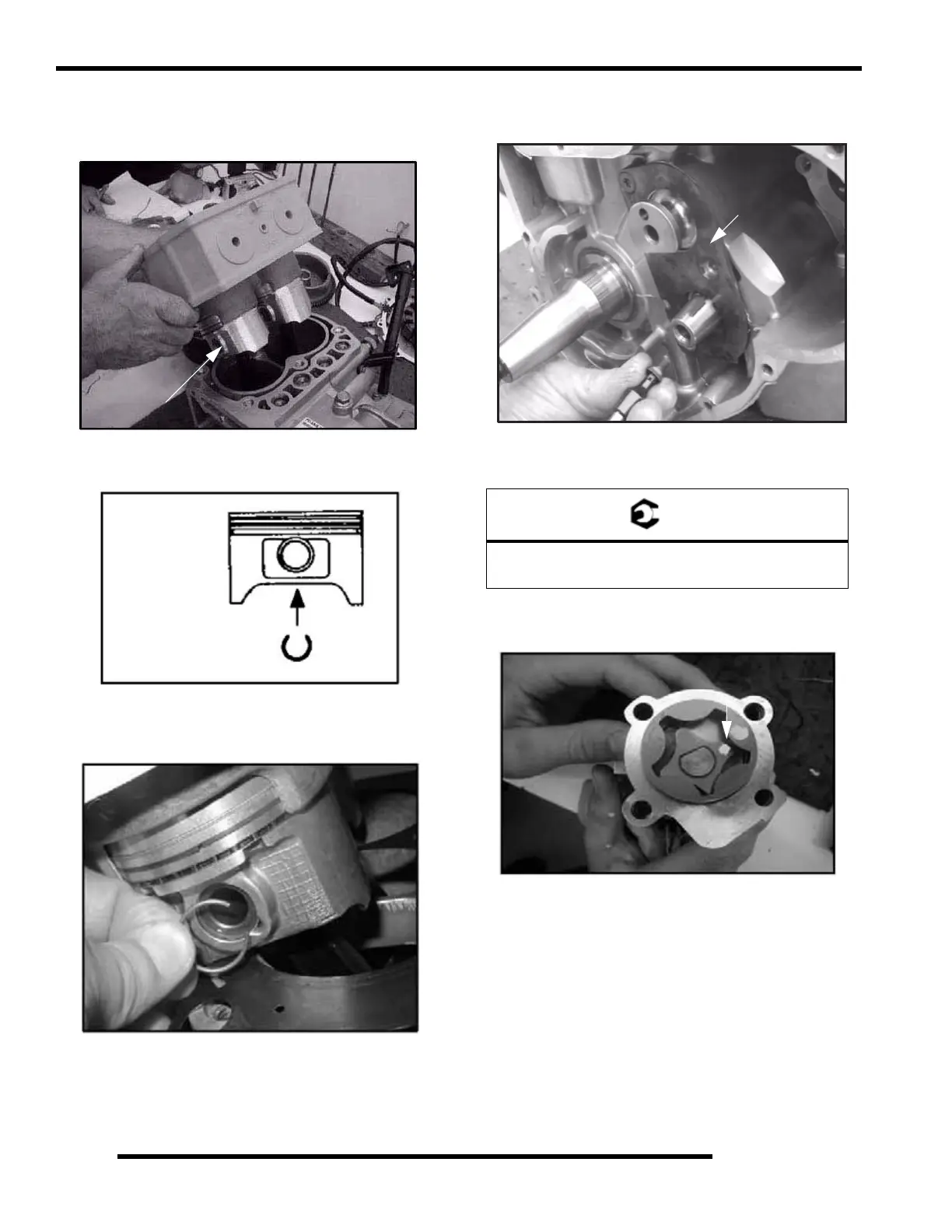

ENGINE
14. Position cylinder and piston assemblies onto the connecting
rods and push the piston pins through the piston and
connecting rods.
15. Install the piston pin circlips (F). The circlip ends should
be installed at the 12 O'clock position.
NOTE: While installing in piston pins, cover all
engine passages. The clip could fall into the engine
during installation.
16. Install camshaft thrust plate (G) with new bolts. Torque
bolts to specification.
NOTE: New bolts have patch lock on the threads
and do not require Loctiteâ„¢.
17. Assemble rotors as marked when disassembled. Use a
cleaner to remove the marks previously made on the rotors.
18. Apply assembly lube or oil to the rotors on the oil pump
shaft.
Push In Piston Pins
Piston Pin Cirlcip (F) in
12 O’clock position
= T
Thrust Plate Screw Torque:
115 ± 12 in.lbs. (13 ± 1.35 Nm)
G
Line Up Marks
