10.26
ELECTRICAL
FUSES/CIRCUIT BREAKER

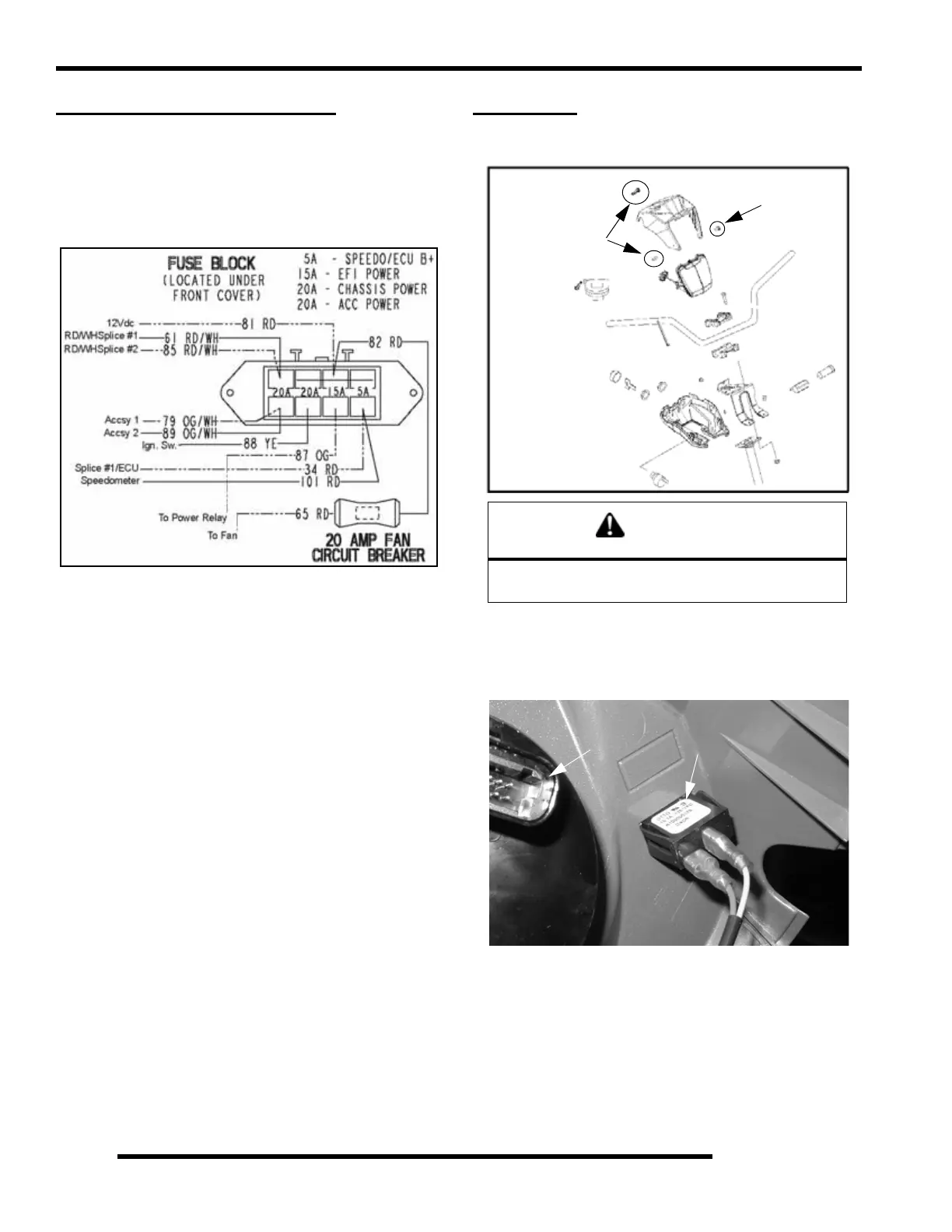

Operation
The fuse panel, located next to the ECU, assists with component
protection such as the Instrument Cluster/ECU, EFI system,
Chassis Power and Accessories.
A 20-amp circuit breaker protects the fan circuit.
LIGHTING
High Beam Headlight Bulb Replacement
1. Remove three Phillips screws on the headlight pod.
2. Lift pod cover up.
3. Disconnect instrument cluster harness (A) and work light
switch (B).
CAUTION
Do not service while headlight is hot. Serious burns
may result. Protect lamp during install.
Remove 3 Screws
A B
