Sportsman Rear Pad Removal

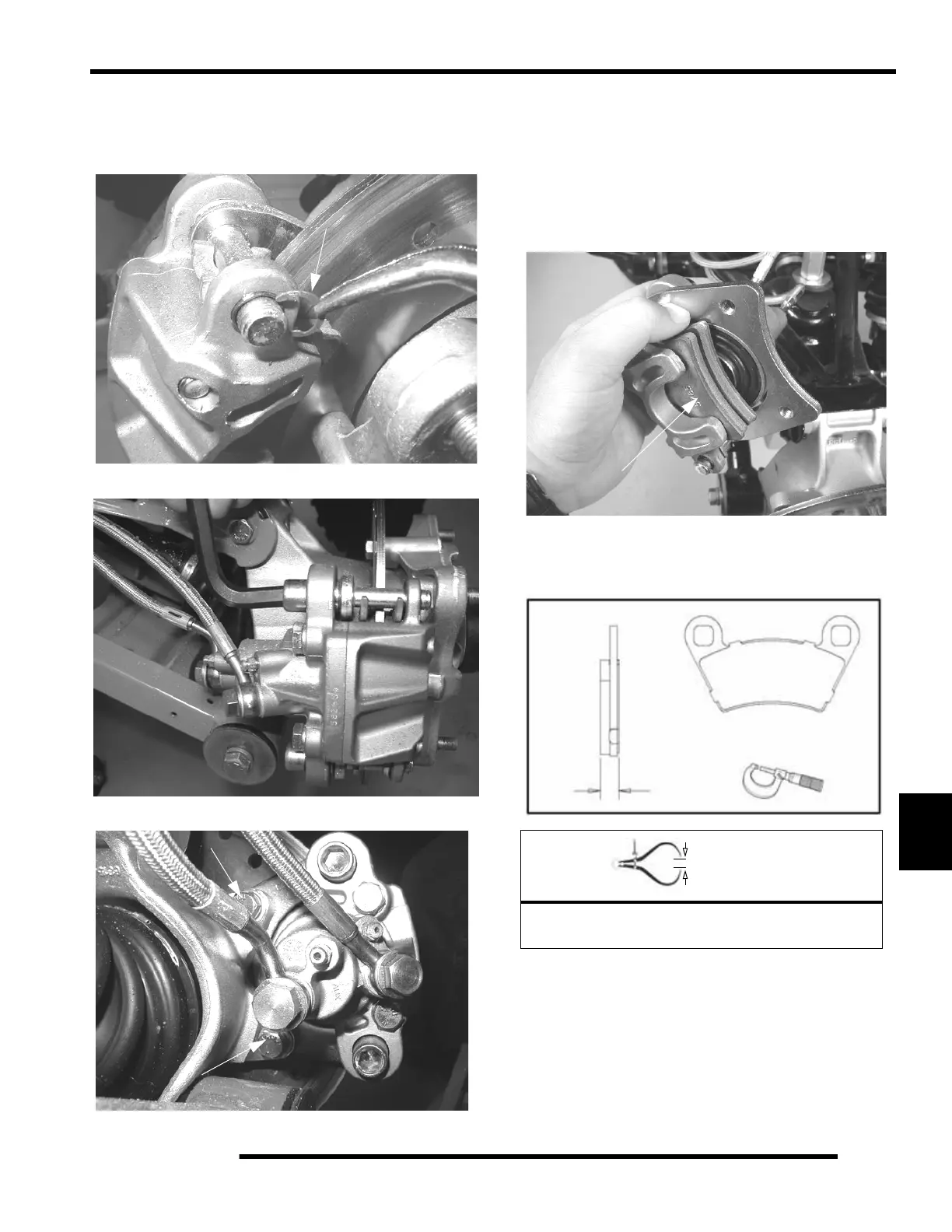

1. Support the machine. Remove the rear tire.
2. Remove the slide pin clips from the slide bolt.
3. Loosen the slide pins with a hex wrench.
4. Remove caliper mounting bolts and lift caliper off of disc.
NOTE: When removing caliper, be careful not to
damage brake line. Support caliper so as not to kink
or bend brake line.
5. Push caliper pistons into caliper bore slowly with pads
installed.
6. Remove the caliper slide pins and remove the brake pads
from the caliper.
7. Clean the caliper with brake cleaner or alcohol.
8. Measure the thickness of the pad material. Replace pads if
worn beyond the service limit.
= In. / mm.
Rear Brake Pad Thickness
Service Limit: .180” (4.6 mm)
Remove Rear Pads
Measure
Thickness
