CLUTCH SYSTEM
12. Inspect the bearing for wear. Spin the bearing, if the
bearing does not spin smoothly replace as needed. To
remove the bearing, simply press the bearing from the shaft.
13. Inspect the bearing for wear. Spin the bearing, if the
bearing does not spin smoothly replace as needed. To
remove the bearing, simply press the bearing from the shaft.
14. Inspect the cam assembly (helix) bushing for wear. If the
bushing is worn or the shaft does not fit snug into the
bushing, replace the cam assembly (cover).
DRIVEN CLUTCH BUSHING REMOVAL/
INSTALLATION
NOTE: Special Tool Required: EBS CLUTCH
BUSHING REMOVAL AND INSTALLATION
NOTE: Bushings are installed at the factory using
Loctite
 609. In order to remove bushings it will be
necessary to apply heat evenly to the area around
each bushing. Clean all residual Loctite
 from
bushing bore prior to installing new bushing.
Driven Clutch Bushing Removal
1. Install main puller adapter (Item 8) onto puller.
2. Install adapter reducer (Item 9).
3. Using a hand held propane torch, apply heat around outside
of bushing until tiny smoke tailings appear.
4. Flip sheave over so bushing faces downward and install
onto puller.
5. Install bushing tool (Item 2).

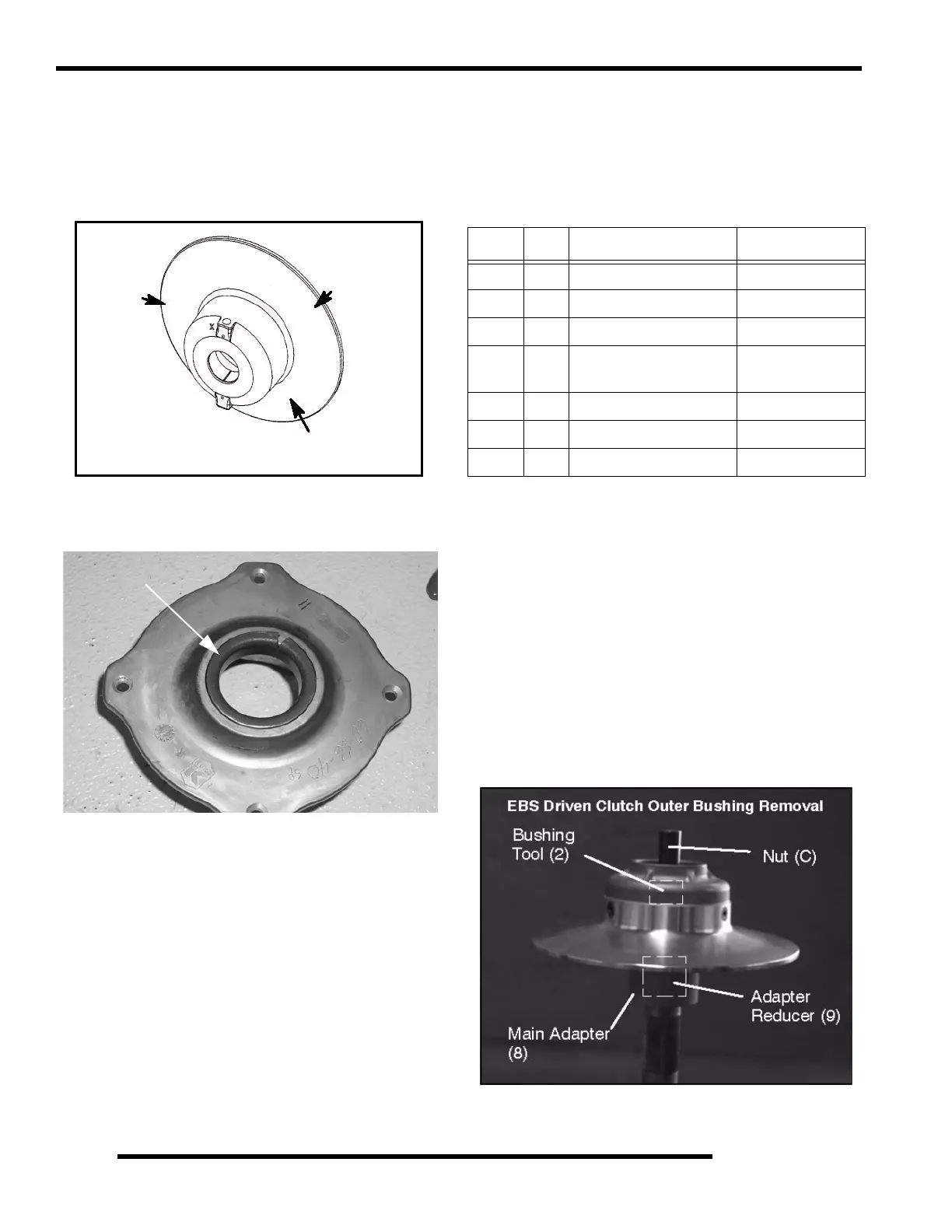

Inspect Sheave Surface
Inspect Bushing
Table 6-1:
ITEM QTY PART DESCRIPTION PART #
A, B 1 EBS Puller Tool 5132027
C 1 EBS Puller Nut 5132501
D 1 EBS Main Adapter 5132029
E1
EBS Bushing Removal
Tool Instructions
5132028
-- 1 Bushing Replacement Kit 2871226
-- 1 Piston Pin Puller 2870386
-- 1 Instructions 9915111
