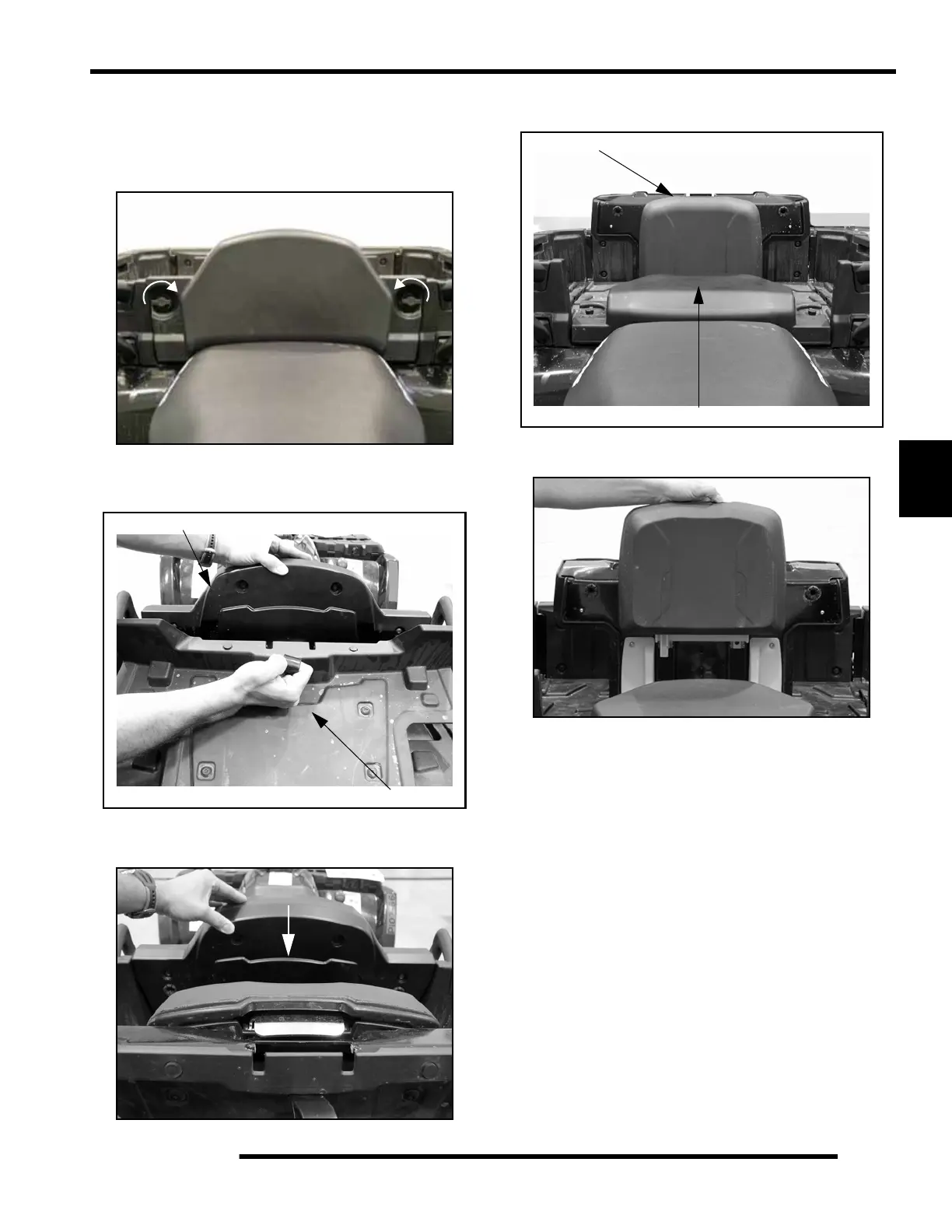

X2 Seat Operation - Configuring Cargo Box
For Passenger Riding
1. Unlatch the driver seat backrest by turning the engagement
knobs on each side in the directions shown below.
2. While pulling the backrest towards the front of the ATV,
lift up on the passenger backrest loop that is face down in
the cargo box.
3. Lift the passenger backrest up and into place, then lay the
driver seat backrest down into place
4. Fold the driver seat backrest down into place to serve as the
passenger seat bottom.
5. Lift the latch on the passenger backrest to set the proper
backrest height desired by the passenger.
A
B
Passenger Backrest
Driver Seat Backrest
A
B
Passenger Backrest
Driver Seat Backrest / Passenger Seat Bottom
