ELECTRICAL

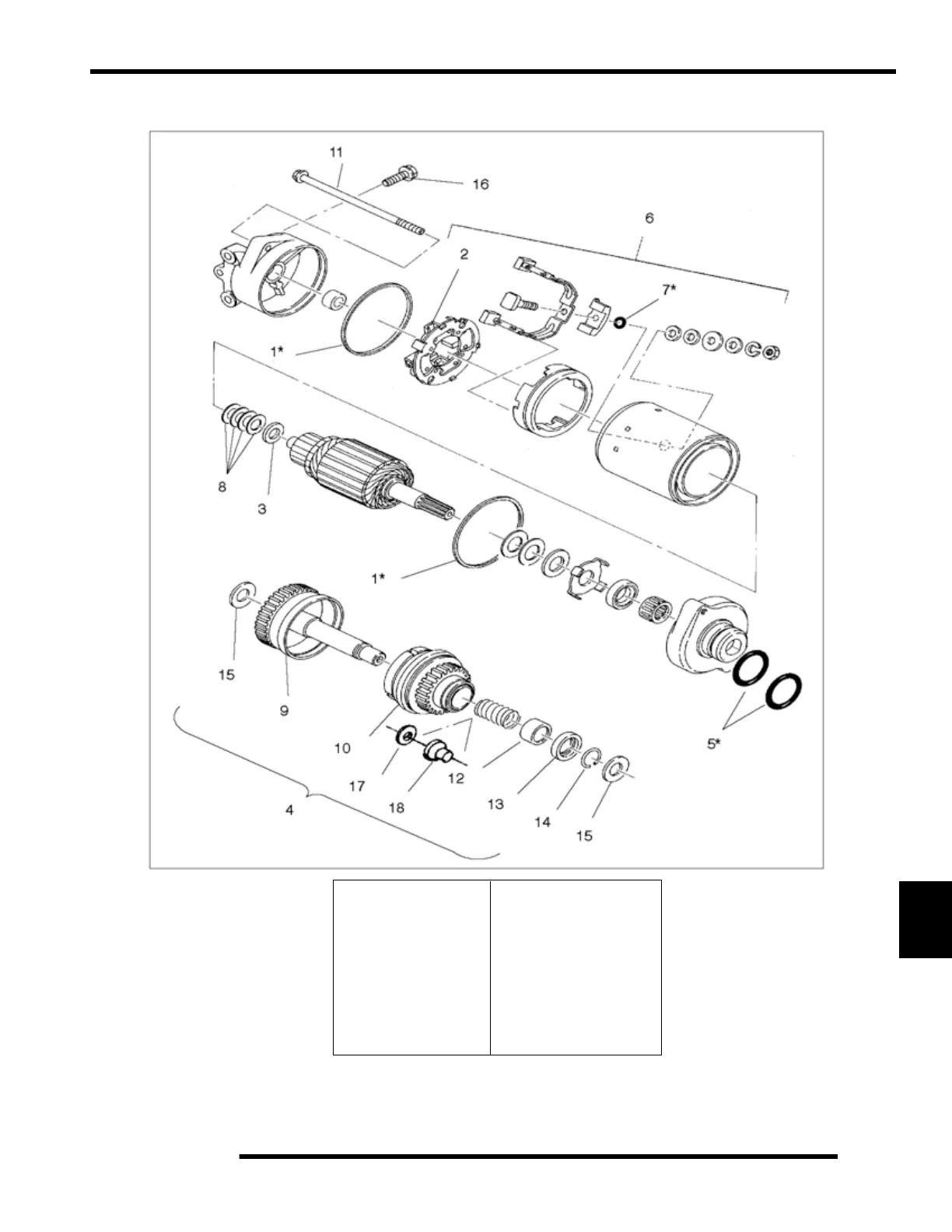

Starter Exploded View

1. Rubber Ring*

2. Brush Spring

3. Thrust Washer

4. Gear Assembly

5. O-Ring*

6. Brush Complete

7. O-Ring*

8. Thrust Washer

9. Shaft Complete

10. Gear Assembly

11. Through Bolt

12. Cover

13. Stopper

14. Snap Ring

15. Washer

16. Flange Bolt

17. Thrust Washer

18. Flange Bushing

* Indicates - Do not reuse.

Replace with new parts.
