7.36
FINAL DRIVE

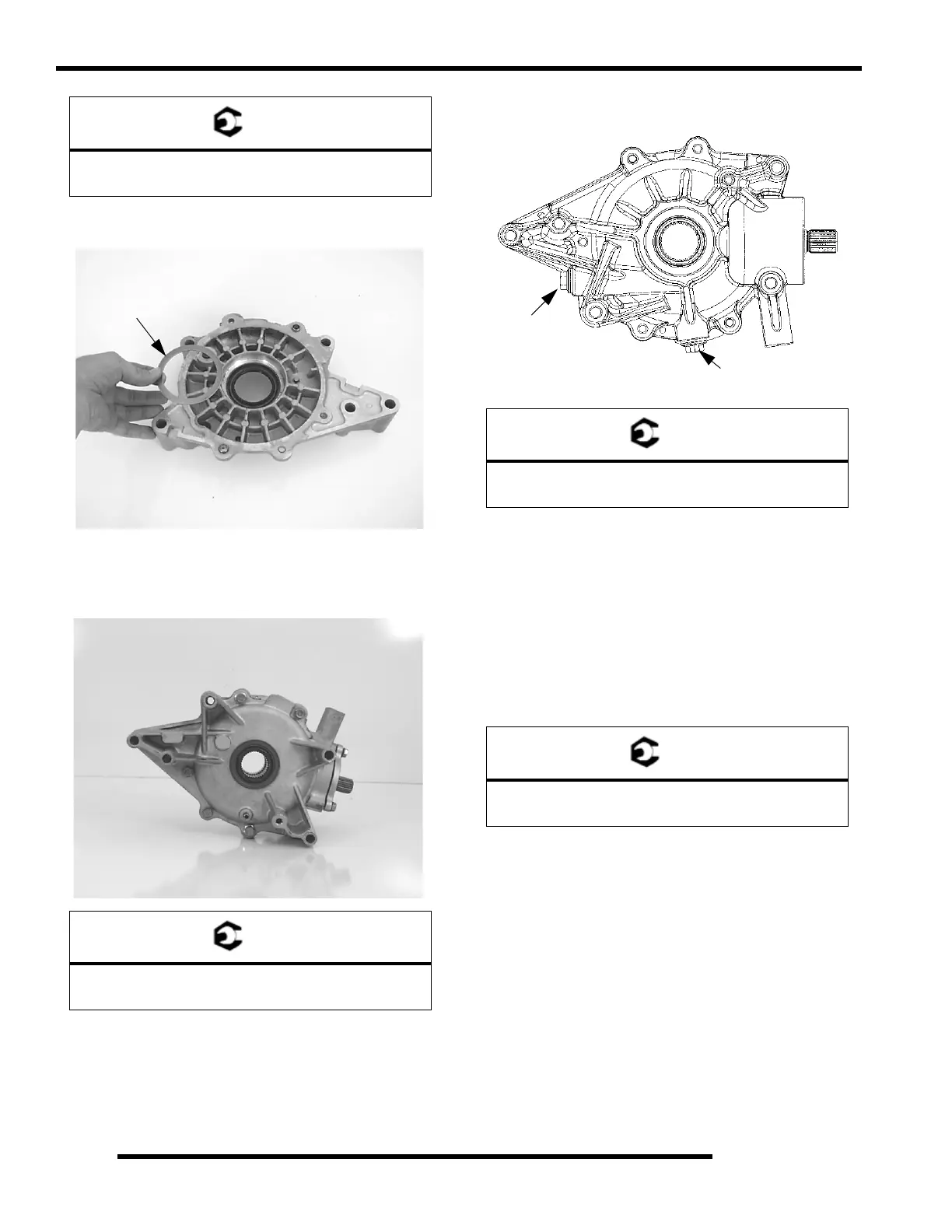

4. Install the original shim(s), thrust button, and thrust button
shims into the gearcase cover.
5. Apply Crankcase Sealant (PN 2871557) to surface of case
and install cover bolts. Install the gearcase cover onto the
gearcase housing. Torque the cover bolts in a criss-cross
pattern to specification.
6. Install the drain plug and fill plug. Replace the drain plug
washers to ensure proper sealing after filling.
Installation
1. To install the rear gearcase, reverse the removal
procedures.
2. Pre-install the propshaft onto the transmission and insert
the roll pin. While installing the gearcase, align the
propshaft and gearcase input shaft for easier propshaft
installation. Use of anti-seize compound on the shaft
splines is recommended.
3. Torque the gearcase mounting bolts to specification.
= T
Input Cover Bolt Torque:
25 ft.lbs. (34 Nm)
= T
Cover Bolt Torque:
25 ft.lbs. (34 Nm)
= T
Drain / Fill Plug Torque:
14-18 ft.lbs. (19-24 Nm)
= T
Gearcase Mounting Bolts
30 ft.lbs. (41 Nm)
Fill Plug
Drain Plug
