7.16
FINAL DRIVE
7. Remove the roller pin from the front prop shaft. Use the
Roller Pin Removal Tool (PN 2872608).
8. Remove bolts securing the bottom of housing to the skid
plate frame. Bolts and fluid drain plug are accessible
through the skid plate.
9. Remove vent line.
10. Remove the front gearcase from left side of frame, pulling
both the remaining CV shaft and propshaft from the
gearcase. Replace the circlips on the CV shaft ends prior
to reassembly.
Gearcase Installation
1. To install gearcase, reverse removal procedures. Use new
roll pin in front prop shaft.
2. Torque mounting bolts in skid plate to 30 ft.lbs. (41 Nm).
3. Add the proper lubricant to the front gearcase. Check drain
plug for proper torque. Refer to Chapter 2 for fluid fill and
change information.

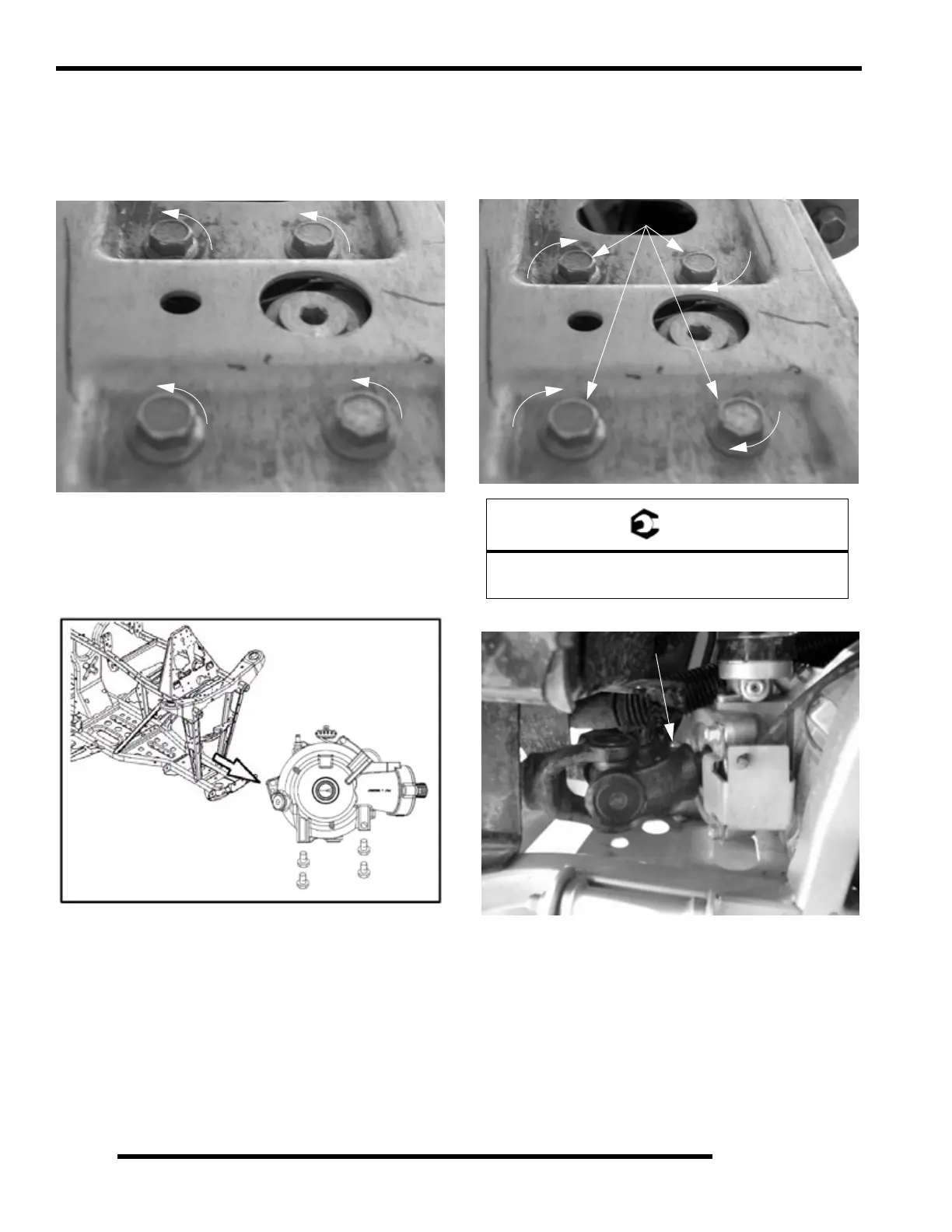

Front Gearcase Removal
Remove 4 Bolts
= T
Gearcase Mounting Bolt Torque:
30ft.lbs. (41 Nm)
30ft.lbs. (41 Nm)
New Roll Pin
To Next Page
