7.23
FINAL DRIVE
7

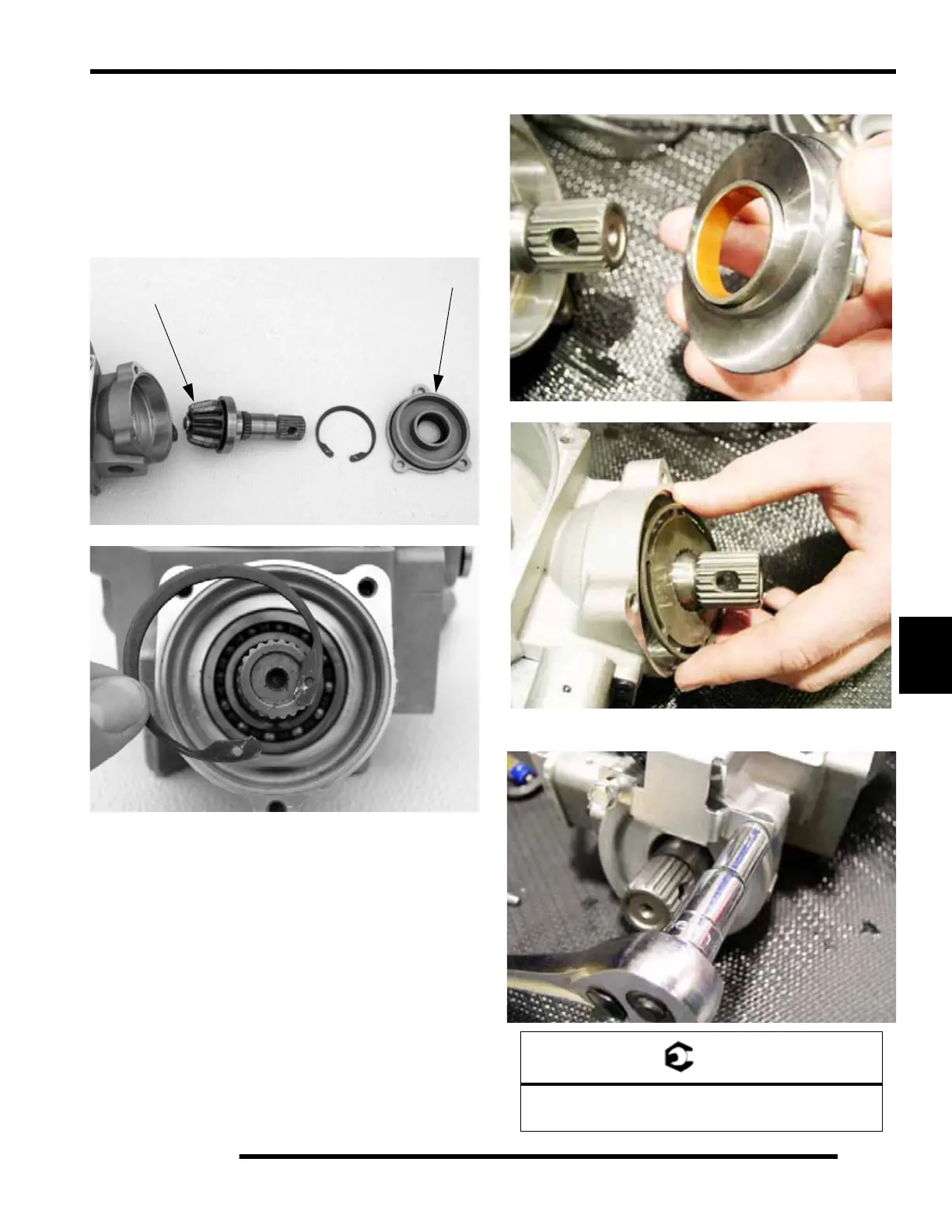

Assembly
1. Thoroughly clean the gearcase components before
beginning reassembly.
2. Install a new seal in the main gearcase halve.
3. Install the input shaft assembly. Install the pinion gear/
bearing assembly (1). Install a new seal and o-ring the
input shaft cover (2) prior to reassembly.
4. Install the snap ring retaining the input shaft assembly.
5. Install the eccentric cam assembly (1).
6. Install the splined armature plate (1).
7. Install the input shaft cover assembly, bolts and bracket.
Torque to specification.
1
2
= T
Input Cover Bolt Torque:
7-11 ft. lbs. (9.4-14.9 Nm)
1
1
